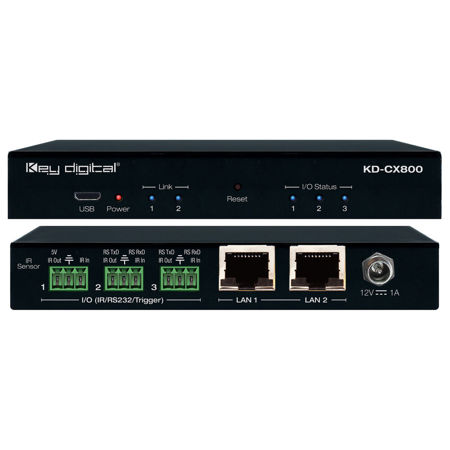

Key Digital KD-CX800 Control Interface with IR & RS232 Over IP Routing

KD-CX800 is a control over IP device with three multi-function control ports supporting bi-directional RS-232, IR out (emitter), IR in (sensor or hardwire), voltage trigger, or voltage sensor.

KD-CX800 is very flexible, with four supported modes of use:

Mode 1: Control gateway for Enterprise AV Over IP system
• Enables more third-party control options than other HD Over IP systems
• Accepts commands from third-party control systems or Compass Control
• Supports generic RS-232, TCP/IP, and IR Key Digital matrix switching command strings

Mode 2: Compass Control Pro Master Controller
• Supports communication to/from licensed iOS and Android devices
• Flexible port configuration (IR, RS-232, trigger, sensor) set in Compass Navigator program
• IR learner/sensor built-in
• Supports up to two real-time bi-directional RS-232 ports
• TCP/IP device control direct from iOS controller - no ports used

Mode 3: Third-Party Control via KeyCode Open API
• Cost-effective control expansion with advanced third-party control systems
• Adds reliable hardware interface to network-based control apps
• Enables IR, RS-232, and voltage device control
• Robust API allows for bi-directional communication

Mode 4: Control Extension via IP
• Carry any supported combination of IR, RS-232, and voltage triggers over the network
• Extends control signals up to 400 ft. / 121 m. Greater distances possible with adapters.
• Supports systems with or without network switches

Control System Support:
Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all TCP/IP supported control systems via open API.
