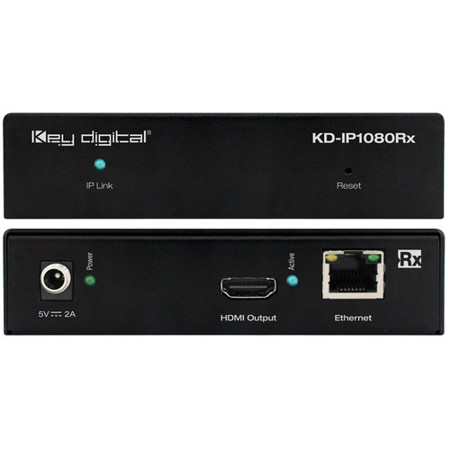

Key Digital KD-IP1080RX HDMI Over IP Full HD Receiver with PoE & Redundant Power Connection

Key Digital's Enterprise AV over IP Solutions, KD-IP1080Tx & KD-IP1080Rx, is an infinitely expandable HDMI over IP system where video inputs and video outputs may be scaled to fit any installation.

Enterprise AV over IP Solutions
Key Digital's Enterprise AV over IP Encoders and Decoders create expandable HDMI over IP systems that can be scaled to fit any commercial installation

Features

Connectivity: Can be connected through a network IP switch or point-to-point

H.264 Compression: Ideal standard for large video distribution applications

Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches

Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units

Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch

HDMI Pass-through: Tx unit support HDMI Pass-through to receive video or extract audio on the transmit side

Alternative Extension Methods: Enabled by low-bandwidth data streaming technology
• Wifi Extender: Up to 100 ft.
• IP over Coaxial: Up to 1000 ft.

Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x

Audio Format: Supports 2ch PCM at 44.1/48kHz

Data Stream Bandwidth: < 15Mbps.

Signal Extension: Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable

Web Control Interface: Reduces installation time and provides basic video setup.

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID: EDID libraries readily available to provide the best setup per source

Deep Color Support: Up to 12 bits/color

TMDS re-clocking: Support for long HDMI runs using Key Digital HDMI cables

Licensing: Fully licensed and compatible with all HDMI and HDCP technologies

Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Source/Display Control: Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports

Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App

Control App Stabilization: One KD-CX800 or KD-MC1000 recommended to act as a gateway and increase reliability from KD-App control
