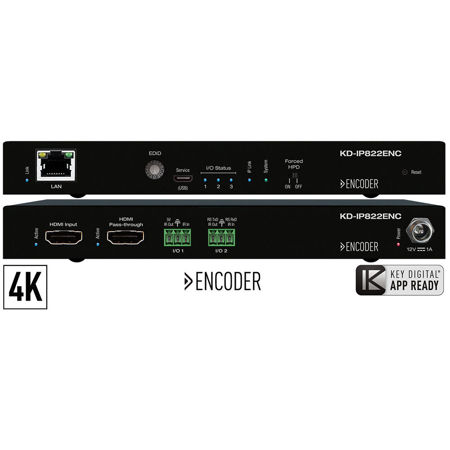

Key Digital KD-IP822ENC 4K UHD Enterprise AV Over IP Encoder with PoE, HDMI Pass-Thru, 2x IR/RS-232 Ports

Key Digital's Enterprise AV over IP solutions create expandable HDMI over IP systems that can be scaled to fit any commercial installation

Features

Enterprise AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension

Inter-System Compatibility: Fully compatible with KD-IP922ENC and DEC systems

Video Wall Processing: Encoder + Decoder systems create video walls with up to 4 total displays . Use KD-IP922DEC for larger video wall configurations

Control: 2 multi-function ports may be used as third-party control interface, Compass Control Pro master controller, control extension via IP, or callable via KeyCode open API

Key Digital App Ready: Network scan & detect populates pre-built GUI including image preview

HDCP 2.2: Compliancy up to HDCP 2 .2 and backward compliant

4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit

4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times

Signal Extension: Up to 330 ft . / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point

Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch

Redundant Power Connection: Added reliability for non-PoE integration .Power supply sold separately

Data Stream Bandwidth: < 900Mbps / Latency: <40ms at 4K½½ Installation: Use KD-SMS16 to cleanly install up to twelve KD-IP822ENC/DEC units in rack

HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2 .2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s

EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder

Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control

IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block

Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units

RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector

RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status

Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio½½ Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API: AMX, Control4, Crestron, KNX, RTI, Savant, URC, Leviton etc

Compass Control Pro Inside: Built-in 2 port Compass Control Pro master controller.

NoteKD-ProCL1/2/4/8 Software Activation License sold separately. Required to activate iOS controllers.
