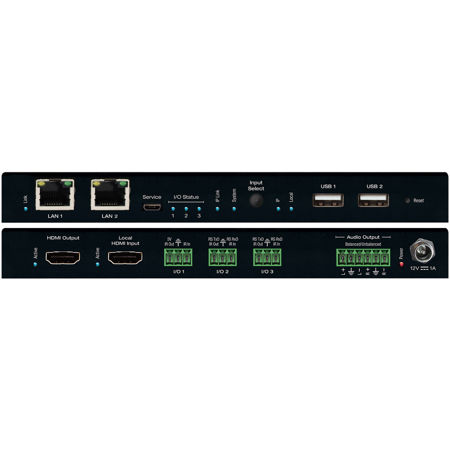

Key Digital KD-IP922DEC 4K UHD Enterprise AV Over IP Decoder with 2 PoE Ports LAN Switch, Local HDMI Switching, Audio De-Embedding, Video Wall Processing, KVM/USB

Key Digital's Enterprise AV over IP Encoders and Decoders create expandable HDMI over IP systems that can be scaled to fit any commercial installation.

Features

Enterprise AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension

Video Wall Processing: Encoder + Decoder systems create video walls with up to 16V and 16H monitors

HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant

4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit

4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times

Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or point-to-point

Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch

Dual LAN: Enable system expansion beyond a 48 port system

Redundant Power Supply: Added reliability for non-PoE integration

Audio De-Embedding: Audio from the HDMI input is de-embedded through Analog L/R Balanced/Unbalanced phoenix terminal to enable external audio connectivity with audio distribution systems and amplifiers

Audio DSP: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port

HDMI Pass-Through: Enables connection to local monitor or additional devices up to 75 ft.

HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s

Control: 3 multi-function ports controllable via KeyCode open API, as Compass Control Pro master controller, or as control extension via IP

EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder

Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control

USB 2.0: Supports synchronous and isochronous connections

IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block

Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units

RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector

RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status

Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio

Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Key Digital App Ready: Can be controlled over TCP/IP via Key Digital iOS App

Compass Control Pro Inside: Built-in 3 port Compass Control Pro master controller.

I2C Communication: EDID and HDCP authentication to Display and Source

Data Stream Bandwidth: < 900Mbps

Latency: <40ms at 4K. Less at lower resolution.
