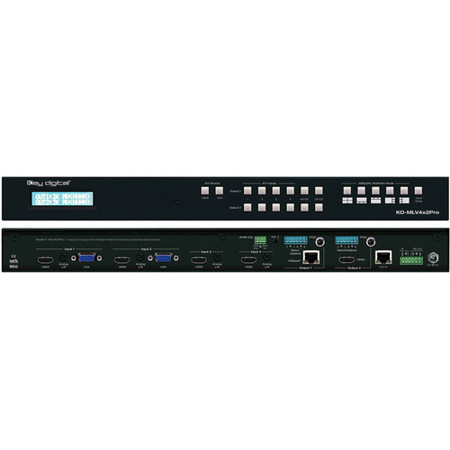

Key Digital KD-MLV4X2PRO 4x2 4K POH HDBaseT HDMI VGA Multi-View Seamless Presentation Matrix Switcher

SKU: KDMLV4X2PRO

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Key Digital KD-MLV4X2PRO Specifications

Technical

Technical

Jump to...
  • Inputs

    4 HDMI connector, Type A, 19 pin female; 2 HD analog video 15-pin female, 2 analog audio connector, 3.5mm stereo female

  • Outputs

    1 HDMI connector, Type A, 19 pin female; 1 HDBaseT RJ45 female; 1 digital coaxial audio on RCA connector; 1 L/R Balanced/Unbalanced on 6-pin Phoenix connector (Each)

  • TMDS Bandwidth

    9 Gb/s total

  • Deep Color Support

    Supports digital video formats in Deep Color Mode up to 8 bits/color with all HDMI and HDCP technologies

  • Link

    Single Link

  • DDC Signal (Data)

    Input DDC signal - 5 Volts p-p (TTL)

  • HDMI Video/Audio Signal

    1.2 Volts p-p

  • DDC Communication

    EDID And HDCP buffering between source and display

  • Wired IR

    Modulated IR signal input, 0-5V TTL or -10 to +10V

  • Power

    External power supply; 12V/5A

General

Jump to...
  • Regulation

    CE, RoHS, WEEE

  • Enclosure

    Black metal

  • Rack Mount

    1U, full rack-width (rack ears included)

  • Dimensions

    17.25 x 8.875 x 1.75" (43.8 x 22.54 x 4.44cm)

  • Weight

    6.5 lb (2.94kg)

  • UPC Code

    815996020631

About Key Digital KD-MLV4X2PRO

Key Digital's KD-MLV4x2Pro is a seamless multi-format video matrix with UHD/4K resolution up-scaling, multi-view window processing, audio de-embedding, independent audio from video matrix selection, and HDCP 2.2 compliancy. The HDMI and HDBaseT output are independent in full-screen and quad screen modes. KD-X222PO Rx HDBaseT extender receiver is included and powered from the matrix.

KD-MLV4x2Pro is designed to fit a wide variety of professional video installation and live-event needs. It is ideal for digital signage, video wall, conference & board room, huddle spaces, home theater, and bar/restaurant applications.

Features

Multi-view Window Processing: Create & store custom multi-view layouts, recall custom presets in 1080p (2K) Multi-view mode
• Quadrant Mode (4K or 2K): Independent outputs in four equally-sized windows
• Multi-view Mode (2K): Linked/mirrored outputs in customized screen layout

Seamless Switching: Un-interrupted screen transitions during source selections

Independent matrix switching: In full-screen and quadrant modes, linked/mirrored in multi-view mode

Image Layering: Stack images with customizable priority settings

Window Transparency and Border: View content through each other and choose window bezel width and coloring

Multi-format Switch:
• Input: 2 HDMI, 2 HDMI or Analog video, all with external audio
• Output: 1 HDMI and 1 HDBaseT output. Rx unit included

HDBaseT Built-In: Included KD-X222PORx unit is powered by at KD-MLV4x2Pro

Signal Extension:
• Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p with third-party CAT5e/6
• Up to 125 feet @ 4096x2160 30Hz [4:4:4] 8bit with third-party CAT5e/6

Ultra HD/4K Up-scaling: Outputs independently upscale to 4096x2160 30Hz [4:4:4] 8bit in 4K Quadrant mode

HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2

Resolution Support: Supports SD, HD, and VESA input resolutions up to 1080p / 1920x1200 on HDMI and analog video Inputs. Outputs fixed to 1080p or 4K

Web Control Interface: Reduces installation time and provides basic and advanced video and audio setup

Audio De-Embed: Audio from the selected input is be de-embedded through the Coax digital (PCM) output in addition to the HDMI output

Dolby Digital & DTS Audio: Supports 2-channel and multi-channel audio formats up to 5.1 Dolby / DTS lossless compressed digital surround sound

Independent Video & Audio: Listen to any audio source while in quadrant or multi-view modes

Analog to Digital Video Conversion: Analog video input ports support VGA / DB15 or Component / YPbPr signal types

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID: Internal library with 5 default EDID configuration for input, in addition to native EDID data for any Output / Display

TMDS Re-clocking: Support for long HDMI connectivity using Key Digital HDMI cables

Deep Color Support: Up to 12 bits/color

Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control

Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App

What's in the box:

  • KD-MLV4X2PRO 4x2 4K POH HDBaseT HDMI VGA Multi-View Seamless Presentation Matrix Switcher
  • IR Remote Control (KD-RMMLV)
  • Rack Ears
  • Operating Instructions
  • Key Digital 3 Year Limited Warranty
