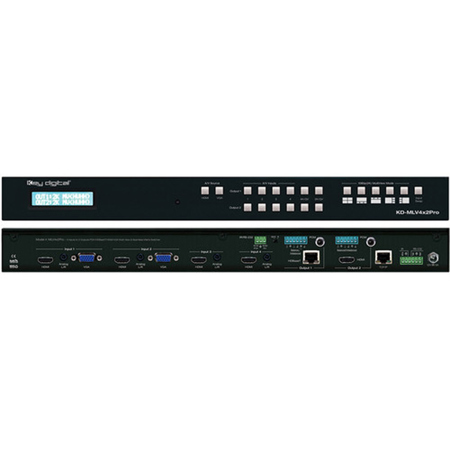

Key Digital KD-MLV4X4PRO 4x4 4K UHD HDMI Seamless Matrix Switcher with Multi-View Tiling Processor

Multi-View Tiling Processor
Simultaneously watch multiple sources on a single screen

• Full-Screen Mode: View full-screen content on any display
• Multi-View Mode: Choose from 5 default layouts or create custom presets. The active multi-view layout is distributed to any display currently in multi-view mode

Seamless Switching
Un-interrupted screen transitions during source selection while in full-screen mode

Built-In UHDoTP Tx with PoC
4 included KD-EXMLVRx units are powered by KD-MLV4x4Pro

Mirrored Outputs
Simultaneously active HDMI + UHDoTP connections per output show same AV signal at same time for a total of 8 possible displays connected

Independent Audio Matrix
Audio output ports may be routed separately from HDMI & UHDoTP ports. Audio from any source may be selected while in multi-view mode.

Video Resolution
Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on outputs

Signal Extension over CAT
• 4K/UHD: Up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP
• 1080: Up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP
• Minimum: 5m (17ft) CAT5e/6 cable length required for all resolutions

Text Overlay
Assigned name of each source may be displayed in each window. 16 Characters maximum with variable sizing and location settings.

4K Down-Convert
Integrate 4K sources with legacy 1080p & 720p displays

Image Layering
Stack images with customizable priority settings per output

Custom Layouts and Border
Create custom Window layouts and choose window bezel width and coloring

HDCP 2.2 Licensing
Fully licensed and compatible with HDCP 2.2

Built-In Test Patterns
9 selectable test screens help expedite installation

IR Two-Way
Extend IR via Rx units to control displays or collect IR from remote to control a source at matrix

Web UI
Control AV routing and other basic functions from any web browser

Audio De-Embed
6 pin balanced/un-balanced and digital optical outputs

Dolby Digital & DTS Audio
Supports 2-channel and multi-channel surround formats up to 5.1 Dolby/DTS

Full Buffer System
Manages TMDS re-clocking/signal re-generation, HDCP authentication to source & display, and EDID handshake to source

EDID Management
Internal library with 8 EDID AV handshakes per input, in addition to ability to copy from any connected display/output

TMDS Re-clocking
Supports long HDMI connectivity using Key Digital HDMI cables

Deep Color Support
Up to 8 bits/color

Control
Front panel buttons, IR, RS-232, TCP-IP and Web Control

Key Digital App Ready
Can be controlled over TCP/IP via Key Digital App

Control System Support
Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
