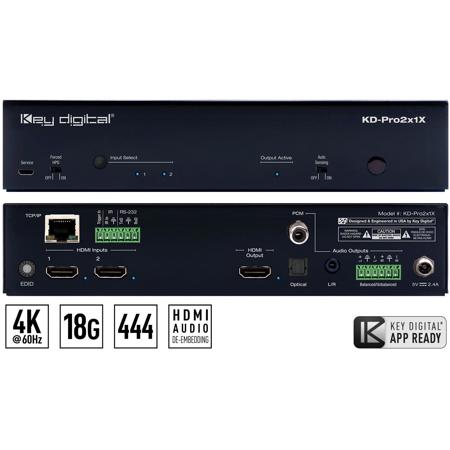

Key Digital KD-PRO2X1X 4K/18G 2x1 HDMI Switcher with Optical, PCM, L/R, and Balanced/Unbalanced Audio, IP Control, HDR10 & Dolby Vision, HDCP 2.2, Black

Key Digital KD-Pro2x1X/KD-Pro4x1X are 4K/18G HDMI switchers with analog and digital audio de-embedding, auto switching, and app-ready controllability. Designed for professional audio video installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, KD-Pro2x1X/ KD-Pro4x1X enables multiple video sources to connect to a single video display while analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. Integrating KD-Pro2x1X/KD-Pro4x1X with KD-Amp220 will enable an app-ready all-in-one solution for control of video switching with sound and speech enforcement. KD-Pro2x1X/KD-Pro4x1X HDMI switchers support all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-Pro2x1X/KD-Pro4x1X can also be controlled via trigger voltage and features status-monitoring LEDs.HDMI Switching
2/4 HDMI sources to 1 HDMI output/display

Ultra HD/4K
Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

HDCP Licensing
Fully licensed and compatible with HDCP 2.2

HDR10 and Dolby Vision
More life-like images through a greater range of luminance levels

Audio De-embedding
Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors.

Key Digital App Ready
Scan & detect population for pre-built GUI and TCP/IP control via Key Digital App

KD-AMP220 Control Mode
Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement

Auto-Sensing
Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled

Resolution Support
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p.

Deep Color Support
Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

Full Buffer System
Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshakeEDID Management
Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1

Lossless Compressed Digital Audio
Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio½½½, and Dolby Atmos

CEC Pass-thru
From connected display to selected HDMI source

Control
Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable

Control System Support
Key Digital App ready. Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
