Key Digital KD-PRO8X8D 4K 8x8 POH/HDBT/HDMI Matrix Switcher with Integrated Audio, DSP/De-Embedding of Analog L/R Balanced/Unbalanced, Digital Coaxial Audio, ARC

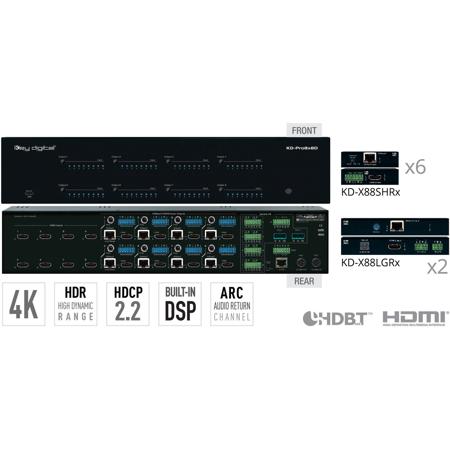

Key Digital KD-Pro8x8D is a UHD/4K, HDCP 2.2, and ARC supporting digital video matrix with audio de-embedding on analog and digital audio connectors. Video outputs feature simultaneously active HDMI and HDBaseT ports for simplistic single-wire integration with displays throughout the distributed video system. Six short range (model KD-X88SHRx) and two long range extenders (model KD-X88LGRx) deliver UHD/4K video up to 125 ft. and 300 ft. respectively and are powered at the matrix switch. IR and RS-232 control routing adds up to 34 control ports to third-party control systems.

4K/UHD Resolution
Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit

Bandwidth
10.2Gbps supports UHD/4K resolutions with HDR via EDID handshaking

Simultaneously Active
8 HDBaseT (CAT5e/6 RJ45) and 8 HDMI outputs with fully automatic CAT5e/6 cable equalization. Supports up to 16 displays (8 mirrored)

HDBaseT Rx Included
8 total Rx extenders integrate with built-in HDBaseT Tx output ports: (6) Standard Range KD-X88SHRx, (2) Long Range KD-X88LGRx

Signal Extension via KD-X88SHRx
• Up to 125 feet @ 4K/Ultra HD
• Up to 200 feet @ 1080p/60/24, 1080i, 720p

Signal Extension via KD-X88LGRx
• Up to 300 feet @ 4K/Ultra HD
• Up to 500 feet @ 1080p/60/24, 1080i, 720p

HDR (High Dynamic Range)
More life-like images through a greater range of luminance levels

HDCP 2.2 and HDMI Licensing
Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies

Deep Color Support
Up to 12 bits/color

Audio Return Channel
Audio may be returned from display to respective audio output

Audio De-Embedding
Audio from the selected HDMI input may be de-embedded through the Coax digital (PCM) and analog L/R balanced/unbalanced output

Audio DSP
Variable level settings for volume, muting, 3-band EQ, balance, and lip-sync delay per output

Full Buffer Technology
Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relationEDID Control
Internal library with 15 default EDID configurations for each input, in addition to native EDID data for any Output/Display

TMDS Re-clocking
Support for long HDBaseT and HDMI runs and many layers of connectivity

Voltage Control
Two dedicated 3-pin relays and any control I/O ports may be used as a voltage trigger

Lossless Compressed Digital Audio
Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio

Control Routing
Enables bi-directional IR/RS-232 control signal extension adding 36 ports to control system

Control Integration
TCP/IP, RS-232, and USB with full bi-directional operation, front panel push buttons and LEDs, front/rear optical IR, serial IR

Control System Support
Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Key Digital App Ready
Scan & detect population for pre-built GUI and TCP/IP control via Key Digital App

Compass Control Pro Inside
Built-in 35 port Compass Control Pro master controller.

• 8x IR/RS-232/Trigger at each HDBaseT Output
• 9x IR/RS-232/Trigger at each Control I/O
• 2x 3-pin relay at
• 16x IR/RS-232/Trigger at HDMI Input/Output (requires KD-IQJump12FM sold separately)
• KD-ProCL1/2/4/8 Software Activation License sold separately. Required to activate iOS controllers.
