This item is no longer available.

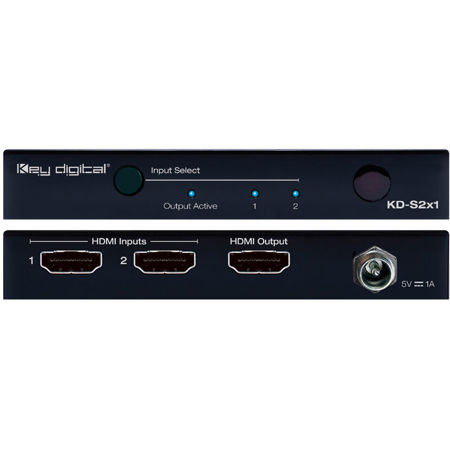

Key Digital KD-S2x1/KD-S4x1 HDMI switchers are designed and engineered to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI switching solution. The KD-S2x1/KD-S4x1 HDMI switchers provide multiple input to one output switching and maintain crystal-clear, pristine picture and sound quality, without signal degradation. KD-S2x1/KD-S4x1 HDMI switchers support all SD, HD, VESA and Ultra HD/4K video standards, including UHD/4K, 1080p/60, 1920x1200. The switchers feature push button and optical IR switching, status-monitoring LEDs, and support of HDR10, HDCP 2.2 and 4K/18Gbps
Features
Digital Switching: 2 HDMI Sources to 1 HDMI Display
Resolution Support: SD, HD, and VESA up to UHD/4K
18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
3D Ready: Capability to pass 3D stereoscopic signal formats
EDID Control: Internal library with 16 default EDID configurations for each input, including native EDID data of Output/Display
Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
I2C Communication: EDID and HDCP buffering from Display to Source
Control: Front panel push buttons and LEDs, Optical IR
CEC: Full Support
Control System Support: Compass Control Pro ready. Fully controllable by all IR supported control systems.
