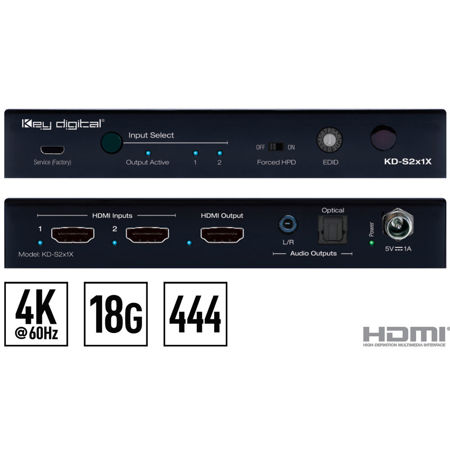

Key Digital KD-S2x1X 2x 1 4K/18G HDMI Switcher with L/R Optical Audio & De-Embedded Audio Output

Key Digital KD-S2x1X/KD-S4x1X are 4K/18G HDMI switchers engineered to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI switching solution. Designed for professional audio video installations in presentation, theater, and gaming spaces, KD-S2x1X/KD-S4x1X enables multiple video sources to connect to a single video display while L/R analog and Optical audio de-embed ports may be used to feed audio of the selected source into amplifiers, DSPs, or sound bars. KD-S2x1X/KD-S4x1X HDMI switchers support all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. The switchers feature push button and optical IR switching, status-monitoring LEDs, and support of HDR10, HDCP 2.2 and 4K.

Features

HDMI Switching: 2 HDMI sources to 1 HDMI output/display

Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

HDCP Licensing: Fully licensed and compatible with HDCP 2.2

HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels

Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p.

Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors.

Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake

EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display

Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos

CEC Pass-thru: From connected display to selected HDMI source

Control: Front panel buttons/LEDs, Optical IR

Control System Support: Compass Control Pro ready. Fully controllable by all IR supported control systems.
