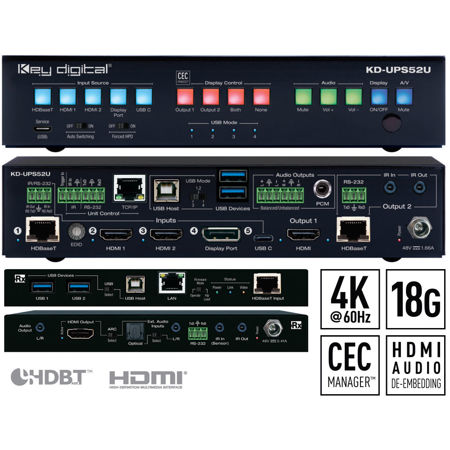

Key Digital KD-UPS52U 5-Inputs 4K/18G USB/Multi-Format Universal Presentation Switcher with 2 Mirrored HDMI/HDBT Outputs

Key Digital Presentation Solutions are a family of products integrating a Soft-Codec Enabling System with HDBT/HDMI/Audio/Control hardware designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more.

- KD-UPS52U 5-Inputs 4K/18G USB/Multi-Format Universal Presentation Switcher -

Key Digital Presentation Solutions are a family of products integrating a Soft-Codec Enabling System with HDBT/HDMI/Audio/Control hardware designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more.

Features

Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add KD-X4x1WUTx wall plate HDBaseT transmitter for plug-in on walls, floor and table boxes

Presentation Switching: 1 HDBaseT, 2 HDMI, 1 Display Port, 1 USB-C source selection by push button, IP, RS-232, IR, auto switching, or trigger control.

Soft-Codec Enabling System: USB Host + Device ports on KD-UPS52U, KD-X4x1WUTx wall plate transmit (sold separately) and KD-100MRx (included) create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer

PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control via KD-App and more

Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled

CEC Manager: Power, volume, and muting controls of the connected display/projector without any additional control wiring. Selection of desired CEC command recipient.

KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager

Audio De-embedding: Audio of the selected source is de-embedded at the unit's analog L/R balanced/unbalanced and PCM digital audio connectors

KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement

HDCP Licensing: Fully licensed and compatible with HDCP 2.2

HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U

Installation: Half-rack width with rack mounting ears included.

Signal Extension: For resolution and cable quality
• 4K/UHD (18G): Up to 100m / 328ft
• 1080p: Up to 150m / 492ft

Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage

EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device

RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit

Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio

Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

- KD-X100MRx Receiver -

4K/18G HDBaseT Rx (100m) with USB, LAN, ARC, L/R Audio In, L/R Audio Output De-Embed, IR, RS-232

Features

Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx and KD-X3x1WUTx wall-plate or KD-PS22UTx black box transmitters (sold separately).

Soft-Codec Enabling System: USB Host + Device ports on Rx and chosen wall-plate / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer

Audio De-embedding: Audio of the selected source is de-embedded at the unit's analog L/R connector

Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-X3x1WUTx / KD-PS22UTx. Rx is powered by Tx when integrated with KD-UPS52U / KD-UPS72U

CEC Manager: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-X3x1WUTx, KD-PS22UTx, KD-UPS52U, or KD-UPS72U

PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App and more

Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

HDCP Licensing: Fully licensed and compatible with HDCP 2.2

HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

Signal Extension: For resolution and cable quality
• 4K/UHD (18G): Up to 100m / 328ft
• 1080p: Up to 150m / 492ft

Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension

IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring

RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio

Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control Pro, AMX, Crestron, KNX, RTI, Savant, URC, Leviton etc.
