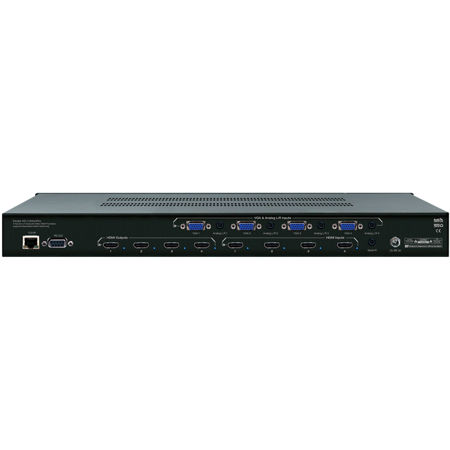

Key Digital KD-VW4x4Pro 4 Inputs to 4 Outputs Video Wall Processor, Seamless Presentation Matrix Switcher

Key Digital's Video Wall Series, KD-VW4x4Pro, enables you to turn standard consumer or professional displays into a video wall. This video wall processor features eight different video wall modes including many horizontal and vertical layouts in addition to 2x2. KD-VW4x4Pro supports seamless 4x4 matrix switching, and analog to digital conversion of incoming VGA with analog audio signals.

KD-VW4x4Pro is designed to fit a wide variety of professional video installation and live-event needs. It is ideal for retail digital signage, conference & board room, bar/restaurant, house of worship, corporate A/V, data monitoring centers, and more.

Features

HDMI Matrix Switching: 4 HDMI/Analog sources to 4 HDMI outputs, independent when in matrix mode

Seamless Switching: Un-interrupted screen transitions during source selections

Video Wall Processing: Transform consumer and professional displays into a video wall with eight video wall modes
• Horizontal (4): 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
• Vertical (3): 4x1, 3x1, and two sets of 2x1
• 2x2

Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently

EDID: Internal library with 5 default EDID configurations for each input, in addition to native EDID data for any Output/Display

Full Buffer Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation

TMDS re-clocking: Support for long HDBaseT/CAT5e/6 or HDMI connections and many layers of connectivity.

Deep Color Support: Up to 12 bits/color

Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control and discrete on and off via IR

Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App
