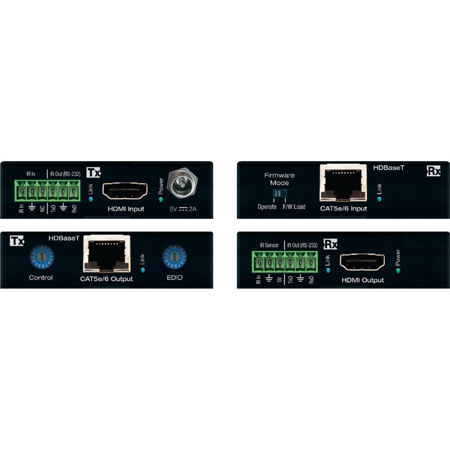

Key Digital KD-X222PO HDBaseT 4K HDMI Extender Set with PoE, HDR & HDCP 2.2

KD-X222/KD-X222PO HDBaseT/HDMI (Tx & Rx) Extenders are an HDCP 2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) signals up to 150 ft. using Key Digital KD-CAT6STP1X Super CAT6A Shielded cable, or up to 125 ft. using a single third-party CAT5e/6 cable. 1080p/60, 1920x1200, 3D signals are extended up to 250 ft. via single Key Digital KD-CAT6STP1X Super CAT6 shielded cable, or up to 230 ft. using a single third-party CAT5e/6 cable. In addition to HDMI video and audio signals, KD-X222/X222PO carries IR or RS-232 for controlling remotely located equipment or the RS-232 port can be used to control the KD-X222/X222PO.

Features

HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length

KD-X222PO: Features power extension from Tx to Rx with Power Over HDBaseT, Rx unit does not require power supply

Signal Extension:
• Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
• Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6UTP/STP cabling
• Up to 250 ft. @ 1080p /1920x1200 using KD-CAT6STP1X cabling
• Up to 230 ft. @ 1080p /1920x1200 using third-party CAT5e/6 cabling

HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant

HDR (High Dynamic Range): More life-like images through a greater range of luminance levels

4K/UHD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit

Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit

3D: Support for standard 3D stereoscopic signal formats

Low Profile: Super slim chassis design

HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s

EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx

Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control

IR Sensor: Sensor powering via +5V on Rx unit's IR In port collects line-of-sight IR from remote(s) without external IR connecting block

Up/Down IR: Two channels of IR enable control to/from devices connected to Tx and Rx units

RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector

Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as connectivity status

Lossless compressed digital audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio

CEC Support: For inter-device control between input and output HDMI channel

I2C Communication: EDID and HDCP authentication to Display and Source

Control System Support: Fully controllable by all RS-232 supported control systems via open API: Compass Control, AMX, Crestron, KNX, RTI, Savant, URC, Leviton etc.
