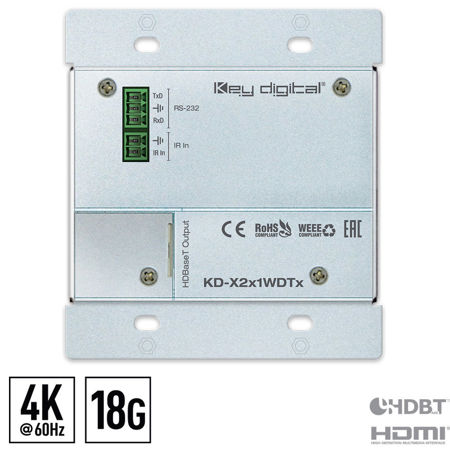

Key Digital KD-X2X1WDTX 2x1 4K/18G HDBT PoH Wall Plate Switcher with HDMI & DisplayPort, IR, RS-232, Transmitter Only

Key Digital KD-2x1WDTx / KD-X2x1WVTX are HDBaseT wall-plate transmitters + presentation switchers with one HDMI and one Display Port / VGA input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more. KD-X2x1WDTx / KD-X2x1WVTX is natively received by KD-X40MRx black box HDBaseT Rx or by KD-PS42 Presentation Switcher. Both Rx options have audio de-embedding for ease of integration with audio systems. Additional Key Digital Presentation Switchers also support integration with KD-X2x1WDTx and KD-X2x1WVTX.

KD-2x1WDTx / KD-X2x1WVTX is HDCP 2.2 compliant and supports 4K/UHD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth. 4K/UHD signals are extended up to 40m / 131ft and 1080p up to 70m / 230ft via single CAT5e/6 cable. In addition to AV signals, KD-X2x1WDTx / KD-X2x1WVTX extends IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit / presentation switch or Presentation Switcher for convenient installation.

Features

Presentation Switching: 1 HDMI and 1 Display Port source selected bypush button

Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available.

Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled

HDCP Licensing: Fully licensed and compatible with HDCP 2.2

HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit

Installation: Tx unit designed for installation in standard US dual-gang box. Silver decora plate included.

Signal Extension: For resolution and cable quality
• 4K/UHD (18G): U 230ft

Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage

EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device

IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring

RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

Unit Control: via USB for initial installation steps

Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
