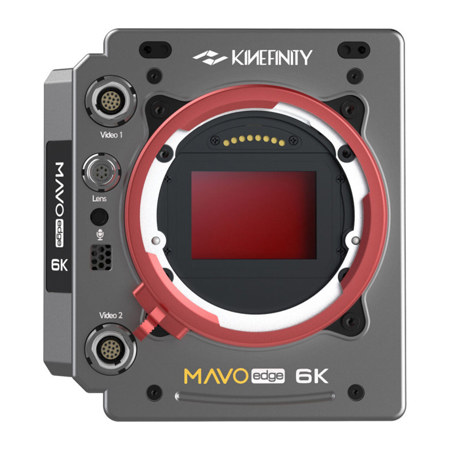

Kinefinity MAVO Edge 6K Digital Cinema Camera, Deep Gray

SKU: KFA01000201 MFR: A010-002-01
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the Kinefinity MAVO Edge's 6K Full Frame CMOS sensor.
  • Achieve cinematic brilliance using uncompressed RAW and ProRes recording codecs.
  • Explore diverse lens options with the versatile Omni KineMOUNT lens mount system.
  • Enjoy clean audio with dual XLR inputs featuring 48V phantom power support.
  • Film in challenging conditions, thanks to the camera's durable aluminum build.
  • Utilize dual base ISO (800/5120) for exceptional low light video performance.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kinefinity MAVO Edge 6K Specifications

General

General

Jump to...
  • CMOS Imaging Sensor

    6K 3:2 Full Frame CMOS Imaging Sensor

  • Max Record Res

    6016x3984 (Open gate 3:2), 24M

  • Frame Rate

    0.2-75fps @FF 6K Wide, 0.2-150fps @S35 4K Wide

  • Active Area

    36x24mm, Dia. 43.3mm

  • Dual Base ISO

    Regular Base ISO: 800 (500 - 2560), High Base ISO: 5120 (3200 - 20480)

  • Latitude

    >14 stops

  • Shutter Angle

    0.7 Degree -358 Degree with rolling shutter

  • Lens Mount

    Omni Native KineMOUNT, Short FFD Adapters: PL/LPL/Active EF/passive E

  • Optical Filter

    OLPF with UV and IR-cut filter

  • ND Filter

    Built-in motorized: Clear and e-ND from 0.6 to 2.4

Codecs, Lut

Jump to...
  • Record Codec

    Codec Type: Uncompressed RAW
    Codec Format: dng
    Bit Depth: 12bits

    Codec Type: ProRes4444XQ
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes4444
    Codec Format: Quicktime mov
    Bit Depth: 12bits

    Codec Type: ProRes422HQ
    Codec Format: Quicktime mov
    Bit Depth: 10bits

  • LUT

    KineLOG3, Neutral(Rec 709), Support Custom 3D LUT

  • Record Media

    Media Slot x2, for KineMAG Nano SSD 1TB based on NVMe M.2 SSD (3rd party NVMe M.2 2280 cards are also supported via the KineMAG Nano card body)

  • KineMAG Nano Size (W x H x L)

    1.6 x 3.5 x 0.35" (40 x 88 x 9mm)

Resolution, Frame Rate & Optical Format

Jump to...
  • Full Frame

    FF 6K OG:
    6016x3984, 0.2-48fps
    ProRes
    36x24mm, Dia. 43.3mm

    FF 6K 17:9:
    6016x3172, 0.2-60fps
    ProRes
    36x19.1mm, Dia. 41.0mm

    FF 6K 2.4:1:
    6016x2520, 0.2-75fps
    ProRes
    36x15.2mm, Dia. 39.1mm

    FF 5.7K 3:2:
    5760x3700, 0.2-50fps
    ProRes
    34.5x22.2mm, Dia. 41.0mm

    FF 6K UHD:
    5760x3240, 0.2-58fps
    ProRes
    34.5x19.5mm, Dia. 39.6mm

  • Full Frame (Contd.)

    FF 5.7K 2.4:1:
    5760x2400, 0.2-75fps
    ProRes
    34.5x14.4mm, Dia. 37.4mm

    FF 5K 4:3:
    5120x3700, 0.2-50fps
    ProRes
    30.6x22.3mm, Dia. 37.9mm

    FF 5K DCI:
    5120x2700, 0.2-70fps
    ProRes
    30.6x16.2mm, Dia. 34.6mm

    FF 5K 2.4:1:
    5120x2160, 0.2-86fps
    ProRes
    30.6x12.9mm, Dia. 33.2mm

    FF 4.6K 6:5:
    4608x3700, 0.2-50fps
    ProRes
    27.6x22.3mm, Dia. 35.5mm

  • Full Frame (Contd..)

    FF 3.8K 3:2 (Oversample):
    3840x2460, 0.2-50fps
    ProRes
    34.5x22.2mm, Dia. 41.0mm

    FF 4K UHD (Oversample):
    3840x2160, 0.2-58fps
    ProRes
    34.5x19.5mm, Dia. 39.6mm

    FF 3.8K 2.4:1 (Oversample):
    3840x1600, 0.2-75fps
    ProRes
    34.5x14.4mm, Dia. 37.4mm

  • Full Frame (Contd...)

    FF 3.4K 4:3 (Oversample):
    3456x2460, 0.2-50fps
    ProRes
    31.0x22.1mm, Dia. 38.1mm

    FF 3K 6:5 (Oversample):
    3072x2460, 0.2-50fps
    ProRes
    27.6x22.1mm, Dia. 35.3mm

  • S35

    S35 4K 3:2:
    4096x2700, 0.2-70fps
    ProRes
    24.5x16.1mm, Dia. 29.3mm

    S35 4K DCI:
    4096x2160, 0.2-112fps
    ProRes
    24.5x12.9mm, Dia. 27.7mm

    S35 4K 2.4:1:
    4096x1720, 0.2-140fps
    ProRes
    24.5x10.3mm, Dia. 26.6mm

    S35 4K UHD:
    3840x2160, 0.2-112fps
    ProRes
    23.0x12.9mm, Dia. 26.4mm

  • S35 (Contd.)

    S35 3.8K 2.4:1:
    3840x1600, 0.2-150fps
    ProRes
    23.0x9.6mm, Dia. 24.9mm

    S35 3.6K 4:3:
    3712x2700, 0.2-70fps
    ProRes
    22.2x16.1mm, Dia. 27.4mm

    S35 3.2K 6:5:
    3328x2700, 0.2-70fps
    ProRes
    19.9x16.1mm, Dia. 25.6mm

    S35 2.7K 1:1:
    2688x2688, 0.2-70fps
    ProRes
    16.1x16.1mm, Dia. 22.8mm

    S35 2K DCI (Oversample):
    2048x1080, 0.2-112fps
    ProRes
    24.5x12.9mm, Dia. 27.7mm

  • S35 (Contd..)

    S35 2K 2.4:1 (Oversample):
    2048x860, 0.2-140fps
    ProRes
    24.5x10.3mm, Dia. 26.6mm

    S35 2K FHD (Oversample):
    1920x1080, 0.2-112fps
    ProRes
    23.0x12.9mm, Dia. 26.4mm

    S35 1.9K 2.4:1 (Oversample):
    1920x800, 0.2-140fps
    ProRes
    23.0x9.6mm, Dia. 24.9mm

  • Other Cropping

    3K DCI:
    3072 x1620, 0.2-144fps
    ProRes

    3K 2.4:1:
    3072 x1200, 0.2-195fps
    ProRes

    3K HD:
    2944 x1620, 0.2-145fps
    ProRes

    3K HD 2.4:1:
    2944 x1200, 0.2-195fps
    ProRes

    2K DCI:
    2048 x1080, 0.2-200fps
    ProRes

    2K 2.4:1:
    2048 x860, 0.2-270fps
    ProRes

    2K FHD:
    1920 x1080, 0.2-220fps
    ProRes


    1.9K 2.4:1:
    1920 x800, 0.2-290fps
    ProRes

Monitoring

Jump to...
  • Proprietary Video Port x2

    For Kinefinity Viewfinder, KineMON-5U2/7U2 Ultra Bright Monitor with Touch Screen

  • SDI x2

    3G/1.5G SDI x2 with Meta data (regular BNC)

Audio In and Out

Jump to...
  • Audio sampling spec

    Linear PCM, 24bits, 48KHz

  • Audio input

    Built-in Mono Microphone
    3.5mm Microphone Jack
    48V Phantom-power Balanced Input x2 (regular XLR)

  • Audio output

    3.5mm Headphone Jack

Wireless & Network

Jump to...
  • Wired

    Gigabit Ethernet (RJ45 type) for live stream, camera control and data transfer

  • Wireless

    WIFI 5 for live stream, camera control

  • Other

    3-axis accelerometer

Sync and Control

Jump to...
  • Timecode

    Linear TC In&Out (0B5P)

  • Control

    Lens with RS232, Power output (0B6P)

  • Multi-sync, Control

    SYNC with RS232 and Kinefinity camera sync(0B7P)

  • RS

    Rec trigger input with Power output (fisher 3P)

  • Extension

    Data & Control, EXT1 & EXT2(for pogo-pin, 2x4 contacts)

  • USB

    Type-C USB x1, can be used for firmware updates and importing custom LUTs

Power In and Out

Jump to...
  • Power consumption

    29W, when 6K HD 25p, liveview

  • Power Inputs

    Integrated V-mount battery plate, V-mount battery or BP-U compatible
    DC Input (1B2P), 11-26V
    UPS EXT 3(for pogo-pin, 2x5 contacts)

  • Power outputs

    D-tap x1, Vbat @3A; Vbat as DC in or BAT in
    RS x1, Vbat @3A (Shared with D-tap)
    Lens x1, Vbat @3A

Environmental

Jump to...
  • Operating Temp

    32 Degree F to 104 Degree F. (0 Degree C - 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Color

    Deep Gray

  • Material

    Ultra-high Strength Aircraft Aluminum

  • Dimensions (W x H x L)

    4.1 x 4.8 x 4.3" (106 x 124 x 109mm) (Without protrusion)

  • Weight

    3.5 lbs (1.6kg)

8 Accessories for Kinefinity MAVO Edge 6K Digital Cinema Camera, Deep Gray

  • All Accessories (8)
  • Microphones & Audio (2)
  • Flash & Lighting (6)

About Kinefinity MAVO Edge 6K

Under the sleek and robust design of the Kinefinity MAVO Edge 6K Digital Cinema Camera lies a powerhouse of cinematic capabilities. This deep gray marvel is engineered with a 6K full-frame 3:2 CMOS imaging sensor, delivering stunning visuals at 6K 75fps and 4K 150fps. Its dual native ISO settings (800/5120) ensure exceptional highlight performance across various sensitivity settings, making it an ideal choice for filmmakers seeking versatility and high-quality output.

The MAVO Edge 6K is equipped with an internal motorized full-spectrum e-ND filter, ranging from 0.6 to 2.4, allowing seamless exposure control without compromising color fidelity. This feature, combined with industry-standard ports and dual SSD media slots, facilitates recording in Apple ProRes4444/XQ and uncompressed RAW formats, ensuring high-resolution images with minimal compression artifacts.

Weighing just 3.6lbs, this compact camera is designed for adaptability in demanding shooting scenarios. It captures natural colors, pleasing skin tones, and high dynamic range with low noise, thanks to its advanced color processing architecture. The full-frame sensor, paired with the OLPF FF3 optical low pass filter, minimizes aliasing and artifacts while maintaining sharp image quality.

The MAVO Edge 6K excels in highlight performance, surpassing its predecessor, the MAVO LF. At ISO 800, it captures more highlight details, enhancing the cinematic look. In Cine EI mode, the camera automatically adjusts highlight stops as the EI changes, with the second base native ISO 5120 activated beyond 1600 EI.

Recording capabilities are further enhanced with support for 12-bit ProRes4444XQ and CinemaDNG uncompressed RAW, stored on dual SSD slots based on PCIe-3.0 technology. The KineMAG Nano 1TB SSD, with a writing speed of up to 10Gbps, ensures stable and secure storage of high-bandwidth footage.

The MAVO Edge 6K operates on the intuitive KineOS 7.0 firmware, featuring a redesigned user interface for easy touchscreen control. This firmware supports the Cooke/i protocol for lens metadata recording, streamlining VFX workflows. The camera's integrated body design, recognized by the iF DESIGN AWARD 2021, is crafted from ultra-high strength deformed aluminum, providing durability and toughness.

With dual SDI outputs, multi-channel audio recording, and comprehensive power solutions, the MAVO Edge 6K is equipped to meet the needs of professional filmmakers. Its hybrid battery plate supports various battery types, while multiple ports power third-party accessories, enhancing system stability and simplifying setup.

The MAVO Edge 6K also offers powerful wired and wireless functions, including Gigabit Ethernet, WIFI 5, and USB-C connectivity, enabling live streaming and seamless integration with other devices. This camera is not just a tool but a gateway to capturing cinematic excellence with precision and ease.

Kinefinity MAVO Edge 6K Features

  • Outstanding Highlight Performance with Stunning Image Quality
  • Apple ProRes Recording Codec and Uncompressed RAW
  • CinemaDNG uncompressed
  • More Intuitive KineOS Firmware
  • Integrated body design of the iF Industrial Design Award
  • Compact Camera Body with Internal e-ND filter
  • Internal motorized full-spectrum e-ND system
  • High-quality multi-channel audio record
  • Dual SDI outputs
  • Powerful wired and wireless function

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the Kinefinity MAVO Edge's 6K Full Frame CMOS sensor.
  • Achieve cinematic brilliance using uncompressed RAW and ProRes recording codecs.
  • Explore diverse lens options with the versatile Omni KineMOUNT lens mount system.
  • Enjoy clean audio with dual XLR inputs featuring 48V phantom power support.
  • Film in challenging conditions, thanks to the camera's durable aluminum build.
  • Utilize dual base ISO (800/5120) for exceptional low light video performance.

What's in the box:

  • Kinefinity MAVO Edge 6K Digital Cinema Camera (Deep Gray)
  • Port Cap
  • (Recording Media and Lens Adapters Not Included)
  • Kinefinity 1 Year Limited Warranty
