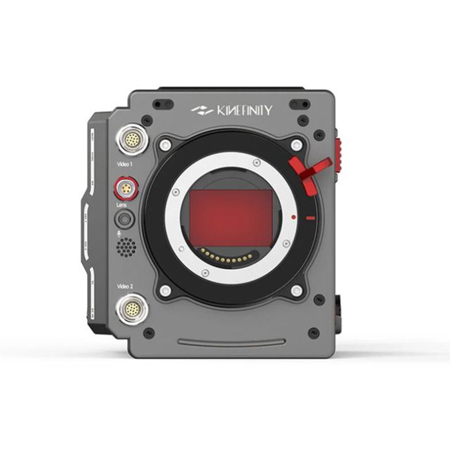

Kinefinity MAVO mark2 LF Digital Cinema Camera Sony E Mount

SKU: KFA01000303 MFR: A010-003-03
Earn VIP Reward Points

Key Features

  • Full-frame 3:2 CMOS sensor for stunning cinematic visuals
  • Dual native ISO 5120/800 for versatile lighting conditions
  • High frame rates: 75fps at 6K Wide, 150fps at 4K Wide
  • Interchangeable lens mount for diverse shooting styles
  • Records in Apple ProRes4444XQ for high-quality footage
  • Lightweight design with integrated industry-standard ports
See More Product Details
Special Order?Estimated to Ship: 02/19/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of sensor does the MAVO mark2 LF use?

The MAVO mark2 LF uses a full-frame 3:2 CMOS imaging sensor from the MAVO Edge 6K.

What are the dual native ISO settings available on the MAVO mark2 LF?

The MAVO mark2 LF features dual native ISO settings of 5120 and 800 for optimal performance in various lighting conditions.

Which lens mounts are compatible with the MAVO mark2 LF?

The MAVO mark2 LF supports interchangeable mounts compatible with PL, LPL, EF, and E-mount lenses.

What recording formats does the MAVO mark2 LF support?

The MAVO mark2 LF supports Apple ProRes formats, including ProRes 422 LT and ProRes 4444XQ, for high-quality recording and efficient post-production.

How much does the MAVO mark2 LF camera body weigh?

The MAVO mark2 LF camera body weighs 1.35kg (2.98lbs), making it lightweight and easy to handle.

Reviews about this item

Review Summary

Kinefinity MAVO mark2 LF Digital Cinema Camera Specifications

General

General

Jump to...
  • Color

    Deep Gray

  • Tripod Mount

    1x 1/4"-20 Female
    2x 3/8"-16 Female

  • Accessory Mounting Thread

    4x 1/4"-20

  • Operating Conditions

    32 to 72°F / 0 to 40°C

  • Material

    Aluminum

  • Power Consumption

    23 W

  • Latitude

    >14 Stops

Imaging

Jump to...
  • Lens Mount

    Active PL Mount, Active E Mount, Native KineMOUNT (Adapters: PL/LPL/EF)

  • Image Sensor

    36 x 24 mm (Full-Frame) CMOS

  • Sensor Resolution

    24 Megapixel (6016 x 3984)

  • Image Stabilization

    No

  • Capture Type

    Video Only

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • ISO/Gain Sensitivity

    Native: 800 to 3200 (800 to 5120 Extended)

  • Advertised Dynamic Range

    14 Stops

  • Focus Mode

    Manual Focus Only

  • Internal Recording

    ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT/ProRes 4444/ProRes 4444XQ 10/12-Bit
    6016 x 3984 from 0.2 to 48.00 fps
    5760 x 3700 from 0.2 to 50 fps*
    5120 x 3700 from 0.2 to 50 fps*
    4608 x 3700 from 0.2 to 50 fps*
    6016 x 3172 from 0.2 to 60.00 fps
    5120 x 2700 from 0.2 to 70 fps*
    6016 x 2520 from 0.2 to 75 fps
    3840 x 2460 from 0.2 to 50 fps*
    3456 x 2460 from 0.2 to 50 fps*
    3072 x 2460 from 0.2 to 50 fps*
    5760 x 2400 from 0.2 to 75 fps*
    5120 x 2160 from 0

  • Video Output

    SDI/BNC
    3840 x 2160
    2048 x 1080
    1920 x 1080

  • Fast-/Slow-Motion Support

    Yes

  • Gamma Curve

    KineLOG3, Rec709, Custom

  • Built-In Microphone

    Mono

  • Audio Recording

    2-Channel, 24-Bit at 48 kHz via LPCM Audio

Interface

Jump to...
  • Media/Memory Card Slot

    Single Slot: KineMAG Nano SSD

  • Internal Storage

    No

  • Video I/O

    2x Proprietary Output
    1x BNC (3G-SDI) Output

  • Audio I/O

    2x XLR 3-Pin Input
    1x 1/8" / 3.5 mm TRS Stereo Microphone Input
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output

  • Power I/O

    1x LEMO 2-Pin (11 to 19VDC up to 3 A) Input

  • Other I/O

    1x LEMO 5-Pin (RS-232) Control
    1x LEMO 5-Pin (Timecode)
    1x 9-Pin (RS-422, Sync)
    1x USB-C (Firmware)

  • Wireless

    Wi-Fi 5 (802.11ac)

  • Mobile App Compatible

    Yes (Requires Included Adapter): Android & iOS
    App Name: Kinefinety App
    Functionality: View Live Feed, Remote Control, Adjust Settings

  • Global Positioning (GPS, GLONASS, etc.)

    No

Battery

Jump to...
  • Battery

    V-mount battery or BP-U compatible

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    BP-U series / V mount

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    4.9 x 4.2 x 4.2" / 124 x 107 x 106 mm

  • Weight

    3.02 lb / 1.37 kg (Body Only)

  • UPC Codes

    PL Mount: 6153055144121 | KineMOUNT: 6153051780781 | Sony E Mount: 6153057858811

8 Accessories for Kinefinity MAVO mark2 LF Digital Cinema Camera

  • All Accessories (8)
  • Microphones & Audio (2)
  • Flash & Lighting (6)

About Kinefinity MAVO mark2 LF Digital Cinema Camera

Why choose the Kinefinity MAVO mark2 LF Digital Cinema Camera for your filmmaking needs? This advanced camera inherits the exceptional full-frame 3:2 CMOS imaging sensor from the renowned MAVO Edge 6K, offering filmmakers an extra shallow depth of field and an immersive cinematic presence. The full-frame format is perfect for capturing stunning visuals with a professional touch.

The MAVO mark2 LF is built on the high-performance MAVO Edge computing platform, integrating industry-standard ports such as independent dual SDI outputs with metadata. It encodes breathtaking images as Apple ProRes4444/XQ footage onto NVMe M.2 2280 SSDs, ensuring a streamlined workflow. Housed in a lightweight, compact body, this camera provides cinematographers with a professional and efficient filmmaking experience.

Continuing the legacy of the MAVO Edge 6K, the MAVO mark2 LF features a remarkable 6K full-frame 3:2 CMOS imaging sensor, supporting high frame rates of up to 75fps at 6K Wide and 150fps at 4K Wide. Its dual native ISO settings of 5120/800 make it versatile for various lighting conditions. The industry-standard ISO 800 is ideal for normal lighting, while the second native ISO of 5120 excels in low-light scenarios, delivering clean images with high latitude and low noise. This makes it perfect for documentary filmmakers and those who prefer available light during night shoots.

Compared to its predecessor, the MAVO LF, the MAVO mark2 LF excels in retaining highlight details, making it ideal for complex lighting environments. It delivers organic images with a cinematic look, enhancing the storytelling experience.

The MAVO mark2 LF offers a comprehensive range of lens options with its interchangeable mount design, supporting cine PL/LPL lenses, DSLR EF lenses, and modern E mount lenses. This flexibility allows filmmakers to capture images with diverse styles and perspectives.

With its advanced platform, the MAVO mark2 LF supports direct recording of high-quality clips in Apple ProRes 422 LT to ProRes 4444XQ formats. The camera's architecture enables recording in ProRes4444XQ and Kine LOG3 Gamma, preserving the dynamic range data captured by its CMOS sensor for a fast post-production workflow.

The camera's SSD slot is based on PCIe, with recommended recording media being the proprietary KineMAG Nano 1TB/2TB NVMe M.2 2280 SSD. The KineMAG Nano SSD features read-only and RAID 5 safety features, ensuring data security during high-speed copying or writing. Its universal USB-C port allows data offloading to workstations at speeds up to 10Gbps.

The MAVO mark2 LF boasts an integrated body design, weighing only 1.35kg (2.98lbs), and is equipped with general control ports, dual SDI outputs with embedded metadata and audio, and high-quality multi-channel audio recording. Its comprehensive power solution includes a hybrid battery plate supporting 14.8V V-mount batteries like KineBAT PD 75w/150w, BP-U type batteries like GripBAT 4S, and NP-F550 type batteries like GripBAT 2S with Movcam's cage, the KineKit-Edge, for uninterrupted power supply via the UPS Baseplate.

Choose the Kinefinity MAVO mark2 LF Digital Cinema Camera for a versatile, high-performance, and efficient filmmaking experience that meets the demands of modern cinematography.

Kinefinity MAVO mark2 LF Digital Cinema Camera Features

  • 6K Full-Frame 3:2 CMOS imaging Sensor
  • Safe and Flexible Recording Media
  • Apple ProRes4444 Recording
  • Compact and Lightweight Camera Body
  • KineMAG SSD Recording
  • Hybrid battery plate supports 14.8V V-mount batteries or BP-U type batteries

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Full-frame 3:2 CMOS sensor for stunning cinematic visuals
  • Dual native ISO 5120/800 for versatile lighting conditions
  • High frame rates: 75fps at 6K Wide, 150fps at 4K Wide
  • Interchangeable lens mount for diverse shooting styles
  • Records in Apple ProRes4444XQ for high-quality footage
  • Lightweight design with integrated industry-standard ports

What's in the box:

  • Kinefinity MAVO Mark2 6K LF Digital Cinema Camera
  • Kinefinity 1 Year Limited Warranty
