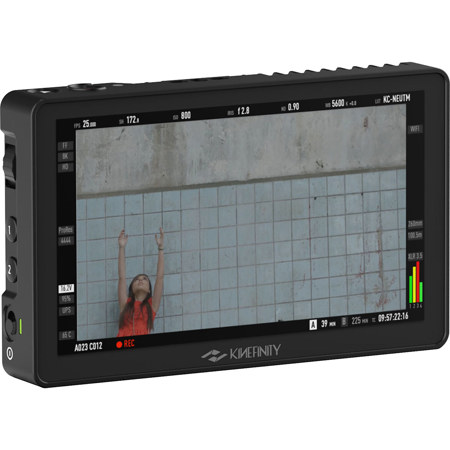

Kinefinity KineMON-5U II 5" Full HD Ultra-Bright On-Camera LCD Monitor

SKU: KFA12000101 MFR: A120-001-01
Earn VIP Reward Points

Key Features

  • Experience vibrant clarity with this 5" Kinefinity on-camera video monitor.
  • Enjoy a bright, clear view with the 2000 nit, full HD LCD monitor screen.
  • The responsive touchscreen ensures easy menu navigation for video pros.
  • Achieve accurate focus with a sharp 1920 x 1080 on-camera monitor display.
  • Lightweight aluminum build at only 9.2oz for comfortable on-camera use.
  • Versatile mounting via three 1/4"-20 threads for flexible video setups.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kinefinity KineMON-U II Specifications

Display

Display

Jump to...
  • Color/Monochrome

    Color

  • Panel Type

    LCD

  • Display Size

    5.0" (12.7cm)

  • Screen Resolution

    1920 x 1080 FHD

  • Aspect Ratio

    16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    2000 nits / cd/ sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    8-Bit (16.7 Million Colors)

  • Pixels Per Inch (ppi)

    441 ppi

Inputs / Outputs

Jump to...
  • Power I/O

    1x Proprietary Input

  • Power Consumption

    6 W

General

Jump to...
  • Mounting

    3x 1/4"-20 Female

  • Material

    Aluminum

  • Weight

    9.2 oz (260g)

About Kinefinity KineMON-U II

When it comes to capturing the perfect shot, the Kinefinity KineMON-5U II 5" Full HD Ultra-Bright On-Camera LCD Monitor is an essential tool for filmmakers and videographers. Designed specifically for the MAVO Edge, this ultra-bright monitor boasts a 2000nit Retina display, ensuring visibility even in direct sunlight. The 5-inch screen offers a 1080p full-HD resolution with 16 million colors, providing sharp and clear images that bring your vision to life.

The KineMON-5U II introduces a new touch screen function, allowing for intuitive operation. With just a tap, you can quickly adjust key parameters such as FPS, shutter speed, and ISO. The monitor's interface is complemented by MENU, Playback, and Wheel buttons, enhancing your control over the camera settings. Key features include the ability to toggle the monitor on or off with a simple push of the side power button, and an LED indicator to display the monitor's status.

In Live View mode, Button 1 activates the RGB histogram, while Button 2 allows you to zoom in on the viewfinder screen. The Wheel button provides access to the waveform diagram. In Playback mode, Buttons 1 and 2 let you navigate through clips, and the Wheel facilitates fast forward and reverse functions. Additional features include false color display based on the Arri False Color scale and peaking focus with adjustable sensitivity.

The KineMON-5U II is built on the innovative DirectClear platform, utilizing a powerful FPGA framework for optimized image processing. This results in ultra-low latency, reducing monitoring delay by 50% compared to traditional field monitors. The platform also ensures fast boot-up and power-off times, with the monitor consuming less than 6W at full brightness, significantly lower than conventional monitors.

Durability is a hallmark of the KineMON-5U II, featuring a full lamination screen with tempered glass for enhanced protection. The rugged milled aluminum case provides excellent heat dissipation, and the monitor's design includes a standard 1/4" threaded hole and two pin-holes for secure mounting. Various mounting options are available, including the KineMON Swivel Mount, Coldshoe Mount, Movcam Quick Plate, and a 6-inch Strong Arm with Damping, catering to diverse shooting scenarios.

The 2000nit high brightness screen, combined with OCR Full Lamination technology, ensures superior light transmission and reduced reflection, making it ideal for both indoor and outdoor use. The monitor's grease-proofing AF Coating keeps the screen clean and easy to maintain. With a 1920 x 1080 resolution, 100% Rec.709 Gamut, and a 1000:1 contrast ratio, the KineMON-5U II delivers a high standard Retina display that guarantees a sharp and clear image.

Note: The touch screen functionality of the KineMON-5U II is exclusively compatible with MAVO Edge cameras.

Kinefinity KineMON-U II Features

  • Ultra-bright 5" monitor dedicated to the MAVO/TERRA camera
  • Monitoring latency is reduced 50% compared to traditional field monitors
  • Boot up and power off almost instantly
  • KineMON-5U II uses no more than 6W when at full brightness
  • KineMON-5U II adopts natural rendering to restore details and natural colors to the image
  • 2000nit Display & High Brightness Screen

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience vibrant clarity with this 5" Kinefinity on-camera video monitor.
  • Enjoy a bright, clear view with the 2000 nit, full HD LCD monitor screen.
  • The responsive touchscreen ensures easy menu navigation for video pros.
  • Achieve accurate focus with a sharp 1920 x 1080 on-camera monitor display.
  • Lightweight aluminum build at only 9.2oz for comfortable on-camera use.
  • Versatile mounting via three 1/4"-20 threads for flexible video setups.

What's in the box:

  • Kinefinity KineMON-5U II 5" Full HD Ultra-Bright On-Camera LCD Monitor
  • Kinefinity 1 Year Limited Warranty
