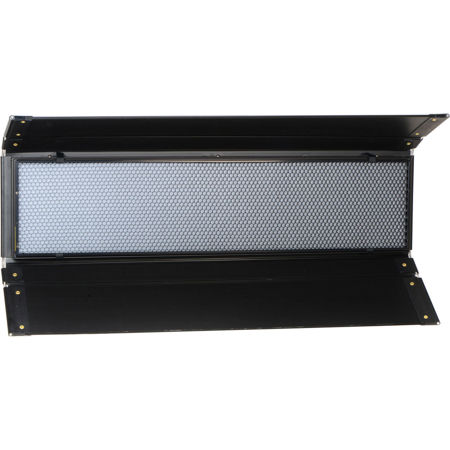

Kino Flo Diva-Lite LED 30 DMX Dimmable Light with Louver, Baby Receiver, Univ 120U

The Diva-Lite LED's blend Kino Flo's popular fixture with its tunable LED family line. The Diva-Lite LED lights feature dial-in variable color temperature control, full-range dimming and programmable 2700K to 6500K presets and DMX wireless capability. As with the Celeb and Select LED's, the Diva-Lite LED's soft white light doesn't flicker or shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range.

The Diva-Lite LED's feature a Green/Magenta control to match the spectral sensitive curves of the most popular cameras and other light sources on the set. With built-in DMX and Lumen Radio receivers, the Diva-Lite LED's can be controlled by DMX and/or DMX wireless. The Diva-Lite LED's run on universal input from 100-240VAC or 24VDC with as little 1.3A, 120VAC (Diva-Lite LED 30). With its versatility and unique features, the Diva-Lite LED is the perfect imaging tool for use in any studio production or on location.

LED Controller
• Kelvin presets & custom settings, 2700K-6500K
• Universal input 100VAC-240VAC or 24VDC
• Manual & DMX Dimming w/ Auto Terminate
• DMX wireless (Lumen Radio)
• Green/Magenta control
• Flicker-free, dead quiet operation

Diva-Lite LED Fixture
• Built-in Barndoors
• Removable Honeycomb Louver
• Center Mount

Diva-Lite LED Features
• Kelvin presets
• Dial-in color temperature control between 2700K-6500K
• Can use preset buttons to store custom Kelvin settings
• Light levels do not change when selecting Kelvin settings
• Color-correct with high color rendering index (CRI 95)
• Energy efficient, draws 1.3A, 120VAC and 7A, 24VDC (Diva-Lite LED 30)
• Full range onboard and DMX dimming
• DMX wireless link (Lumen Radio)
• DMX Auto Terminate
• Green/Magenta Control
• No color shift while dimming
• Fixture includes removable 90 degree Honeycomb Louver
• Mounts to stand, light enough to be hand-held

Diva-Lite 30 LED Fixture
The Diva-Lite LED fixture includes built-in DMX electronics with wireless capability, removable 90deg Honeycomb Louver and center mount with baby receiver lollipop. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

Diva-Lite LED DMX
The Diva-Lite LED DMX includes state of the art features with dial-in variable color temperature control, full-range dimming and programmable 2700-6500K presets. It operates flicker-free and does not shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range.

With built-in DMX and Lumen Radio receivers, the Diva-Lite LED's can be controlled by DMX and/or DMX wireless with DMX auto terminate. In addition, the Diva-Lite LED DMX features a Green/Magenta adjustment to match the spectral sensitive curves of the most popular cameras and other light sources. The energy efficient Diva-Lite LED DMX runs on universal input voltage from 100-240VAC at only 1.3A (120VAC) (Diva-Lite LED 30) or can also operate 24VDC using only 7A.

Diva-Lite LED DMX Control Panel

On /Off
On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied. The On/Off button only controls the light source.

Menu
Provides access to menu options such as General settings, DMX and DMX Wireless settings.

Kelvin/Hue Preset Buttons
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K; Hue value is 000. User can also use these preset buttons to store custom Kelvin and Hue settings.

Display
Provides access to Kelvin, Dim, Hue and DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, Hue = 000, DMX = 001.

Lock
Press the Lock button to disable all buttons and control knob. Press for 3 seconds to reset Kelvin/Hue preset buttons to factory settings.

Mode
Selects Hue, DMX, Dim and Kelvin settings. When in sub-menus, pressing Mode returns to main display.

Data Port
Mini B USB for software updates.

Dimmer Knob
Manually adjusts Kelvin, Dim, Hue levels and DMX channels. Press the knob to toggle between fine and coarse adjustments or when selecting options within menus.

DMX Note:

Each Diva-Lite LED DMX has an "AUTO TERMINATE" feature. The last fixture that does not have an XLR cable attached to the DMX "Out" port will automatically terminate.

Power

AC Input
The Diva-Lite LED DMX is powered AC and includes an IEC connection. It includes universal input from 100-240VAC.

DC Input
The Diva-Lite LED DMX can also be operated on 24VDC (input range 18-36VDC) through a 3-Pin xlr. The pin polarity is:

• Pin 1 - Ground
• Pin 2 - +18-36VDC
• Pin 3 - Not used

DMX Operation
The Diva-Lite LED DMX operates on three DMX channels using DMX512. The first channel operates dimming; the 2nd channel operates Kelvin color temperature control; the 3rd channel operates the Hue. Press the rotating knob once to shift between Fine (single digits) and Coarse (in 10th's) address selection.

Wireless Operation
The Diva-Lite LED DMX includes a built-in Lumen Radio receiver and can be operated wirelessly with a Lumen Radio transmitter (sold separately). Wireless is an option to using DMX cables.

Honeycomb Louver
The spread of the light is controlled by means of thin wall honeycomb louvers. The advantage of these louvers is the minimal loss of light. The Diva-Lite LED fixtures include a 90 degree louver. A 60 degree louver is also available as an accessory. They are lightweight and are held to the fixture with Velcro fasteners.

Case
The flight case (KAS-DL30) is well suited for long distance transport by sea or air. The rugged construction ensures that the system is well protected. The flight case holds one Diva-Lite LED fixture, an additional louver and a medium duty stand.

Diva-Lite LED Advantages

Energy Efficiency
The Diva-Lite LED DMX operates on universal AC power or battery power and needs only 1.3A at 120VAC or 7A at 24VDC (Diva-Lite LED 30). The Diva-Lite LED's cost savings from low energy and long LED life continues Kino Flo's reputation as an environmentally friendly lighting company.

Long LED Life
LED's are well known as being energy efficient, lasting for thousands of hours. While Kino Flo's Diva-Lite LED also has a long LED life, the Diva-Lite LED's unique design will maintain its color-correct color temperature.

True Match Color-Correct
As with all Kino Flo products, the Diva-Lite LED has been specially formulated to match the spectral distribution curves of today's HD film and video equipment. The Diva-Lite LED has a high color rendering index of CRI 95. Even while dimming, the fixture is flicker-free and without color shift.

Heat Management Design
For Kino Flo, heat management is a critical design element of fixture design. The physical heat or buildup heat within the LED fixture will directly influence the color temperature, lumen performance and life of an LED. The Diva-Lite LED's unique design operates coolly, consumes very low energy (1.3A, 120VAC) and is properly ventilated to maintain a stable color temperature. A well maintained temperature extends the lumen maintenance, color temperature and life of an LED.

Cost Savings
Cost savings cover a broad range of concerns.

Lower Energy Costs
Less heat so lower air conditioning expenses

Energy Savings Calculations
With the push for reducing fossil fuel consumption, TV studios are looking at cooler more efficient lighting systems to reduce the costs and save energy. Part of this process involves generating energy values to determine savings. One of the most important values is Btu/kWh.

British Thermal Units Per Kilowatt Hour
Any light generates a percentage of usable light and the rest in heat. For example, a standard incandescent light bulb converts only 11 percent of its electrical input into visible light, while the rest is dissipated directly as heat. There are energy costs involved in cooling the studio environment. The measure of Btu/kWh is a means of calculating the thermal loads related to operating lighting.

Use the following information to calculate Btu/kWh Watts to Btu:
• 1 kWh = 3413 Btu/Hr
• 1 Watt = 3.413 Btu/Hr
• 3.413 Btu per Watt-hour
