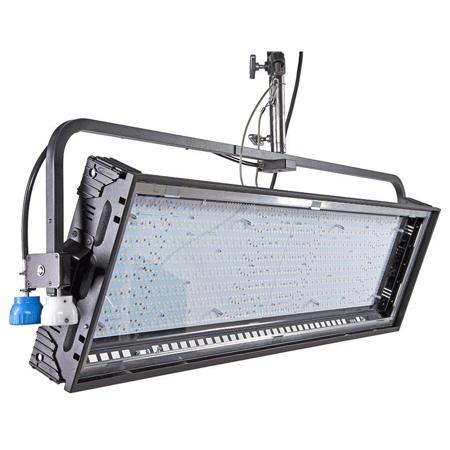

Kino Flo Image L40 54"x17" LED DMX Soft Light Fixture, Pole-Op

SKU: KFIMGL40PU MFR: IMG-L40PU
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with CRI 95 and TLCI 98 for professional-grade lighting.
  • Enjoy versatile bi-color LED lighting, adjustable from 2500-9900K, for any shooting environment.
  • Easily mount this 54"x17" light panel using the integrated 1-1/8" stud yoke mount.
  • Control brightness with the built-in dimmer, adjustable from 1-100% for perfect illumination.
  • This durable Kino Flo LED fixture offers consistent, flicker-free output at only 200W power.
  • Use DMX for advanced lighting control, ideal for studio setups and complex productions.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kino Flo Image L40 Pole Op Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Unspecified Color Temperature
    392fc / 4220Lux at 3.3 / 1 m
    56fc / 604Lux at 9.8 / 3m
    22fc / 238Lux at 16.4 / 5m

  • Color Accuracy Standard

    CRI 95, TLCI 98

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2500-9900K

  • Display

    LCD

  • Built-In Flash

    No

  • Dimming

    Built-In Dimmer (Continuous)- 1 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Power Source

    AC

  • Power Consumption

    200 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

Mounting

Jump to...
  • Fixture Mount

    1x 1-1/8" Stud (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    17" x 54"

  • Dimensions

    54 x 17 x 6.5" / 137.2 x 43.2 x 16.5cm (Fixture)

  • Weight

    27lb / 12.25kg (Fixture with Yoke)

About Kino Flo Image L40 Pole Op

After joining Kino Flo's esteemed line of LED soft lights, the Image L40 LED DMX Soft Light Fixture stands out with its substantial 54" x 17" panel, offering a broad and even light source for professional photographers and filmmakers. This durable and high-quality lighting solution delivers an impressive light output of 55FC at 10 feet (604 LUX at 3M), while maintaining energy efficiency with a low power consumption of just 2.0A at 120VAC.

The Image L40's versatile "All in One" design is equipped with both standard DMX in/out ports and wireless DMX connectivity via Lumen Radio, catering to the modern needs of seamless remote operation. The fixture's universal voltage input (100-240VAC) ensures it can be used in various locations without the need for additional power adapters.

This reliable LED panel comes complete with a removable gel frame and louver, and is available in both Yoke mount and Pole-Op models, the latter of which allows for easy height and angle adjustments from the ground using a long pole. The Pole-Op Yoke is designed for convenient hanging from a pipe grid, with a blue cup for Pan adjustments and a white cup for Tilt.

The Image L40 LED's advanced features include four menu options: White, two Color modes, and FX. The White menu allows for precise control over Dimming, Kelvin temperature, and Green/Magenta hues, with a dimming range from .02 to 100 percent, ensuring flicker-free operation suitable for high-speed camera work. The Kelvin temperature can be fine-tuned from a warm 2700K tungsten to a crisp 6500K daylight.

For creative lighting design, the Gels/Hue menu extends the Kelvin range from 2500K to 9900K and introduces a Gel channel with over 100 well-known lighting gel presets, including blue & green screen effects, sodium vapor, and mercury vapor simulations. The Hue Angle and Saturation channels in this menu enable the creation of over 2 million color combinations, providing unparalleled versatility for any production.

The RGB Color Mode offers individual control of red, green, and blue LEDs, compatible with apps that have predetermined RGB presets or color wheels, and is ideal for matching specific gel RGB values or DMX desk control.

Lastly, the FX (Effects) Mode, introduced on June 1, 2018, adds dynamic visual effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll, with several presets and adjustable parameters for each effect to enhance storytelling through lighting.

The Image L40 LED's slim, 6.5" deep design is constructed from a rugged metal alloy, ensuring it withstands the rigors of production environments. The fixture also includes four cardholders for added functionality.

With its comprehensive range of features and robust build, the Image L40 54"x17" LED DMX Soft Light Fixture, Pole-Op by Kino Flo is an efficient and reliable choice for professionals seeking superior lighting control and quality in their photographic and film productions.

Kino Flo Image L40 Pole Op Features

  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB Control
  • FX Control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC
  • Energy efficient, draws 2A, 120VAC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Metal Alloy fixture includes removable Gel Frame, Louver and cardholders
  • Slim profile
  • Mounts to stand or can hang easily from a grid

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with CRI 95 and TLCI 98 for professional-grade lighting.
  • Enjoy versatile bi-color LED lighting, adjustable from 2500-9900K, for any shooting environment.
  • Easily mount this 54"x17" light panel using the integrated 1-1/8" stud yoke mount.
  • Control brightness with the built-in dimmer, adjustable from 1-100% for perfect illumination.
  • This durable Kino Flo LED fixture offers consistent, flicker-free output at only 200W power.
  • Use DMX for advanced lighting control, ideal for studio setups and complex productions.

What's in the box:

  • Image L40 54 "x17 " LED DMX Soft Light Fixture
  • Gel Frame
  • Silver Louver
  • 4x Cardholders
  • Kino Flo 1 Year Warranty
