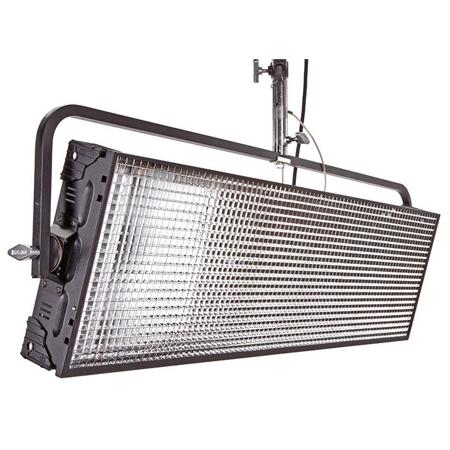

Kino Flo Image L40 54"x17" LED DMX Soft Light Fixture, Yoke Mount

SKU: KFIMGL40U MFR: IMG-L40U
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with a CRI of 95 and TLCI of 98 on this LED light panel.
  • Enjoy versatile lighting with a wide bi-color range from 2500K to 9900K for any scene.
  • Easily mount this 54"x17" Kino Flo light fixture using the included yoke with 1-1/8" stud.
  • Control brightness with the built-in dimmer, adjustable from 1-100% for perfect lighting.
  • This durable LED soft light fixture operates on AC power, consuming only 200W efficiently.
  • See precise settings on the LCD display for repeatable lighting with this Kino Flo panel.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kino Flo Image L40 54"x17" LED DMX Soft Light Fixture, Yoke Mount Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Unspecified Color Temperature
    392fc / 4220Lux at 3.3 / 1 m
    56fc / 604Lux at 9.8 / 3m
    22fc / 238Lux at 16.4 / 5m

  • Color Accuracy Standard

    CRI 95, TLCI 98

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2500-9900K

  • Display

    LCD

  • Built-In Flash

    No

  • Dimming

    Built-In Dimmer (Continuous)- 1 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    No Connection Included

  • Power Source

    AC

  • Power Consumption

    200 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

Mounting

Jump to...
  • Fixture Mount

    1x 1-1/8" Stud (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    17" x 54"

  • Dimensions

    54 x 17 x 6.5" / 137.2 x 43.2 x 16.5cm (Fixture)

  • Weight

    25lb / 11.34kg (Fixture with Yoke)

About Kino Flo Image L40 54"x17" LED DMX Soft Light Fixture, Yoke Mount

Experience the superior lighting quality of the Image L40 54"x17" LED DMX Soft Light Fixture, a proud addition to Kino Flo's esteemed line of LED soft lights. This high-performance fixture, measuring 54" x 17" (137cm x 43cm), delivers an impressive light output of 55FC at 10ft (604 LUX at 3M) while only consuming 2.0A (120VAC), making it an energy-efficient choice for professional lighting needs.

The Image L40 LED is designed with an "All in One" concept, featuring standard DMX in/out ports for cable and wireless DMX connectivity (Lumen Radio), making it a versatile option for various lighting setups. It operates on a universal voltage input of 100-240VAC, catering to global usage.

This LED fixture comes with a removable gel frame and louver, and is available in both Yoke mount and Pole-Op models. The Image L40 LED offers four menu options, including one white, two colors, and an FX menu, providing a wide range of lighting effects to suit your creative needs.

The White menu features include Dimming, Kelvin, and Green/Magenta control channels. The dimming range extends from .02 to 100 percent, ensuring flicker-free lighting that can be adjusted in both coarse and fine modes. The Kelvin range is tunable from 2700K tungsten to 6500K daylight, while the Green/Magenta control can be scaled from 0 to 100.

In the Gels/Hue menu, the Kelvin range extends to 2500K Kelvin to 9900K daylight, and includes a Gel channel with Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature, and the control knob allows for easy application and removal.

The Image L40 LED also includes a Hue Angle and Saturation channel, allowing for the creation of over 2 million color combinations. The RGB color menu provides individual control of red, green, and blue LEDs, making it ideal for working with apps with predetermined RGB presets or color wheels.

The FX (Effects) menu, introduced on June 1, 2018, offers popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Each effect comes with several presets and adjustable control parameters for maximum customization.

The Image L40 LED DMX fixture is available in Yoke Mount and Pole-Op styles. Its slim, 6.5" depth design is made of a rugged metal alloy with built-in electronics, ensuring durability and longevity. The Yoke Mount design offers two positions for the yoke brackets, providing flexibility when installing in studios with low ceilings.

Kino Flo Image L40 54"x17" LED DMX Soft Light Fixture, Yoke Mount Features

  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB Control
  • FX Control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC
  • Energy efficient, draws 2A, 120VAC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Metal Alloy fixture includes removable Gel Frame, Louver and cardholders
  • Slim profile
  • Mounts to stand or can hang easily from a grid

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with a CRI of 95 and TLCI of 98 on this LED light panel.
  • Enjoy versatile lighting with a wide bi-color range from 2500K to 9900K for any scene.
  • Easily mount this 54"x17" Kino Flo light fixture using the included yoke with 1-1/8" stud.
  • Control brightness with the built-in dimmer, adjustable from 1-100% for perfect lighting.
  • This durable LED soft light fixture operates on AC power, consuming only 200W efficiently.
  • See precise settings on the LCD display for repeatable lighting with this Kino Flo panel.

What's in the box:

  • Image L40 54 "x17 " LED DMX Soft Light Fixture
  • Gel Frame
  • Silver Louver
  • 4x Cardholders
  • Kino Flo 1 Year Warranty
