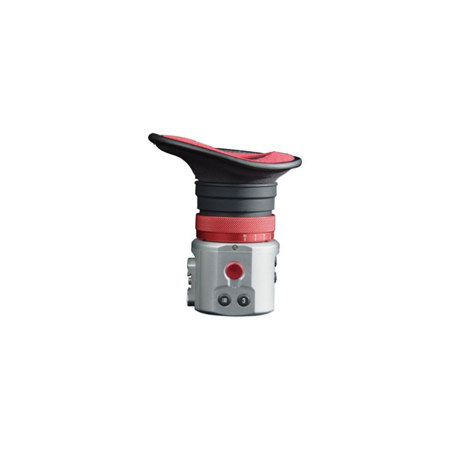

Kinefinity EAGLE SDI Full HD e-Viewfinder for Digital Cinema Camera Cyber

SKU: KFK11000102 MFR: K110-001-02
Earn VIP Reward Points

Key Features

  • Compatible with all cine cameras, supporting 3G SDI and HD SDI connectivity
  • Features a 0.7" Micro-OLED display with 1080P resolution for sharp, vibrant visuals
  • Offers 10-bit color processing for superior color depth and precision
  • Adjustable dioptre from -6D to +2D accommodates a range of vision needs
  • Noise-free and zero-delay performance ensures real-time image capture
  • Ultra-lightweight and compact design with quick 2-second boot-up time
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kinefinity EAGLE SDI Full HD e-Viewfinder for Digital Cinema Camera Specifications

Display

Display

Jump to...
  • Available Color

    Black, Cyber

  • Panel Type

    Micro-OLED

  • Display Size

    0.71" (1.8cm)

  • Resolution

    1920 x1080 (RGBx3)

  • Aspect Ratio

    16:9

  • Contrast Ratio

    >10,000:1

  • Color Depth

    10-bit Processing (8-bit Panel)

  • Pixel Per Inch (ppi)

    3103ppi

  • Field of View

    33 Degree

  • Distortion

    <1.5%

  • Dioptre

    -6D - +2D

  • Power Voltage Input

    7-24V

  • Power Consumption

    2.5W

Connections

Jump to...
  • SDI Input

    3G/1.5G SDI x1, Regular BNC

  • RS

    Rec Start/Stop with Power input (in Power port)

  • USB

    USB type-c for firmware upgrade

Interactive Interface

Jump to...
  • Indicator

    1x Power Switch
    5x Function Button
    1x Function Knob
    1x LOGO Tally
    1x Status Tally

  • Mount

    1x Rosette Mount with 1/4-20"
    1x Quick-lock Mount

Input Signal

Jump to...
  • 3G-SDI

    1080P @ 47.95p / 50p / 59.94p / 60p

  • HD-SDI

    1080P @ 23.98p / 24p / 25p / 29.97p / 30p / 23.98psf / 24psf / 25psf / 29.97psf / 50i / 59.94i / 60i

Features

Jump to...
  • Exposure

    Luma Waveform
    Luma / RGB Histogram
    False Color
    Zebra

  • Focus

    1:2 / 1:4 Magnification for focus Peaking

  • OSD

    Frame line
    Center marker
    Overlay Clear

  • Image

    Desqueeze (Anamorphic)
    Image Rotation
    Image Flip

  • More

    SDI Metadata
    Custom Button
    Noise-Free (no built-in fan)
    Zero-Delay

General

Jump to...
  • Material

    Aluminum Alloy, Steel, and Glass

  • Dimensions

    4.1 x 2.4 x 2.3" (105 x 62 x 58mm)

  • Weight

    12.2 oz (348g)

  • UPC Code

    6153057960937

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Kinefinity EAGLE SDI Full HD e-Viewfinder for Digital Cinema Camera

Take your cinematic production to the next level with the Kinefinity EAGLE SDI Full HD e-Viewfinder, designed for seamless integration with all cine cameras. This advanced e-viewfinder is equipped with SDI functionality, supporting both 3G SDI and HD SDI, which ensures universal connectivity across diverse setups. It accommodates 1080p and 1080i resolutions at frame rates from 23.97 to 60, making it an ideal choice for a wide range of cinematic applications.

The Kinefinity EAGLE SDI e-Viewfinder features a Full-HD 0.7" Micro-OLED display with a remarkable 1080P resolution. This display, enhanced by 10-bit processing, delivers exceptional color depth and precision, showcasing a vibrant spectrum of 16 million colors. The result is high contrast, true black and gray levels, and sharp imagery, which facilitate effortless focusing and exposure adjustments. The built-in dioptre, adjustable from -6D to +2D, caters to a wide range of vision needs, accommodating users with myopia and hyperopia, and ensuring a comfortable viewing experience.

Engineered for noise-free and zero-delay performance, the Kinefinity EAGLE SDI e-Viewfinder offers filmmakers unparalleled clarity and responsiveness. Its efficient design features 2.5W low power consumption and operates silently without an internal fan, thanks to its effective heat dissipation. The zero-delay capability allows for real-time image capture and seamless focusing, enhancing workflow efficiency and ensuring that no moment is missed.

Weighing in as the lightest and most compact option on the market, this e-viewfinder combines exceptional portability with robust features. Its streamlined design includes five function buttons, a power switch, and a function knob, along with essential assembly features such as the Rosette Mount and Movcam Quick-lock Mount. These elements ensure ease of use and adaptability to various shooting environments.

The Kinefinity EAGLE SDI e-Viewfinder is also designed for convenience, featuring a quick 2-second boot-up time, low power consumption, and support for RS triggering. These attributes make it an indispensable tool for filmmakers seeking a reliable and efficient e-viewfinder for their digital cinema cameras.

Kinefinity EAGLE SDI Full HD e-Viewfinder for Digital Cinema Camera Features

  • Compatible with all cine cameras, supporting 3G SDI and HD SDI
  • Full-HD 0.7" Micro-OLED display with 1080P resolution
  • 10-bit color processing with 16 million colors
  • Adjustable dioptre from -6D to +2D for vision needs
  • Noise-free, zero-delay performance with 2.5W power consumption
  • Ultra-lightweight, compact design with quick boot-up

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Compatible with all cine cameras, supporting 3G SDI and HD SDI connectivity
  • Features a 0.7" Micro-OLED display with 1080P resolution for sharp, vibrant visuals
  • Offers 10-bit color processing for superior color depth and precision
  • Adjustable dioptre from -6D to +2D accommodates a range of vision needs
  • Noise-free and zero-delay performance ensures real-time image capture
  • Ultra-lightweight and compact design with quick 2-second boot-up time

What's in the box:

  • Kinefinity EAGLE SDI Full HD e-Viewfinder
  • SDI e-Viewfinder Cord (D-Tap/40cm)
  • Kinefinity 1 Year Limited Warranty
