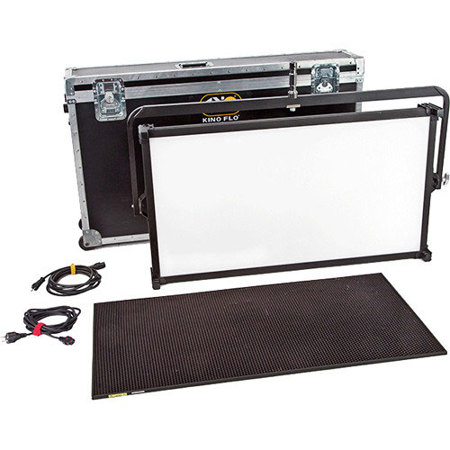

Kino Flo Celeb 850 DMX LED Fixture with Yoke Mount and Ship Case, 2500-9900K, 50x28x5" Panel, Universal Input

The Celeb 850 LED DMX joins Kino Flo's family line of LED soft lights. One of the largest LED's in the industry, the Celeb 850 Center Mount measures 50 x 28". Light output is 111FC at 10ft (1251 LUX at 3M) but only uses 5.0A (120VAC). The Celeb 850 has three Menu options, one white and two color menus. Those who prefer to work with white light can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.

In the color menu, the Kelvin range travels from 2500K tungsten to 9900K daylight and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave similar to a traditional color wheel, where you have white light in the center and the Hue angle determines the color along a 360-degree range and Saturation determines how much color is applied.

The second color menu provides individual red, green, blue (RGB) control. The RGB menu is a great way to work with apps with predetermined RGB presets or color wheels. Kino Flo's Celeb 850 LED also comes with standard DMX and wireless DMX (Lumen Radio) and universal voltage input 100-240VAC (5.0 Amps at 120V).

Celeb 850 LED DMX Advantages

Energy Efficiency
The Celeb 850 LED DMX operates on universal AC power and needs only 5.0A (120VAC). The Celeb's cost savings from low energy and long lamp life continues Kino Flo's reputation as an environmentally friendly lighting company.

All-in-one Design
The Celeb 850 LED DMX is comprised of a rugged metal alloy fixture which includes state of the art electronics with onboard and DMX dimming and runs universally at 100-240VAC. With three menus, White and two Color menus, presets can be fine-tuned to custom settings from 2700K to 6500K in the white menu and custom settings from 2500K to 9900K in the color menus. In the white menu, the user has access to Green/Magenta control.

In the first color menu, there are three additional channels, Gels, Hue Angle and Saturation. In the second color menu, the user has access to individual Red, Green, Blue (RGB) control which works great with Apps with predetermined RGB presets or color wheels.

Light levels do not change when selecting Kelvin settings and there is no color shift while dimming. With its slim profile design, the Celeb LED includes a removable honeycomb louver. The molded corner accessory holders can also be used as a 4-point rope hang. With wireless capability, the Celeb 850 LED can be operated DMX wirelessly as an alternative to DMX cables. The all-in-one design with universal VAC and DMX operation makes the Celeb 850 LED a versatile and portable tool whether it's in the studio or on location.

Yoke Mount
The Yoke Mount fixture includes a welded alloy yoke bale offering unlimited orientation of fixture movement to focus the light when lighting from a grid. The Yoke Mount can attach to stands or studio grid hardware via a standard junior pin and a Junior Pin Assembly (MTP-I80).

Ship case
The metal valence ship case is recommended for transport by sea or air. The yoke ship case (KAS-CE850-Y) holds one Celeb LED Yoke Mount and two louvers.

Long LED Life
Rated lifetime is up to 50,000 hours. With its long LED life, the Celeb's unique design maintains its color-correct color temperature.

True Match Color-Correct
As with all Kino Flo products, the Celeb 850 LED has been specially formulated to match the spectral distribution curves of today's HD film and video equipment. The Celeb LED has a high color rendering index of CRI 95. Even while dimming, the fixture is flicker-free and without color shift.

Heat Management Design
For Kino Flo, heat management is a critical design element of fixture design. The physical heat or buildup heat within the LED fixture will directly influence the color temperature, lumen performance and life of the LED.

The Celeb's unique design operates coolly, consumes very low energy (5.0A, 120VAC) and is properly ventilated to maintain a stable color temperature. A well maintained temperature extends the lumen maintenance, color temperature and life of the LED.

Cost Savings
Cost savings attributed to the Celeb 850 LED cover a broad range of concerns:
• Low energy costs
• Less heat so low air conditioning expenses

Energy Savings Calculations
With the push for reducing fossil fuel consumption, TV studios are looking at cooler more efficient lighting systems to reduce the costs and save energy. Part of this process involves generating energy values to determine savings. One of the most important values is Btu/kWh.
