Kino Flo Diva-Lite 31 LED DMX Fixture with Center Mount and Travel Case, 37.5x9.5x4.5" Panel, Universal Input

SKU: KFKITDL31XU MFR: KIT-DL31XU
Earn VIP Reward Points

Key Features

  • Achieve professional lighting with the Kino Flo Diva-Lite 31 LED panel, perfect for studio work.
  • Enjoy superior color accuracy (CRI 95) with this LED light, ensuring true-to-life tones in every shot.
  • Easily adjust color temperature from 2500-9900K on this bi-color LED panel to match any ambient light.
  • This portable LED panel includes a travel case, making it ideal for on-location photography and video.
  • Experience flicker-free dimming from 1-100% with the built-in dimmer for precise light control.
  • The Kino Flo Diva-Lite 31 offers even light output, enhancing your subject's features beautifully.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kino Flo Diva-Lite 31 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Unspecified Color Temperature
    229fc / 2470Lux at 3.3 / 1 m
    28fc / 312Lux at 9.8 / 3m
    10fc / 117Lux at 16.4 / 5m

  • Color Accuracy Standard

    CRI 95

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2500-9900K

  • Display

    Yes

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    Built-In Dimmer (Continuous)- 1 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    XLR

  • Battery

    1x D-Tap Rechargeable, 24 VDC (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    150 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 1.3 A

  • DC Input Power

    24 VDC

Mounting

Jump to...
  • Fixture Mount

    1x Lollipop Receiver

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    10" x 37"

  • Dimensions

    37.5 x 9.5 x 4.5" / 95.2 x 24.1 x 11.4cm (Fixture with Yoke)

  • Weight

    13.9lb / 6.3kg (Fixture with Mount)

  • UPC Code

    192223060913

About Kino Flo Diva-Lite 31

For professional photographers and videographers seeking a versatile, high-quality, and portable lighting solution, the Diva-Lite 31 LED DMX Fixture with Center Mount and Travel Case is an excellent choice. This durable and efficient lighting unit, redesigned by Kino Flo, is a popular choice for interviews and small studio setups.

The Diva-Lite 31 LED DMX Fixture boasts a compact design that fits into a smaller travel case, making it ideal for location work. It also features a low-profile design that is perfect for studios with low ceilings. The fixture comes with a honeycomb Louver, available in 90% or 60%, which can be easily attached or removed to control the direction and coverage of the light.

This versatile lighting unit is equipped with standard DMX in/out ports for cable and wireless DMX connectivity via Lumen Radio®. It operates on universal AC voltage input 100-240vac (1.25 Amps at 120vac) or a 3-Pin XLR for 24vdc operation (6.25A), making it adaptable to various power sources.

The Diva-Lite 31 LED DMX Fixture offers four menu options: one white, two color, and an FX menu. The white menu allows for dimming, Kelvin, and Green/Magenta control channels, with a dimming range from .02 to 100 percent without introducing any flicker. The Kelvin range is tunable from 2700K tungsten to 6500K daylight, while the Green/Magenta control can be scaled from 0 to 100.

In the Gels/Hue menu, the Kelvin range extends to 2500K Kelvin to 9900K daylight, and a fourth channel called Gel is introduced. This channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature.

The Diva-Lite 31 LED DMX Fixture also includes a Hue Angle and Saturation channel, which behave similar to a traditional color wheel, allowing for over 2 million color combinations. The RGB color menu gives individual control of red, green, and blue LEDs, making it perfect for working with apps with predetermined RGB presets or color wheels.

The FX (Effects) menu provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Each effect comes with several presets and control parameters that can be altered to create the desired lighting effect.

The Diva-Lite 31 LED DMX Fixture is designed with built-in barndoors and a removable 90-degree honeycomb louver. The center mount with baby receiver lollipop can mount directly onto a baby stand or hang from a grid with a baby pipe clamp.

With its energy efficiency, long LED life, true match color-correct feature, and heat management design, the Diva-Lite 31 LED DMX Fixture is an environmentally friendly lighting solution that maintains its color-correct color temperature even while dimming.

The Diva-Lite 31 LED DMX Fixture comes with a clamshell travel case, making it easy to transport. This lighting unit is a versatile tool in the studio or on location, providing a wide range of lighting options for creative control.

Kino Flo Diva-Lite 31 Features

  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • No color shift while dimming
  • Fixture includes removable 90 deg. Honeycomb Louver
  • Honeycomb louver also available in 60 deg. as accessory
  • Center Mount
  • Mounts to stand, light enough to be hand-held

Product Documents

User Manual

Key Features

  • Achieve professional lighting with the Kino Flo Diva-Lite 31 LED panel, perfect for studio work.
  • Enjoy superior color accuracy (CRI 95) with this LED light, ensuring true-to-life tones in every shot.
  • Easily adjust color temperature from 2500-9900K on this bi-color LED panel to match any ambient light.
  • This portable LED panel includes a travel case, making it ideal for on-location photography and video.
  • Experience flicker-free dimming from 1-100% with the built-in dimmer for precise light control.
  • The Kino Flo Diva-Lite 31 offers even light output, enhancing your subject's features beautifully.

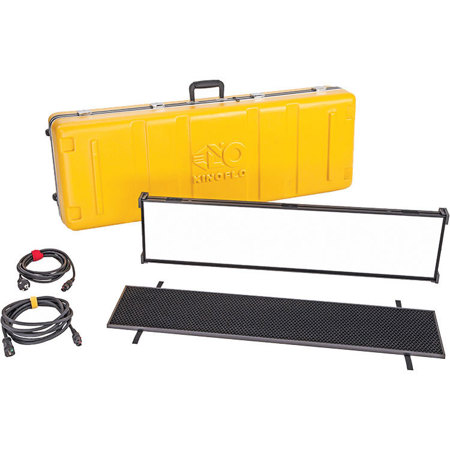

What's in the box:

  • Kino Flo DIV-L31XCU Diva-Lite 31 LED DMX Fixture
  • Centre Mount
  • KAS-DL31-C Travel Case
  • MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)
  • 90 deg. Honeycomb Louver
  • Kino Flo 1 Year Limited Warranty
