Kino Flo FreeStyle 21 LED DMX Fixture Kit with Flight Case, 26.5x13x3.5"Panel, Universal Input

SKU: KFKITF21U MFR: KIT-F21U
Earn VIP Reward Points

Key Features

  • Achieve stunning color accuracy with this LED light panel, boasting a CRI of 96 for true-to-life tones.
  • Enjoy bi-color flexibility with a wide 2500-9900K range, perfect for matching any ambient lighting.
  • This Kino Flo FreeStyle 21 LED fixture is travel-ready, complete with a durable flight case for protection.
  • Precisely control your lighting with the built-in dimmer, adjustable from 0 to 100% for perfect shots.
  • Experience flicker-free lighting, ideal for high-speed photography and video recording projects.
  • The compact 13" x 26" LED panel is easy to mount, making it a versatile addition to any studio setup.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kino Flo FreeStyle 21 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    Unspecified Color Temperature: 165fc / 1778Lux at 3.3 / 1 m
    661fc / 7113Lux at 1.6 / 0.5m
    104fc / 1121Lux at 4.9 / 1.5m
    59fc / 634Lux at 6.6 / 2m
    38fc / 412Lux at 8.2 / 2.5m
    27fc / 288Lux at 9.8 / 3m
    20fc / 212Lux at 11.5 / 3.5m
    15fc / 164Lux at 13.1 / 4m
    12fc / 131Lux at 14.8 / 4.5m
    10fc / 106Lux at 16.4 / 5m

  • Color Accuracy Standard

    CRI 96, TLCI 96

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2500-9900K

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    Built-In Dimmer (Continuous)- 0 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    XLR

  • Power Source

    AC/DC

  • Power Consumption

    150 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    24 VDC

Mounting

Jump to...
  • Fixture Mount

    1x Lollipop Receiver

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    13" x 26"

  • Dimensions

    23 x 11.5" / 58.4 x 29.2cm (Fixture Panel) 26.5 x 13 x 3.5" / 67.3 x 33 x 8.9cm (Fixture)

  • Weight

    7lb / 3.2kg11.5lb / 5.2kg (Fixture with Mount)

Models
Kino Flo FreeStyle 21 LED DMX Fixture Kit with Flight Case, Universal Input
$4,139.50

$4,870.00

Save:$730.50 (15%)

Special Order

Generally ships in 7-14 days, subject to availability

Kino Flo FreeStyle Air Max 150W RGB LED Panel Light w/Universal DMX Travel Kit
$4,250.00

$5,000.00

Save:$750.00 (15%)

Special Order

Generally ships in 7-14 days, subject to availability

Kino Flo Image L40 54"x17" LED DMX Yoke Mount Kit with Ship Case
$4,309.50

$5,070.00

Save:$760.50 (15%)

Special Order

Generally ships in 7-14 days, subject to availability

Kit Style1 Light Kit1 Light Kit1 Light Kit
Power SourceAC/DCAC/DCAC
Color TemperatureBi-ColorRGB Color TunableBi-Color
Battery ConnectionXLRNo Connection IncludedNo Connection Included
Color Temperature Range2500-9900K2500-9900K2500-9900K
Panel Size13" x 26"40" x 22"17" x 54"

About Kino Flo FreeStyle 21

Enhance your creative lighting capabilities with the FreeStyle 21 LED DMX Fixture Kit, a revolutionary product from Kino Flo. This award-winning kit is designed for flexibility and convenience, featuring a quick-release mechanism that allows you to detach the LED panel from the fixture. This reduces the weight by almost half, from 11.6 lbs to 7 lbs, and offers a more compact form for superior rigging flexibility.

The LED panel is equipped with corner bumpers, enabling it to be hung from a rope or wire. It also features a Twist-On mount for easy setup on light stands. The kit includes a programmable FreeStyle controller, a 25' Head Cable, a complete fixture with a removable LED panel, and a twist-on KinoGrip Center Mount.

The FreeStyle 21 is renowned for its superior white light quality, with a rating of >96. It offers full hue and saturation color, a wide range of cinema gel choices, and RGB chromatic selection, all controlled via the AC/DC FreeStyle 150Watt controller. The built-in Lumen Radio wireless DMX eliminates the need for additional wireless receiver accessories, and the light can be operated up to 50 feet away from the controller using Kino Flo head cables.

The advanced driver technology ensures bright, soft light with continuous dimming from 100% to 0% on a linear or square curve, without flickering at higher camera speeds or varied shutter angles. The color and luminosity remain stable over the LED's rated life, thanks to Kino Flo's advanced True Match daylight and tungsten color management system.

The FreeStyle 21 LED DMX Fixture Kit also includes a range of effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll, with several presets and adjustable control parameters for each effect. The color menu offers a Kelvin range from 2500K tungsten to 9900K daylight, and includes presets for blue & green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels.

The FreeStyle 151 LED DMX controller is equipped with standard DMX in/out ports for cable, as well as wireless DMX connectivity (Lumen Radio). It features universal AC voltage input 100-240vac (1.25 Amps at 120vac) and a 3-Pin XLR for 24vdc operation (6.25A).

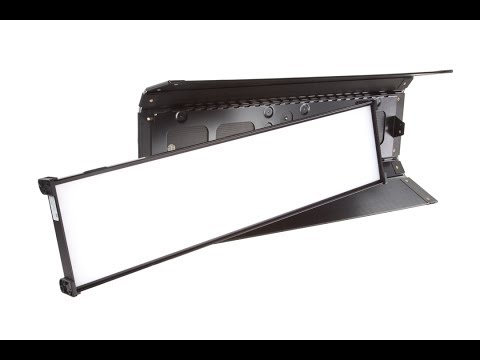

The FreeStyle 21 LED Fixture includes built-in barndoors and is comprised of a removable LED panel and Louver. The LED panel can be removed from the fixture housing by pressing the locking pin and turning the thumbscrew. The fixture has a twist-on mating plate to accept a twist-on mount. The LED panel also has a twist-on mating plate to accept a removable twist-on mount and has molded corners for additional rigging options.

The FreeStyle LED DMX operates on universal AC power or battery power and needs only 1.25A at 120VAC or 6.25A at 24VDC. The FreeStyle LED's cost savings from low energy and long LED life continues Kino Flo's reputation as an environmentally friendly lighting company.

The kit comes with a rugged flight case (KAS-DL20) that is perfect for long-distance transport by sea or air. The case can hold one FreeStyle 21 LED system, an additional louver, and a medium-duty stand.

In summary, the FreeStyle 21 LED DMX Fixture Kit offers a versatile, energy-efficient, and high-quality lighting solution for all your creative needs.

Kino Flo FreeStyle 21 Features

  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • FX Control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC (FreeStyle 21)
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate

Product Documents

User Manual

Key Features

  • Achieve stunning color accuracy with this LED light panel, boasting a CRI of 96 for true-to-life tones.
  • Enjoy bi-color flexibility with a wide 2500-9900K range, perfect for matching any ambient lighting.
  • This Kino Flo FreeStyle 21 LED fixture is travel-ready, complete with a durable flight case for protection.
  • Precisely control your lighting with the built-in dimmer, adjustable from 0 to 100% for perfect shots.
  • Experience flicker-free lighting, ideal for high-speed photography and video recording projects.
  • The compact 13" x 26" LED panel is easy to mount, making it a versatile addition to any studio setup.

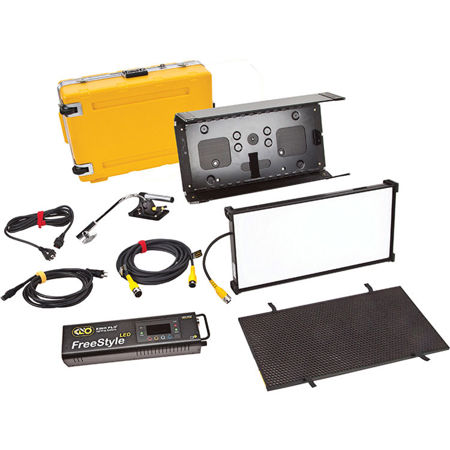

What's in the box:

  • Kino Flo CFX-F21 FreeStyle 21 LED Fixture with Removable Center Mount
  • LED-151X FreeStyle 151 LED DMX Controller
  • MTP-BG41 Mount with 16mm Baby Receiver
  • X12-25 25' Extension Cable
  • 90 deg. Honeycomb Louver
  • KAS-DL20 Flight Case
  • Kino Flo 1 Year Limited Warranty (90 Day on Case)
