What is included in the Gaffer/FreeStyle 31 LED DMX 2-Light Kit?

The kit includes a bi-color 10" x 40" panel, a ship case for storage and transportation, and a FreeStyle controller. It also comes with a head cable for operation from a distance.

What is the color temperature range of the LED panel in the kit?

The LED panel in the Gaffer/FreeStyle 31 LED DMX 2-Light Kit has a color temperature range of 2500-9900k, providing a high degree of control and flexibility in terms of lighting effects.

What power sources is the Gaffer/FreeStyle 31 LED DMX 2-Light Kit compatible with?

The Gaffer/FreeStyle 31 LED DMX 2-Light Kit is compatible with both AC and DC power sources, making it versatile for use in a variety of locations and situations.

What are some of the lighting effects that the Gaffer/FreeStyle 31 LED DMX 2-Light Kit offers?

The kit offers a range of lighting effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. These effects come with several presets and control parameters that can be altered for additional variation.

Does the Gaffer/FreeStyle 31 LED DMX 2-Light Kit come with a wireless DMX?

Yes, the kit features built-in Lumen Radio wireless DMX, eliminating the need for extra cost for wireless receiver accessories.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kino Flo Gaffer/FreeStyle 31 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    2

  • Fixture Type

    Light Panel

  • Photometrics

    Unspecified Color Temperature 224fc / 2409Lux at 3.3 / 1 m 675fc / 7270Lux at 1.6 / 0.5m 111fc / 1190Lux at 4.9 / 1.5m 64fc / 683Lux at 6.6 / 2m 41fc / 445Lux at 8.2 / 2.5m 29fc / 312Lux at 9.8 / 3m 22fc / 233Lux at 11.5 / 3.5m 17fc / 181Lux at 13.1 / 4m 14fc / 146Lux at 14.8 / 4.5m 11fc / 117Lux at 16.4 / 5m

  • Color Accuracy Standard

    CRI 96, TLCI 96

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2500-9900K

  • Built-In Flash

    No

  • Cooling System

    Passive

  • Dimming

    Built-In Dimmer (Continuous)- 0 to 100%

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    XLR

  • Power Source

    AC/DC

  • Power Consumption

    150 W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    24 VDC

Mounting

Jump to...
  • Fixture Mount

    1x Lollipop Receiver

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    10" x 40"

  • Dimensions

    37.5 x 9.5" / 95.3 x 24.1cm (Fixture Panel) 40.5 x 11 x 3.5" / 102.9 x 27.9 x 8.9cm (Fixture)

  • Weight

    9lb / 4.1kg15lb / 6.8kg (Fixture with Mount)

About Kino Flo Gaffer/FreeStyle 31

Before you dive into your next professional filming or photography project, consider the Gaffer/FreeStyle 31 LED DMX 2-Light Kit with Ship Case. This durable and high-quality lighting kit is designed to meet the demands of professional photographers and filmmakers. It's a versatile solution that offers a wide range of applications, from film and television to photography.

This kit includes a bi-color 10" x 40" panel with a color temperature range of 2500-9900k, providing you with a high degree of control and flexibility in terms of lighting effects. The panel's corner bumpers allow for easy hanging from rope or wire, and the twist-on mount is perfect for use on light stands.

The Gaffer/FreeStyle 31 LED DMX 2-Light Kit is compatible with both AC and DC power sources, making it a reliable choice for use in a variety of locations and situations. The kit also includes a ship case for secure storage and transportation of your equipment.

The FreeStyle 31 LED DMX 2-Light Kit is known for its superior white light, full hue and saturation color, and cinema gel choices. It also features RGB chromatic selection via the AC/DC FreeStyle 150Watt controller. With built-in Lumen Radio wireless DMX, there's no need for extra cost for wireless receiver accessories.

The light can be operated directly up to 50 feet away from the controller via Kino Flo head cables. The Freestyle's driver technology ensures bright, soft light with continuous dimming from 100% to 0% on a linear or square curve without flicker at higher camera speeds or at varied shutter angles.

With the Gaffer/FreeStyle 31 LED DMX 2-Light Kit, you can expect stable color and luminosity over the rated life of the LEDs, thanks to Kino Flo's advanced True Match daylight and tungsten color management system.

The kit also includes a range of effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. These effects come with several presets and control parameters that can be altered for additional variation.

The Gaffer/FreeStyle 31 LED DMX 2-Light Kit with Ship Case is not just a lighting kit; it's a comprehensive solution for professional lighting needs. It's designed to provide you with the flexibility, control, and quality you need to produce the best possible results in your filming or photography projects.

Kino Flo Gaffer/FreeStyle 31 Features

  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • FX Control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC (FreeStyle 31)
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate

Product Documents

User Manual

Key Features

  • Compatible with both AC and DC power sources, perfect for use in various locations and situations
  • Includes a ship case for secure storage and transportation of equipment
  • Features built-in Lumen Radio wireless DMX for seamless operation and control

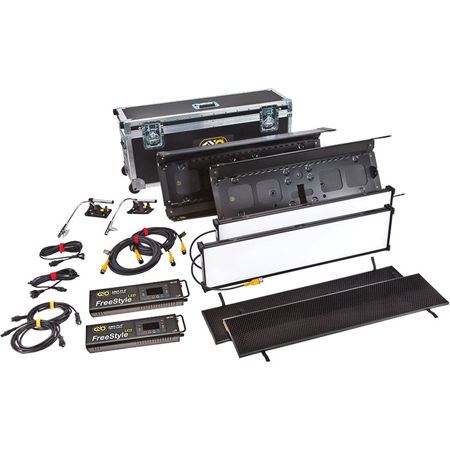

What's in the box:

  • Kino Flo 2x CFX-F31 FreeStyle 31 LED Fixture with Removable Center Mount
  • 2x LED-151X FreeStyle 151 LED DMX Controller
  • 2x MTP-BG41 Mount with 16mm Baby Receiver Curve
  • 2x X12-25 25' Extension Cable
  • 2x 90 deg. Honeycomb Louver
  • KAS-FS32 Ship Case
  • Kino Flo 1 Year Limited Warranty
