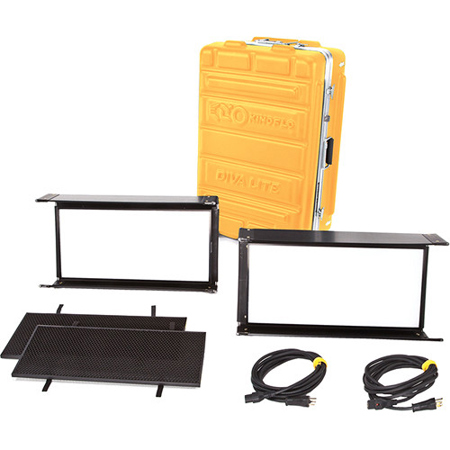

Kino Flo Diva-Lite LED 20 DMX 2-Light Kit (Univ 120U), Includes 2x Louver, 2x MTP-LBC 41 Lollipop with 16mm Baby Receiver Curve & Flight Case

The Diva-Lite LED's blend Kino Flo's popular fixture with its tunable LED family line. The Diva-Lite LED lights feature dial-in variable color temperature control, full-range dimming and programmable 2700K to 6500K presets and DMX wireless capability. As with the Celeb and Select LED's, the Diva-Lite LED's soft white light doesn't flicker or shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range.

The Diva-Lite LED's feature a Green/Magenta control to match the spectral sensitive curves of the most popular cameras and other light sources on the set. With built-in DMX and Lumen Radio receivers, the Diva-Lite LED's can be controlled by DMX and/or DMX wireless.

LED Controller
• Kelvin presets & custom settings, 2700K-6500K
• Universal input 100VAC-240VAC or 24VDC
• Manual & DMX Dimming w/ Auto Terminate
• DMX wireless (Lumen Radio)
• Green/Magenta control
• Flicker-free, dead quiet operation

Diva-Lite LED Fixture
• Built-in Barndoors
• Removable Honeycomb Louver
• Center Mount

Diva-Lite LED Features
• Kelvin presets
• Dial-in color temperature control between 2700K-6500K
• Can use preset buttons to store custom Kelvin settings
• Light levels do not change when selecting Kelvin settings
• Color-correct with high color rendering index (CRI 95)
• Universal input 100VAC-240VAC or 24VDC
• Flicker-free, dead quiet operation
• Full range onboard and DMX dimming
• DMX wireless link (Lumen Radio)
• DMX Auto Terminate
• Green/Magenta Control
• No color shift while dimming
• Fixture includes removable 90deg. Honeycomb Louver
• Built-in Barndoors
• Center Mount
• Mounts to stand, light enough to be hand-held

Diva-Lite 20/30 LED Fixture
The Diva-Lite LED fixture includes built-in DMX electronics with wireless capability, removable 90deg. Honeycomb Louver and center mount with baby receiver lollipop. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

• Kelvin presets
• Dial-in color temperature control between 2700K-6500K
• Can use preset buttons to store custom Kelvin settings
• Light levels do not change when selecting Kelvin settings
• Color-correct with high color rendering index (CRI 95)
• Universal input 100VAC-240VAC or 24VDC
• Flicker-free, dead quiet operation
• Full range onboard and DMX dimming
• DMX wireless link (Lumen Radio)
• DMX Auto Terminate
• Green/Magenta Control
• No color shift while dimming
• Fixture includes removable 90deg. Honeycomb Louver
• Built-in Barndoors
• Center Mount
• Mounts to stand, light enough to be hand-held

Diva-Lite LED DMX
The Diva-Lite LED DMX includes state of the art features with dial-in variable color temperature control, full-range dimming and programmable 2700-6500K presets. It operates flicker-free and does not shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range. With built-in DMX and Lumen Radio receivers, the Diva-Lite LED's can be controlled by DMX and/or DMX wireless with DMX auto terminate.

In addition, the Diva-Lite LED DMX features a Green/Magenta adjustment to match the spectral sensitive curves of the most popular cameras and other light sources.

Honeycomb Louver
The spread of the light is controlled by means of thin wall honeycomb louvers. The advantage of these louvers is the minimal loss of light. The Diva-Lite LED fixtures include a 90deg. louver. A 60deg. louver is also available as an accessory. They are lightweight and are held to the fixture with Velcro fasteners.

Flight case
A 2-Unit flight case (KAS-DL22) is also available. The flight case holds two (2) Diva-Lite LED 20 fixtures, two (2) medium duty stands and space for two additional louvers.

Diva-Lite LED Advantages

All-in-one Design
The Diva-Lite LED is comprised of a lightweight fixture design with built-in barndoors and a removable 90deg. honeycomb louver. The center mount with baby receiver lollipop can mount directly onto a baby stand or hang from a grid with a baby pipe clamp. The Diva-Lite LED features state of the art electronics with onboard and DMX dimming with DMX auto terminate. The push-button Kelvin presets can be fine-tuned to custom settings from 2700K to 6500K with a turn of a dial. Light levels do not change when selecting Kelvin settings.

The Diva-Lite LED also features a Green/Magenta control to match the spectral sensitive curves of the most popular cameras and other light sources on the set. With built-in DMX and Lumen Radio receivers, the Diva-Lite LED's can be controlled by DMX and/or DMX wireless.

Long LED Life
LED's are well known as being energy efficient, lasting for thousands of hours. While Kino Flo's Diva-Lite LED also has a long LED life, the Diva-Lite LED's unique design will maintain its color-correct color temperature.

True Match Color-Correct
As with all Kino Flo products, the Diva-Lite LED has been specially formulated to match the spectral distribution curves of today's HD film and video equipment. The Diva-Lite LED has a high color rendering index of CRI 95. Even while dimming, the fixture is flicker-free and without color shift.

Heat Management Design
For Kino Flo, heat management is a critical design element of fixture design. The physical heat or buildup heat within the LED fixture will directly influence the color temperature, lumen performance and life of an LED. The Diva-Lite LED's unique design operates coolly, consumes very low energy (1.3A, 120VAC) and is properly ventilated to maintain a stable color temperature. A well maintained temperature extends the lumen maintenance, color temperature and life of an LED.

Cost Savings
Cost savings cover a broad range of concerns:

• Lower energy costs
• Less heat so lower air conditioning expenses

Energy Savings Calculations
With the push for reducing fossil fuel consumption, TV studios are looking at cooler more efficient lighting systems to reduce the costs and save energy. Part of this process involves generating energy values to determine savings. One of the most important values is Btu/kWh.

British Thermal Units per Kilowatt Hour
Any light generates a percentage of usable light and the rest in heat. For example, a standard incandescent light bulb converts only 11 percent of its electrical input into visible light, while the rest is dissipated directly as heat. There are energy costs involved in cooling the studio environment. The measure of Btu/kWh is a means of calculating the thermal loads related to operating lighting.
