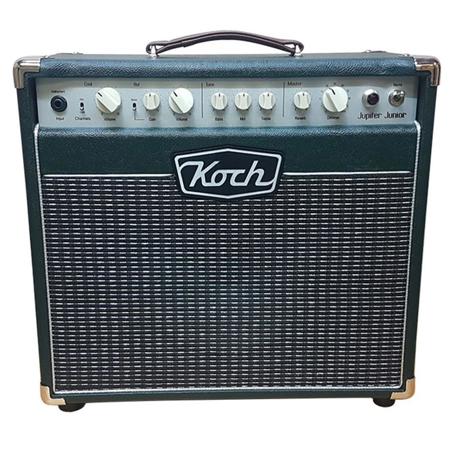

KOCH Jupiter Junior 20W Combo Amplifier with 1x10" Speaker

SKU: KHJ20C110

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

KOCH Jupiter Junior Specifications

  • Technology

    Hybrid

  • Power

    20W

  • Channels

    2

  • Loudspeakers

    1x 10"

  • Loudspeaker Type

    Jensen Falcon C10-40

  • EQ

    Treble, Middle, Bass

  • Inserts

    Series

  • Pre Amp Valves

    1x 12AX7

  • Power Amp Valves

    1x 12AX7

  • Effects

    Hall / Reverb

  • Output for Extension Speakers

    Yes

  • Special Functions

    DI output with speaker simulation, power adjustable from 20W to 0W

  • Dimensions (WxHxD)

    45 x 42 x 23.5cm (17.72 x 16.54 x 9.25")

  • Weight

    12kg (26.46 lbs)

About KOCH Jupiter Junior

The Koch Jupiter Junior is a 20 Watt boutique, vintage style combo amp based on his bigger brother the "Jupiter 45". Driven by two 12AX7 tubes, split between the power amp and pre-amp sections, the Jupiter Junior is a flexible hybrid amplifier. Using Koch's ATR (Authentic Tube Response) technology, the rest of the solid-state circuit simulates the feel of a full-fledged tube amp. This means that you can attain that genuine tube sound but at a great, affordable price. And the use of only 2 tubes also minimizes the chance of failure, meaning that the Jupiter Junior is a very reliable amp that is ideal for small to medium-sized club gigs with its 20W of power.

Despite its small stature, the Jupiter Junior is crammed full of features. You can easily switch up your sound with its 3 distinct channels - Cool (clean), Hot (overdrive) and Hot Gain Boost. The Cool channel boasts a bright and chimey clean, with plenty of rounded warmth and a clear upper mid-range. Crank the amplifier and it will break up nicely, offering a snappy bite that's great for pokey blues tones.

The Hot channel is a slightly different beast, with a smooth overdrive tone that's perfect for warm lead tones. Turn up the mids and treble and you'll get a far more punchy sound that's ideal for old-school AC/DC-style riffing! Activate the Hot Gain Boost and you'll get an even raunchier drive tone, offering more saturation and hair. With enough gain to get to hard rock levels, this channel can certainly dish the dirt, especially when used in conjunction with humbucker-equipped guitars.

The Jupiter Junior may be easily mistaken as a vintage-inspired amp from its 60s-esque aesthetics, but it also has some cutting-edge features to meet the demands of modern players. On the rear panel of the amp, you'll find a recording output with a passive speaker emulation filter, giving you a convincing mic'd amp sound. This means that you can quickly record studio-quality audio into an interface or even send a signal directly to a front-of-house PA system for a bigger live sound.

You'll also come across the amp's buffered serial effects loop at the back of the amp. This can allow you to run you time-based and modulation effects at the optimal operation, with the buffer ensuring that their signal is strong and vibrant. This means that you won't suffer from any tone loss by running multiple pedals through the loop.

KOCH Jupiter Junior Features

  • 20W Hybrid ATR amplifier (ATR = Authentic Tube Response)
  • 1x 12AX7 tube in the pre-amp
  • 1x 12AX7 tube in the power amp
  • Three foot-switchable channels - Cool (clean), Hot (overdrive) and Hot Gain Boost
  • Volume control for the Cool channel and separate Gain and Volume controls for the Hot channel
  • Passive Bass-Mid-Treble tone controls for both channels
  • Spring emulated reverb with Volume control
  • Dimmer for continuous control of the output power between 0W and 20W
  • Buffered serial effects loop
  • Recording output with passive speaker emulation filter
  • Speaker on/off switch for silent recording
  • Extension speaker jack
  • 1x 10" Jensen Falcon C10-40 speaker
  • 2-way footswitch not included
