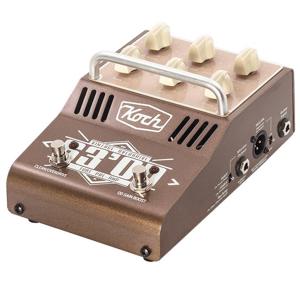

KOCH Pedaltone II Tube Guitar Pre-Amplifier

SKU: KHPDT24

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KOCH Pedaltone II Specifications

  • Technology

    Analog

  • Channels

    2

  • Inserts

    Series

  • Recording Out

    Yes

  • Tubes

    Four 12AX7

  • Power Supply input

    12 VAC

  • Dimensions (WxDxH)

    31 x 23.5 x 8.5cm (12.20 x 9.25 x 3.35")

  • Weight

    3kg (6.61 lbs)

  • UPC Code

    8718053961187

About KOCH Pedaltone II

When Dolf Koch decided to design a tube preamp for guitar, he felt it should combine as many high quality features as possible. The result of his effort is the Pedaltone. Heavy duty components, housed in a stainless steel shell, combine two individually controlled channels with a host of options that leave the user with no less than 16 separate sounds at his discression!

Channel 1 Clean, Channel 1 Enhanced, Channel 2 Distortion and Channel 2 Distortion Boost provide the first four sounds. The first three 12AX7 preamp tubes send these classic Koch tones to virtually any input imaginable: from your favorite amp to any type of recording/PA console. The fourth 12AX7 tube acts as a 0.5 watt Power Amp, with its own Gain & Volume controls, adding depth and attitude. In the original version this feature was called "Power Amp" but in version II we named it "OTS" (Output Tube Saturation).

It has also been redesigned for a fatter tone and relocated Post effects loop instead of pre effects loop. Combining this OTS feature to any of the first four sounds now gives the user the option of eight individual and unique settings. The final feature on the Pedaltone, the famous Koch Solo/Rhythm control, has been replaced with two separate foot-switchable Master Volumes: Rhythm and Solo volume. Engaging this feature allows the user two (foot-switchable) volume levels per setting (a user controllable 'Rhythm' and a user controllable 'Solo' volume) doubling the number of settings available to 16. Last but not least, the FX Loop allows the addition of your favorite effects, while the Headphone jack allows the Pedaltone to be used anywhere anytime.

OTS Function Explained
OTS stands for Output Tube Saturation. We have built in an All-tube, single-ended, 0,5W power amp with drive and volume controls. This will give you the effect of an all-tube amp fully driven. What you'll hear is a great saturated sound from power tubes played to their max capacity. This function can be added on all channels and thus gives you more sounds at your disposal. The OTS is placed between the pre-amp and power-amp section. This function is a unique "Koch" feature!

KOCH Pedaltone II Features

  • Four 12AX7 Pre-amp Tubes
  • Clean channel with separate gain, volume, tone controls and a foot-switchable Enhance function
  • Distortion channel with separate gain, volume, tone controls and a foot switchable High-Gain Boost function
  • Two separate Masters providing two controllable volume levels for all channels and settings
  • All tube single-ended 0.5 watt Power Amp (OTS) with drive and volume controls, foot switchable for all channels
  • Five independent outputs (Power Amp/0dBm, FX Return/-10dBm, Amp Input/-20dBm,Recording/-10dBm & speaker simulation, Headphones/ 0dBm & speaker simulation)
  • Fully buffered Serial Effects loop
  • 12 VAC Power Supply input - mains adapter is included

What's in the box:

  • KOCH Pedaltone II Tube Guitar Pre-Amplifier
  • AC Adapter
  • KOCH Warranty
