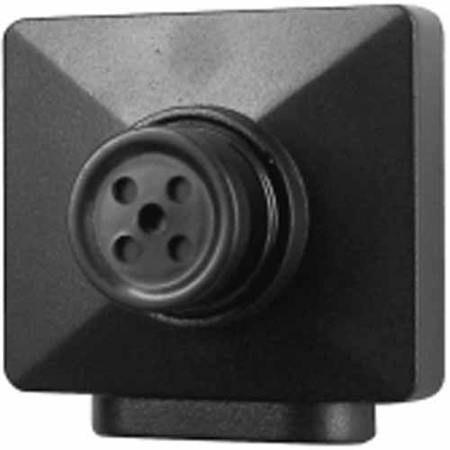

KJB Security Products C1023 2MP Button Camera Set, 4.3mm Lens, 1920x1080

SKU: KJBC1023

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KJB Security Products C1023 Specifications

  • Video Resolution

    > 1200 TVL

  • Pixel Size

    2.8 x 2.8 um

  • Resolution

    1920 x 1080

  • Image Sensor

    Sony 1/2.8" progressive-scan CMOS

  • Illumination

    0.08 lux, f/2.0 (50 IRE)

  • Aperture

    f/2.0

  • Lens Diameter

    4.3mm

  • Angle of View

    78 deg.

  • Depth of Field

    20" / 508.00mm

  • Electronic Shutter

    1/8 to 1/30,000

  • Video Output

    RAW Dana

  • Audio Output

    2 Vpp (maximum)

  • Impedance

    10 kOhms

  • AGC

    > 52 db (AGC off)

  • S/N Ratio

    36dB maximum

  • Power Supply Voltage

    3.3 VDC +/- 5%

  • Power Current

    200mA

  • Operating Temperature

    14 to 140 deg. F / -10 to 60 deg. C

  • Operating Humidity

    20 to 90%

  • Storage Temperature

    -22 to 176 deg. F / -30 to 80 deg. C

  • Dimensions

    1.2 x 1.2 x 0.8" / 30.48 x 30.48 x 20.32mm

  • Weight

    0.35oz / 9.92g

About KJB Security Products C1023

For professional-grade surveillance, the C1023 2MP Button Camera Set is an exceptional choice, seamlessly integrating with KJB Security Products' DVRs to create a comprehensive recording solution. This compact button camera boasts a high-resolution 2MP digital CMOS sensor, ensuring that every video is captured with crystal-clear quality in full 1080P high definition.

The camera's 4.3mm lens is designed to provide a wide field of view (FOV) of 78 degrees, allowing for extensive coverage of the environment without compromising on detail. Whether you're recording video or taking snapshots, the C1023 Button Camera captures every moment with precision and clarity.

Designed for covert operations, this miniature button camera is virtually undetectable, making it an ideal tool for discreet surveillance in a variety of settings. The camera also features Wide Dynamic Range (WDR) technology, which enhances the video quality under diverse lighting conditions, ensuring that both bright and dark areas are visible and well-detailed.

An external microphone is included with the camera set, providing high-quality audio recording to complement the stunning video footage. This feature is crucial for capturing the full context of events as they unfold.

For ease of use and quick data transfer, the camera comes equipped with a USB connection, allowing for simple connectivity to computers and other devices. The C1023 Button Camera is compatible with the LawMate Part Number CMD-BU20U, and when used in conjunction with KJB Security Products DVR506 and DVR1100, it forms the perfect body-worn camera and recorder set for law enforcement, private investigators, or anyone in need of reliable, portable surveillance.

This button camera set is not only a testament to the advanced technology of KJB Security Products but also a versatile tool for capturing high-quality video and audio discreetly and efficiently.

KJB Security Products C1023 Features

  • 2MP digital CMOS button camera for high-resolution 1080P video recording
  • Wide 78-degree field of view with a 4.3mm lens for comprehensive coverage
  • Covert miniature design ideal for discreet surveillance applications
  • Equipped with WDR technology for clear video quality in varying lighting
  • External microphone for crisp audio recording to complement visuals
  • USB connectivity for quick and easy data transfer to other devices

Key Features

  • 2MP digital CMOS button camera for high-resolution 1080P video recording
  • Wide 78-degree field of view with a 4.3mm lens for comprehensive coverage
  • Covert miniature design ideal for discreet surveillance applications
  • Equipped with WDR technology for clear video quality in varying lighting
  • External microphone for crisp audio recording to complement visuals
  • USB connectivity for quick and easy data transfer to other devices

What's in the box:

  • KJB Security Products C1023 2MP Button Camera
  • 110cm Camera Cable
  • 30cm Camera Cable
  • Button Set
  • External Microphone
  • KJB Security Products 1 Year Limited Warranty
