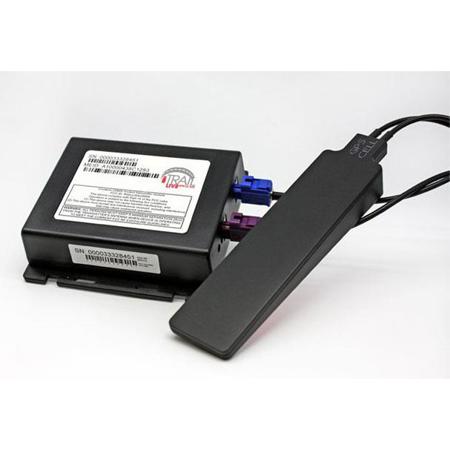

KJB Security Products GPS911 Convoy Hardwired Worldwide GSM GPS Tracker

SKU: KJBGPS911

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

KJB Security Products GPS911 Specifications

  • Digital Inputs

    6

  • Relay Drive Outputs

    4 (150mA max. each)

  • Status LEDs

    2; GPS and Cellular

  • Analog Input

    1

  • LED Drive Output

    1

  • Switched 12V Output

    1 (1.2A max.)

  • RS-232 Port

    1 (5-wire)

  • 1-Wire Port

    Dallas iButton, Temp Sensors

  • Communication

    Quad-Band: CDMA 2000 1xRTT (IS-2000)
    Class 1 (Tx: 1850-1910MHz) for 1930/1990 Bands
    Class 0 (Tx: 824-849MHz) for 869/894 Bands

  • Operating Voltage

    8 to 30V DC; Power Consumption: (typical, at 12.8 vdc)

  • Time-to-First-Fix

    27s (at -147dBm, Cold start)

  • Horizontal Accuracy

    2.5m, 2.0m SBAS (CEP 50%)

  • 147dBm Cold start (un-aided)

    147dBm (un-aided)

  • Sensitivity

    161dBm Tracking, Nav, Reacquisition

  • GPS Receiver

    50-Channel L1 C/A Code, WAAS/SBAS

  • GPS Technology

    SuperSense Technology

  • Shock and Vibration

    SAE J1455EMC/EMI: SAE J1113

  • Humidity

    5 to 95% non-condensing

  • Storage

    -40 to 185 deg. F / -40 to 85 deg. C

  • Operating Temperature

    -22 to 185 deg. F / -30 to 85 deg. C

  • Operating Current

    95mA (avg), 680mA (peak Tx)

  • Sleep (Ignition Only Wake-Up)

    <1mA

  • Standby 1 (Local Wake-Up)

    13mA

  • Standby 2 (SMS/UDP Wake-Up)

    24mA

  • Dimensions (L x W x H)

    4.125 x 4.25 x 1" / 104.78 x 107.95 x 25.40mm

  • Weight

    5oz / 141.75g

  • UPC Code

    738549883968

About KJB Security Products GPS911

It's time to upgrade your asset tracking with the high-tech GPS911 Convoy Hardwired Worldwide GSM GPS Tracker. This advanced device offers global coverage, utilizing GSM networks to provide reliable, real-time tracking of your vehicles or other valuable assets, no matter where in the world they may be.

Designed with sophistication and durability in mind, this professional-grade GPS tracker is hardwired directly into your vehicle's power source. This ensures a secure and uninterrupted connection, eliminating the worry of battery failure. Plus, it features a 12-hour backup battery for added peace of mind.

Whether you're managing a large fleet or a single vehicle, this innovative GPS tracker is equipped with smart features to meet your needs. It offers location updates at intervals of 10, 30, or 60 seconds, providing you with up-to-the-minute information about your vehicle's whereabouts.

The GPS911 Convoy Tracker also boasts an auto sleep mode to conserve energy when the vehicle is stationary, and a web-based software that's compatible with both PC and MAC systems. This allows you to monitor your vehicle's movement, speed, and direction, receive alerts for arrivals, departures, and low battery, and even access historical playback and text reports.

The device also features a unique LiveShare feature, powered by KJB iTrail Live, which provides an exclusive GPS tracking platform. Subscription plans offer unlimited data, alerts, and report generation, with options for 1-minute or 30-second updates.

Please note that once your tracker has been installed, it may take up to 24 hours for it to connect and begin reporting. If service is inactive for 60 days or more, the device may need to be returned for reactivation.

In summary, the GPS911 Convoy Hardwired Worldwide GSM GPS Tracker is a smart, sophisticated solution for all your asset tracking needs. Its advanced features and worldwide compatibility make it an invaluable tool for businesses and individuals alike.

KJB Security Products GPS911 Features

  • Advanced hardwired GPS tracker compatible with worldwide GSM networks
  • Professional-grade design with a 12-hour backup battery for reliable tracking
  • Offers real-time location updates at intervals of 10, 30, or 60 seconds
  • Features auto sleep mode and web-based software compatible with PC and MAC
  • Includes text message alerts for arrivals, departures, and low battery
  • Comes with exclusive LiveShare feature powered by KJB iTrail Live for enhanced tracking

Key Features

  • Advanced hardwired GPS tracker compatible with worldwide GSM networks
  • Professional-grade design with a 12-hour backup battery for reliable tracking
  • Offers real-time location updates at intervals of 10, 30, or 60 seconds
  • Features auto sleep mode and web-based software compatible with PC and MAC
  • Includes text message alerts for arrivals, departures, and low battery
  • Comes with exclusive LiveShare feature powered by KJB iTrail Live for enhanced tracking

What's in the box:

  • KJB Security GPS911 Convoy Hardwired Worldwide GSM GPS Tracker Base Unit
  • Wiring Harness
  • Antenna
  • KJB Security 1 Year Limited Warranty
