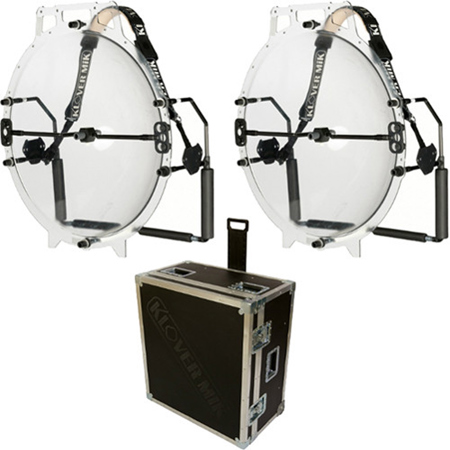

Klover MiK 26 Dual Parabolic Collector with Sound Devices MM-1 Amplifier, Countryman B3 Lavalier Microphone, Real Audio HN7506 Headphones and KK-26-BD Carrying Case

SKU: KLKERAKKDUAL MFR: KM-26-K-MD-MKE-RA-KK-DUAL
Earn VIP Reward Points

Key Features

  • Capture distant audio clearly with this Klover MiK 26 parabolic microphone system.
  • Achieve professional sound quality with the included Sound Devices MM-1 Amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture in any setting.
  • Monitor your audio precisely with the Real Audio HN7506 headphones included in the kit.
  • Easily transport and protect your gear with the durable KK-26-BD carrying case.
  • Enjoy low noise and high-fidelity audio for film, nature recording, and surveillance.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Klover MiK 26 Dual Parabolic Collector,MM-1 Amp,B3 Mic, HN7506 Headphones & Case Specifications

Parabolic Collector

Parabolic Collector

Jump to...
  • Range

    500 to 600'

  • Microphone

    Omnidirectional pattern - 20mm Diameter or lavalier

  • Dish outside diameter

    26" (66.04cm)

  • Parabolic diameter

    23.5" (59.69cm)

  • Dish thickness

    1/4"

MM-1 Amplifier

Jump to...
  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

B3 lavaliere microphone

Jump to...
  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

HN7506 Headphone

Jump to...
  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

General

Jump to...
  • Dimensions

    Parabolic Collector: 26.12 x 28.62 x 10" (66.34 x 72.69 x 25.40cm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    B3 microphone: 0.23 x 0.18" (5.84 x 4.57mm)
    Case: 32 x 32 x 12.25" (81.28 x 81.28 x 31.12cm)

  • Weight

    Parabolic Collector: 7.5 lbs (3.40kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    B3 microphone: 0.012 oz (0.34g)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover MiK 26 Dual Parabolic Collector,MM-1 Amp,B3 Mic, HN7506 Headphones & Case

Become a master of long-distance audio capture with the MiK 26 Dual Parabolic Collector kit. This comprehensive set includes the Klover MiK 26, our largest parabolic microphone, renowned for transforming your omni-directional mic into a super long-range audio capturing device. This kit is a favorite in the broadcast industry, frequently spotted on the sidelines of professional football games, and is also utilized for military, tactical, fire, and rescue applications.

The Klover MiK 26 Parabolic Collector is designed to capture conversations from up to 600 feet away, making it an ideal tool for surveillance, broadcasting, panel discussions, open meetings, houses of worship, and nature studies. Its patented modular design ensures easy transport and allows for individual components to be replaced if damaged. The handles and microphone yoke are designed to protect the more expensive collector dish, and the collector dish itself is stackable for easy transportation without scratching the critical internal surface.

The MiK 26's "True" parabolic shape focuses all sound energy on a single point, ensuring crisp and clear audio recording. Unlike competitor's dishes, the MiK 26 eliminates unwanted noises through the incorporation of vibration isolation components in all connections. This feature, combined with the rigid design of the handles, prevents distortion of the dish and eliminates noise caused by rapid motion of the dish.

The kit also includes the Sound Devices MM-1 Microphone Preamplifier, a single-channel, portable device with a powerful headphone monitoring function. This high-performance preamp features an "unclippable" dual-stage limiter and two-position high-pass filter, providing low-noise, low-distortion gain at all switch positions.

The Countryman B3 Lavalier Microphone, a water-resistant, miniature, omni-directional condenser microphone with an XLR connector, is also part of this comprehensive kit.

For monitoring your recordings, the kit includes the Real Audio HN7506 headphones. These headphones offer up to 45dB of outside ambience sealing, allowing for accurate, full-range monitoring in loud environments. They are designed to sound like the industry standard Sony MDR-7506 headphones, ensuring consistency in monitoring standards.

Finally, the kit is completed with the KK-26-BD Carrying Case, a lightweight, roto-molded case with custom foam inserts for protection. This case is designed to carry or store a single assembled KM-26 parabolic microphone with the amplifier in place, providing a convenient and economical solution for transportation and storage.

In summary, the MiK 26 Dual Parabolic Collector kit offers a comprehensive solution for long-distance audio capture, providing superior performance, versatility, and convenience.

Klover MiK 26 Dual Parabolic Collector,MM-1 Amp,B3 Mic, HN7506 Headphones & Case Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter @ 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Key Features

  • Capture distant audio clearly with this Klover MiK 26 parabolic microphone system.
  • Achieve professional sound quality with the included Sound Devices MM-1 Amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture in any setting.
  • Monitor your audio precisely with the Real Audio HN7506 headphones included in the kit.
  • Easily transport and protect your gear with the durable KK-26-BD carrying case.
  • Enjoy low noise and high-fidelity audio for film, nature recording, and surveillance.

What's in the box:

  • 2x Klover MiK 26 Parabolic Collector with Neck Straps
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Countryman B3 Lavalier Microphone
  • Real Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector and Detachable 3.5mm Stereo Mini Plug
  • KK-26-BD Carrying Case
  • Klover 1 Year Limited Warranty (2 Year on Amplifier and 1 Year on Mic/Headphones)
