Klover Mik 16 Kit, Includes KM-16 Parabolic Microphone, Sound Devices MM-1 Amplifier, Countryman B3 Lavalier Microphone, Remote Audio HN7506 Headphone & KKB-16 Carrying Bag

SKU: KLKM16B3RACB MFR: KM-16-K-MM-B3-RA-CB
Be the first to review this itemAsk a Question
$2,509.00
OR
$210/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture distant audio with the Klover Mik 16 Kit's parabolic microphone, reaching up to 300 feet.
  • Achieve crystal-clear sound with low noise thanks to the included Sound Devices MM-1 Amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture in any environment.
  • Enjoy pristine audio monitoring with the Remote Audio HN7506 headphones' wide frequency response.
  • Durable nylon carrying bag protects your shotgun microphone kit for on-the-go recording sessions.
  • Customize your sound with switchable phantom power on the MM-1 Amplifier for optimal performance.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, B3 Mic, HN7506 Headphone & Bag Specifications

Parabolic Collector

Parabolic Collector

Jump to...

  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MM-1 Amplifier

Jump to...

  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

B3 lavaliere microphone

Jump to...

  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

HN7506 Headphone

Jump to...

  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

Carrying Bag

Jump to...

  • Material

    Nylon

General

Jump to...

  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    B3 microphone: 0.23 x 0.18" (5.84 x 4.57mm)
    Carrying Bag: Approx. 18 x 18 x 6" (457.20 x 457.20 x 152.40mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    B3 microphone: 0.012 oz (0.34g)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, B3 Mic, HN7506 Headphone & Bag

Explore the world of professional audio recording with the Mik 16 Kit, a comprehensive and high-quality audio equipment set. This kit includes the KM-16 Parabolic Microphone, Sound Devices MM-1 Amplifier, Countryman B3 Lavalier Microphone, Remote Audio HN7506 Headphones, and a KKB-16 Carrying Bag.

The KM-16 Parabolic Microphone, a mid-sized, long-range microphone, transforms your omni-directional mic into a device capable of capturing conversations from up to 300 feet away. Its unique, modular design features specially-designed handles and a microphone yoke, safeguarding the collector dish from potential damage. The KM-16's true parabolic shape focuses all sound energy on a single point, delivering clear and crisp audio recording that outperforms competitors.

The Sound Devices MM-1 Microphone Preamplifier is a single-channel, portable device with a powerful headphone monitoring function. Its transformer-balanced input and output, along with a bipolar +/-15 volt power supply, ensure low-noise, low-distortion gain at all switch positions.

The Countryman B3 Lavalier Microphone is a water-resistant, miniature, omni-directional condenser microphone with an XLR connector. It's designed to be worn by a person, capturing sound directly from their mouth for a more natural and ambient sound capture.

The Remote Audio HN7506 Headphones provide a comfortable and high-quality listening experience. They offer extreme isolation from outside noise, making them perfect for monitoring recordings in loud environments. These headphones use Sony MDR-7506 drivers with special baffling, ensuring accurate, full-range monitoring.

Finally, the KKB-16 Carrying Bag, constructed of durable nylon and soft foam padding, provides a convenient and safe way to transport and store your equipment.

Whether you're in broadcasting, security, or nature study, the Mik 16 Kit is a versatile and professional solution for all your audio recording needs.

Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, B3 Mic, HN7506 Headphone & Bag Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter at 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture distant audio with the Klover Mik 16 Kit's parabolic microphone, reaching up to 300 feet.
  • Achieve crystal-clear sound with low noise thanks to the included Sound Devices MM-1 Amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture in any environment.
  • Enjoy pristine audio monitoring with the Remote Audio HN7506 headphones' wide frequency response.
  • Durable nylon carrying bag protects your shotgun microphone kit for on-the-go recording sessions.
  • Customize your sound with switchable phantom power on the MM-1 Amplifier for optimal performance.

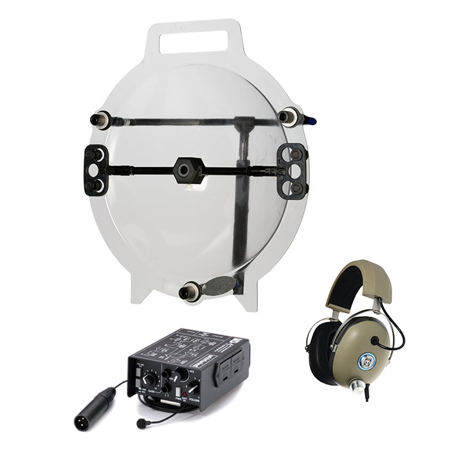

What's in the box:

  • Klover KM-16 Parabolic Collector
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Countryman B3 Lavalier Microphone
  • Remote Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector
  • 3.5mm Stereo Mini Plug
  • KKB-16 Carrying Bag
  • Klover 1 Year Limited Warranty (1 Year on Mic/Headphones & 2 Year on Amplifier)
