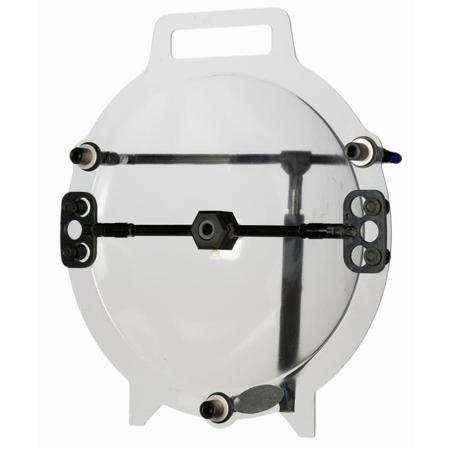

Klover Mik 16 Kit, Includes KM-16 Parabolic Microphone, Sound Devices MM-1 Amplifier, Sennheiser MKE-2 Microphone, Remote Audio HN7506 Headphone & KKB-16 Carrying Bag

SKU: KLKM16KERACB MFR: KM-16-K-MM-MKE-RA-CB
Earn VIP Reward Points

Key Features

  • Capture crisp audio from 300 feet away with this parabolic microphone kit, ideal for nature recording.
  • Experience low noise and high gain with the MM-1 amplifier, enhancing your audio clarity for any project.
  • The Sennheiser MKE-2 microphone delivers exceptional sound quality with a wide 20Hz-20kHz frequency range.
  • Enjoy hands-free monitoring with Remote Audio HN7506 headphones, designed for comfort and accurate sound.
  • This Klover Mik 16 Kit includes a durable nylon carrying bag, protecting your equipment on every shoot.
  • Achieve professional audio with switchable 12V or 48V phantom power, offering versatile connectivity options.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, MKE-2 Mic, HN7506 Headphone & Bag Specifications

Parabolic Collector

Parabolic Collector

Jump to...
  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MM-1 Amplifier

Jump to...
  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

MKE-2 microphone

Jump to...
  • Frequency Response

    20Hz to 20kHz +/- 3dB

  • Polar Pattern

    Omnidirectional

  • Sensitivity (free field, no load) (1kHz)

    10 mV/Pa +/-2.5 dB

  • Equivalent Acoustic Noise

    24dB SPL A-Weighted

  • Maximum Sound Pressure

    150 dB (48V, 1mV/Pa mike)

  • Power Requirements

    9V to 48V Phantom (4mA at 48V)

  • Output Impedance

    600 ohms, balanced

  • Output Connector

    XLR-3 Male

HN7506 Headphone

Jump to...
  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

Carrying Bag

Jump to...
  • Material

    Nylon

General

Jump to...
  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    MKE-2 microphone: 0.23 x 0.18" (0.58 x 0.46cm)
    Carrying Bag: Approx. 18 x 18 x 6" (457.20 x 457.20 x 152.40mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    MKE-2 microphone: 0.012 oz (0.34g)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, MKE-2 Mic, HN7506 Headphone & Bag

-KM-16 Parabolic Microphone -
The Klover MiK 16 is our mid-size parabolic microphone. It turns your omni-directional mic into a long-range microphone that gathers audio from long distances. This long-distance microphone is capable of capturing conversations from up to 300 feet.

• Dish Assembly
• Handles (Horizontal & Vertical)
• Microphone Yoke with Lavaliere Mic Adapter

The unique, modular design Klover MiK 16 employs specifically-designed handles and microphone yoke, which will protect the more expensive collector dish in case of an accident. Any subsequently damaged components can be replaced on an individual basis.

Only Capture The Sound You Want

Clear And Crisp Audio Recording
Our competitors don't even compare to the definition that the Klover MiK is capable of generating. All of the sound energy is focused on a single point by a collector dish's "true" parabolic shape. The non-parabolic shape of the competition scatters sound energy, focusing it on various different locations. Only a percentage of the sound energy actually ends up being focused on the microphone.

Most parabolic microphones cause the dish to generate unwelcome, squeaking noises that can ruin the audio. This is due to movement between components and the plastic dish. This is not true of the Klover MiK 16-their connections are made with vibration isolation components to eliminate these superfluous noises.

The Dish Makes All The Difference
All parabolic microphones have dishes; however, many of these dishes are not a true parabola. They are designed to be able to adjust or focus the dish on a particular target. In other words, you could place the pickup microphone at a certain location for sounds, say 300 feet away; and then adjust the pickup microphone for sounds 100 feet away.

Unfortunately, in order to achieve this, the shape of the parabolic dish is no longer a true parabola. The shape of the dish has to be compromised, resulting in most of the sound not being focused on the electronic pickup.

Applications For Parabolic Microphones

Military / Security

The long range use of parabolic microphones allows surveillance to be carried out from a safe distance without detection.

Fire & Rescue
Parabolic microphones are used broadly in search and rescue efforts. In tests, calls for help, have been heard over a mile away.

Broadcasting
Parabolic microphones are used at almost every type of professional sport. In addition, they can be used to pick up speakers in a crowd.

Panel Discussions
High performance parabolic microphones can be used to mic members of a panel discussion without equipping.

Open Meetings / Q&A
A high quality parabolic microphone can be used to amplify the comments or questions of attendees at open meetings.

Houses of Worship
A single parabolic microphone located in the rear of the auditorium can pick up the speaker regardless.

Nature Study
Parabolic microphones can be used to record the sounds of nature without disturbing the habitat.

- Sound Devices MM-1 Microphone Preamplifier -
Highly versatile and portable, Sound Devices' MM-1 is a single-channel, portable microphone preamplifier with a powerful headphone monitoring function. Proven in mission-critical applications, the high-performance microphone preamp's transformer-balanced input and output and bipolar +/-15 volt power supply produce low-noise, low-distortion gain at all switch positions. It features an "unclippable" dual-stage limiter and two-position high-pass filter. Flexible microphone powering provides phantom power at 48 volts or 12 volts and 12-volt T-power. It is powered from two-AA batteries or external 5-18 VDC.

- Sennheiser MKE-2 microphone -
The Sennheiser MKE2 miniature omni-directional lavalier condenser microphone with XLR connection is an industry favorite among field audio engineers, broadcast engineers and film crews. It features a wide frequency and high sensitivity response. Ideal for vocals and instruments.

- Remote Audio HN7506 Headphones -
These surprisingly comfortable phones have been a big hit for professionals who want to protect their ears while monitoring the quality of their recordings. Sealing off outside ambience by as much as 45dB, the HN-7506 is designed to sound like the industry standard Sony MDR-7506 and allows the switch from one to another without loss of monitoring standard and reliability. Sound mixers often find themselves in very high noise environments such as helicopters, raceways, firing ranges, rock concerts, etc., left with ringing ears and wondering what was actually being recorded.

Providing extreme isolation from outside noise and using Sony MDR-7506 drivers with special baffling, the Remote Audio HN-7506 allows accurate, full-range monitoring in loud environments and adds a high degree of protection from hearing damage while giving the user the familiar sound of the industry standard Sony headphones.

Dynamic Boom Mic
Broadcast quality miniature dynamic boom microphone installed on HN7506. Terminates with TA5F connector.

Electret Boom Mic
Broadcast quality miniature electret boom microphone installed on HN7506. Terminates with TA5F connector.

- Carrying Bag -
Nylon Bag for carrying an un-assembled KM-16 parabolic microphone with two pockets for storing components. Constructed of Nylon and soft foam padding.

Klover Mik 16 Kit, KM-16 Collector, MM-1 Amp, MKE-2 Mic, HN7506 Headphone & Bag Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter at 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Key Features

  • Capture crisp audio from 300 feet away with this parabolic microphone kit, ideal for nature recording.
  • Experience low noise and high gain with the MM-1 amplifier, enhancing your audio clarity for any project.
  • The Sennheiser MKE-2 microphone delivers exceptional sound quality with a wide 20Hz-20kHz frequency range.
  • Enjoy hands-free monitoring with Remote Audio HN7506 headphones, designed for comfort and accurate sound.
  • This Klover Mik 16 Kit includes a durable nylon carrying bag, protecting your equipment on every shoot.
  • Achieve professional audio with switchable 12V or 48V phantom power, offering versatile connectivity options.

What's in the box:

  • Klover KM-16 Parabolic Collector
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Sennheiser MKE-2 Microphone
  • Remote Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector
  • 3.5mm Stereo Mini Plug
  • KKB-16 Carrying Bag
  • Klover 1 Year Limited Warranty (2 Year on Amplifier/Mic & 1 Year on Headphones)
