Klover Mik 16 Kit, KM-16 Parabolic Collector, MM-1 Amplifier & B3 Lavalier Mic
See all Klover items

Klover Mik 16 Kit, Includes KM-16 Parabolic Microphone, Sound Devices MM-1 Amplifier & Countryman B3 Lavalier Microphone

SKU: KLKM16KMMB3 MFR: KM-16-K-MM-B3
Be the first to review this itemAsk a Question
$1,949.00
OR
$163/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture distant audio clearly with the Klover Mik 16 parabolic microphone kit.
  • Achieve professional sound quality with the included Sound Devices MM-1 amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture options.
  • Perfect for wildlife recording, this shotgun microphone offers extended range.
  • Enjoy low-noise performance with this microphone, ideal for critical sound capture.
  • This durable shotgun microphone kit delivers exceptional audio in any environment.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Klover Mik 16 Kit, KM-16 Parabolic Collector, MM-1 Amplifier & B3 Lavalier Mic Specifications

Parabolic Collector

Parabolic Collector

Jump to...

  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MM-1 Amplifier

Jump to...

  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

B3 lavaliere microphone

Jump to...

  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

General

Jump to...

  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    B3 microphone: 0.23 x 0.18" (5.84 x 4.57mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    B3 microphone: 0.012 oz (0.34g)

About Klover Mik 16 Kit, KM-16 Parabolic Collector, MM-1 Amplifier & B3 Lavalier Mic

A comprehensive audio recording solution, the Mik 16 Kit includes the KM-16 Parabolic Microphone, Sound Devices MM-1 Amplifier, and the Countryman B3 Lavalier Microphone.

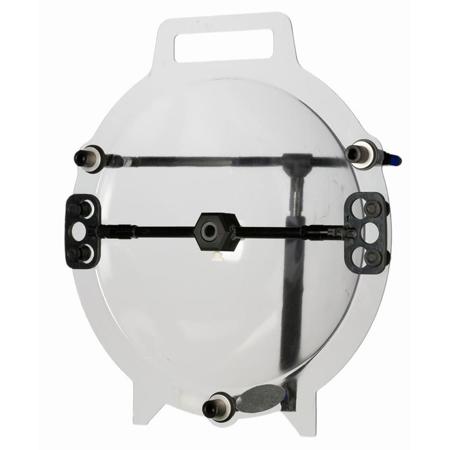

The KM-16 Parabolic Microphone, a product of Klover, is a mid-sized, long-range microphone that transforms your omni-directional microphone into a powerful audio capturing device. With the ability to pick up conversations from as far as 300 feet, this microphone is designed with a unique, modular structure that includes a dish assembly, horizontal and vertical handles, and a microphone yoke with a lavalier mic adapter. The KM-16's design ensures the protection of the collector dish, the most expensive component, in case of accidental damage.

What sets the Klover MiK 16 apart is its ability to generate clear, crisp audio recordings, outperforming its competitors. The microphone's collector dish boasts a "true" parabolic shape, focusing all sound energy on a single point. Unlike other parabolic microphones, the KM-16's connections are made with vibration isolation components, eliminating any unwelcome, squeaking noises caused by movement between components and the plastic dish.

The Sound Devices MM-1 Microphone Preamplifier is a versatile, single-channel, portable microphone preamplifier with a robust headphone monitoring function. Known for its performance in mission-critical applications, the MM-1 offers low-noise, low-distortion gain at all switch positions, thanks to its transformer-balanced input and output and bipolar +/-15 volt power supply. It features an "unclippable" dual-stage limiter and a two-position high-pass filter. The MM-1 provides flexible microphone powering options and can be powered from two-AA batteries or external 5-18 VDC.

Completing the Mik 16 Kit is the Countryman B3 Lavalier Microphone. This miniature, omni-directional lavalier condenser microphone is water-resistant and comes with an XLR connector.

The Mik 16 Kit is ideal for a range of applications, including military/security surveillance, fire and rescue efforts, broadcasting, panel discussions, open meetings, houses of worship, and nature study. This kit offers a comprehensive solution for high-quality, long-range audio recording.

Klover Mik 16 Kit, KM-16 Parabolic Collector, MM-1 Amplifier & B3 Lavalier Mic Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter at 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture distant audio clearly with the Klover Mik 16 parabolic microphone kit.
  • Achieve professional sound quality with the included Sound Devices MM-1 amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture options.
  • Perfect for wildlife recording, this shotgun microphone offers extended range.
  • Enjoy low-noise performance with this microphone, ideal for critical sound capture.
  • This durable shotgun microphone kit delivers exceptional audio in any environment.

What's in the box:

  • Klover KM-16 Parabolic Collector
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Countryman B3 Lavalier Microphone
  • Klover 1 Year Limited Warranty (1 Year on Mic & 2 Year on Amplifier)
