Klover Mik 16 Kit, Includes KM-16 Parabolic Microphone, KMEQ Lavalier Microphone, Sound Devices MM-1 Amplifier, Koss Pro 4AA Headphone & KKB-16 Carrying Bag

SKU: KLKM16KMP4CB MFR: KM-16-K-MM-KEQ-P4-CB
Earn VIP Reward Points

Key Features

  • Capture distant audio clearly with the KM-16 parabolic microphone's impressive range.
  • Achieve professional sound using the KMEQ lavalier microphone for interviews and more.
  • Enhance audio fidelity with the Sound Devices MM-1 amplifier, ensuring clear recordings.
  • Enjoy accurate sound monitoring with the included Koss Pro 4AA reference headphones.
  • Easily transport and protect your shotgun microphone kit with the durable carrying bag.
  • Get versatile recording options with both omnidirectional and cardioid microphone patterns.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, Pro 4AA Headphone & Bag Specifications

Parabolic Collector

Parabolic Collector

Jump to...
  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MM-1 Amplifier

Jump to...
  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

KMEQ Equalized microphone

Jump to...
  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

Koss Pro4AA Headphones

Jump to...
  • Frequency Response

    10-25,000 Hz

  • Impedance

    250 Ohms

  • Sensitivity

    95dB SPL/1mW

Carrying Bag

Jump to...
  • Material

    Nylon

General

Jump to...
  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    KMEQ Equalized microphone: 0.23 x 0.18" (5.84 x 4.57mm)
    Carrying Bag: Approx. 18 x 18 x 6" (457.20 x 457.20 x 152.40mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    KMEQ Equalized microphone: 0.012 oz (0.34g)

About Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, Pro 4AA Headphone & Bag

Are you in search of a comprehensive audio recording kit that delivers superior sound quality Look no further than the Mik 16 Kit. This all-inclusive package features the KM-16 Parabolic Microphone, KMEQ Lavalier Microphone, Sound Devices MM-1 Amplifier, Koss Pro 4AA Headphone, and a KKB-16 Carrying Bag.

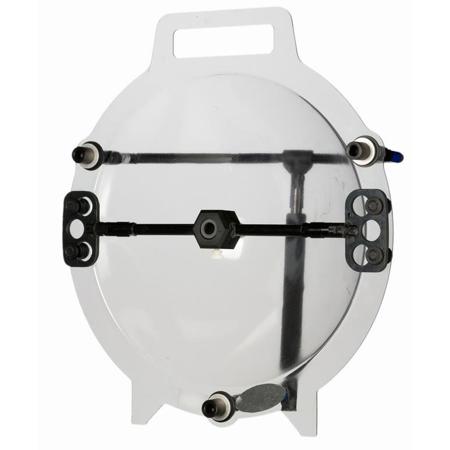

The KM-16 Parabolic Microphone, a mid-sized offering from Klover, transforms your omni-directional microphone into a long-range audio capturing device. With the ability to gather sound from up to 300 feet away, this microphone is perfect for a variety of applications, from broadcasting to nature study. Its unique modular design, featuring specially designed handles and a microphone yoke, ensures the protection of the collector dish. The KM-16's true parabolic shape focuses all sound energy on a single point, delivering clear and crisp audio recordings that outshine the competition.

The Sound Devices MM-1 Microphone Preamplifier is a single-channel, portable device with a powerful headphone monitoring function. Its transformer-balanced input and output, along with a bipolar +/-15 volt power supply, ensure low-noise, low-distortion gain at all switch positions.

The KMEQ Equalized Microphone, a custom-built version of the Countryman B3, is designed specifically for our parabolic microphones. This water-resistant, miniature, omni-directional lavalier condenser microphone with XLR connector delivers a deeper, more natural sound, enhancing the overall audio quality of your recordings.

The Koss Pro4AA headphones, a staple in the radio and recording industries, offer high fidelity performance with impressive noise isolating capabilities. These full-size professional headphones provide superior isolation, accurate reproduction, and sound intensity, delivering the excitement of a live performance with every recording.

Finally, the KKB-16 Carrying Bag, constructed of durable nylon and soft foam padding, provides a convenient and safe storage solution for your KM-16 parabolic microphone and other components.

In conclusion, the Mik 16 Kit offers a comprehensive solution for all your audio recording needs, delivering superior sound quality and versatility in a convenient package.

Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, Pro 4AA Headphone & Bag Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter at 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip
  • Koss Pro4AA headphone
  • Perfect for professionals and audiophiles who want a cleaner, clearer sound
  • Noise isolating professional studio headphones
  • The first dynamic headphones to deliver true full frequency, high fidelity performance
  • Standard-setting design incorporates performance-enhancing technology
  • Superior isolation, accurate sound reproduction and the excitement of a live performance with every recording
  • Durable steel and generously padded rubber headband
  • Adjustable slide bars ensure snug fit
  • 8 foot coiled cord with 6.3mm (1/4") plug
  • Covered under the Koss Stereophones Limited Lifetime Warranty

Key Features

  • Capture distant audio clearly with the KM-16 parabolic microphone's impressive range.
  • Achieve professional sound using the KMEQ lavalier microphone for interviews and more.
  • Enhance audio fidelity with the Sound Devices MM-1 amplifier, ensuring clear recordings.
  • Enjoy accurate sound monitoring with the included Koss Pro 4AA reference headphones.
  • Easily transport and protect your shotgun microphone kit with the durable carrying bag.
  • Get versatile recording options with both omnidirectional and cardioid microphone patterns.

What's in the box:

  • Klover KM-16 Parabolic Collector
  • KMEQ Lavalier Microphone
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Koss Pro 4AA Headphones
  • 8' Coiled Cable with 1/4 " TRS Connector
  • KKB-16 Carrying Bag
  • Klover 1 Year Limited Warranty (2 Year on Amplifier & Lifetime Limited on Headphones)
