What makes the KM-16 Parabolic Microphone unique?

The KM-16 Parabolic Microphone stands out for its true parabolic shape that focuses all sound energy on a single point, providing clear and crisp audio recordings. It also features vibration isolation components that prevent unwanted noise caused by component movement.

What are some applications of the Mik 16 Kit?

The Mik 16 Kit is versatile and suitable for a wide range of applications, including military and security surveillance, fire and rescue operations, professional sports broadcasting, panel discussions, open meetings, houses of worship, and nature studies.

What are the features of the Whirlwind MD-1 Amplifier included in the kit?

The Whirlwind MD-1 Amplifier is a rugged, battery-operated mic preamp that delivers studio-quality performance. It features a high-performance input transformer, high-current line driver, and headphone monitor amp. It also has an input pad, level control for various signals, and switchable 18V phantom power.

What benefits do the Remote Audio HN7506 Headphones provide?

The Remote Audio HN7506 Headphones provide extreme isolation from outside noise, reducing ambient sound by up to 45dB. They are designed to mirror the sound of the industry-standard Sony MDR-7506, ensuring consistent monitoring standards and protecting your hearing in loud environments.

What is the purpose of the included carrying case?

The included KK-16-TE Carrying Case is a waterproof shipping/road case that provides secure and organized storage for the un-assembled KM-16 parabolic microphone and all its components, as well as the preamp. It ensures your equipment remains protected during transport.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Klover Mik 16 Kit, KM-16 Collector, MD-1 Amp, MKE-2 Mic, HN7506 Headphone & Case Specifications

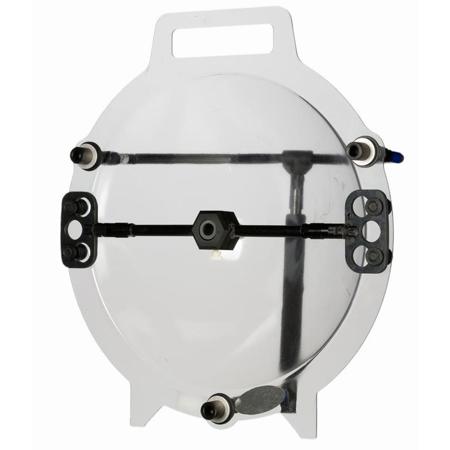

Parabolic Collector

Parabolic Collector

Jump to...
  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MD-1 amplifier

Jump to...
  • Equivalent Input Noise

    -123dB

  • Frequency Response

    +/-3dBm 6Hz to 25kHz
    +/-.1dBm 50Hz to 10k
    -2.0dBm at 20kHz

  • Maximum Input Level

    Line Mode: +18dBm balanced
    Mic Mode: -4dBm unbalanced

  • Input Impedance

    Mic mode 1.5kW
    Line mode 10kW

  • Maximum Output Level

    +15dB into 2k Ohms, +26dB into 10k Ohms, +34dB into 100k Ohms

  • Output Impedance

    600 Ohms

  • Rise Time

    7uS

  • C.M.R. (Common Mode Rejection) of input

    >80dBm at 60Hz
    >60dBm at 60Hz

  • Phantom power

    +18VDC

  • Power Requirements

    (2) 9V alkaline batteries

MKE-2 microphone

Jump to...
  • Frequency Response

    20Hz to 20kHz +/- 3dB

  • Polar Pattern

    Omnidirectional

  • Sensitivity (free field, no load) (1kHz)

    10 mV/Pa +/-2.5 dB

  • Equivalent Acoustic Noise

    24dB SPL A-Weighted

  • Maximum Sound Pressure

    150 dB (48V, 1mV/Pa mike)

  • Power Requirements

    9V to 48V Phantom (4mA at 48V)

  • Output Impedance

    600 ohms, balanced

  • Output Connector

    XLR-3 Male

HN7506 Headphone

Jump to...
  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

General

Jump to...
  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MD-1 amplifier: 2.25 x 3.88 x 6.25" (5.72 x 9.86 x 15.88cm)
    MKE-2 microphone: 0.23 x 0.18" (0.58 x 0.46cm)
    Carrying Case: 24.3 x 19.5 x 8.86" (617.22 x 495.30 x 225.04mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MD-1 amplifier: 2 lbs (0.91kg)
    MKE-2 microphone: 0.012 oz (0.34g)
    Carrying Case: 16 lbs (7.26kg)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover Mik 16 Kit, KM-16 Collector, MD-1 Amp, MKE-2 Mic, HN7506 Headphone & Case

Because capturing pristine audio is essential for professionals in various fields, the Mik 16 Kit offers an unparalleled solution with its comprehensive set of high-quality, durable audio equipment. This kit includes the innovative KM-16 Parabolic Microphone from Klover, a brand synonymous with excellence in audio capture technology. The KM-16 is a mid-size parabolic microphone that transforms your omni-directional mic into a long-range audio capturing powerhouse, adept at picking up conversations from distances of up to 300 feet with crystal-clear clarity.

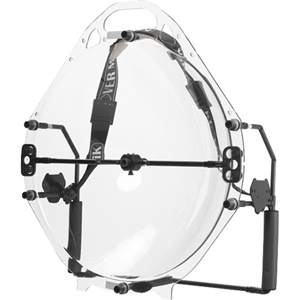

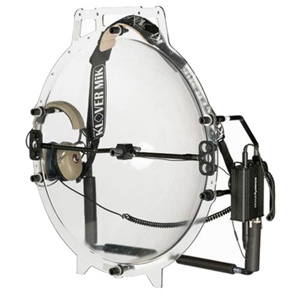

The KM-16's dish assembly, complete with horizontal and vertical handles and a microphone yoke with a lavalier mic adapter, boasts a unique, modular design. This design not only enhances the microphone's durability but also ensures that any damaged components can be replaced individually, minimizing downtime and extending the life of your investment. The true parabolic shape of the collector dish is meticulously engineered to focus all sound energy on a single point, unlike non-parabolic alternatives that scatter sound and reduce audio definition.

The KM-16 stands out in its ability to eliminate unwanted noise, thanks to vibration isolation components that prevent squeaking noises caused by movement between parts. This attention to detail ensures that only the sound you want is captured, providing clear and crisp audio recordings that are unmatched by competitors.

This kit is versatile and suitable for a wide range of applications, including military and security surveillance, fire and rescue operations, professional sports broadcasting, panel discussions, open meetings, houses of worship, and nature studies.

Complementing the KM-16 is the Whirlwind MD-1 Amplifier, the industry standard for parabolic, boom, and interview mic situations. This rugged, battery-operated mic preamp delivers studio-quality performance with a high-performance input transformer, high-current line driver, and headphone monitor amp. It features an input pad, level control for various signals, switchable 18V phantom power, and a steel case with a belt clip for durability.

The Sennheiser MKE-2 microphone, a miniature omni-directional lavalier condenser microphone with an XLR connection, is revered for its wide frequency response and high sensitivity, making it ideal for capturing both vocals and instruments with exceptional fidelity.

For monitoring purposes, the Remote Audio HN7506 Headphones provide extreme isolation from outside noise, reducing ambient sound by up to 45dB. These headphones are designed to mirror the sound of the industry-standard Sony MDR-7506, ensuring consistent monitoring standards. They are equipped with Sony MDR-7506 drivers and special baffling for accurate, full-range monitoring in loud environments, protecting your hearing while delivering reliable audio feedback.

The kit also includes a dynamic boom mic and an electret boom mic, both of broadcast quality and terminating with a TA5F connector, ensuring versatile and professional audio capture.

Finally, the KK-16-TE Carrying Case, a waterproof shipping/road case, provides secure and organized storage for the un-assembled KM-16 parabolic microphone and all its components, as well as the preamp, ensuring your equipment remains protected during transport.

The Mik 16 Kit is the definitive choice for professionals who demand the best in audio recording and monitoring, offering a combination of innovative design, professional-grade components, and versatile applications.

Klover Mik 16 Kit, KM-16 Collector, MD-1 Amp, MKE-2 Mic, HN7506 Headphone & Case Features

  • KM-16 Parabolic Microphone for long-range, high-definition audio capture up to 300 feet
  • Whirlwind MD-1 Amplifier with studio-quality performance and rugged, battery-operated convenience
  • Sennheiser MKE-2 lavalier microphone with wide frequency response for clear vocal and instrument recording
  • Remote Audio HN7506 Headphones providing up to 45dB noise isolation and industry-standard sound fidelity
  • Versatile application for professional audio recording in broadcasting, security, rescue, and nature studies
  • Durable, waterproof KK-16-TE Carrying Case for secure transport and storage of audio equipment components

Key Features

  • KM-16 Parabolic Microphone for long-range, high-definition audio capture up to 300 feet
  • Whirlwind MD-1 Amplifier with studio-quality performance and rugged, battery-operated convenience

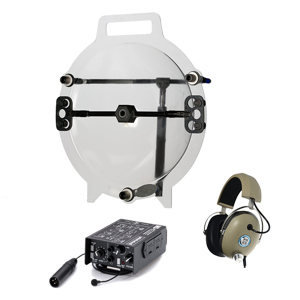

What's in the box:

  • Klover KM-16 Parabolic Collector
  • Whirlwind MD-1 Amplifier
  • Sennheiser MKE-2 Microphone
  • Remote Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector
  • 3.5mm Stereo Mini Plug
  • KK-16-TE Carrying Case
  • Klover 1 Year Limited Warranty (1 Year on Amplifier/Headphones & 2 Year on Mic)
