Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, HN7506 Headphone & Case
See all Klover items

Klover Mik 16 Kit, Includes KM-16 Parabolic Microphone, KMEQ Lavalier Microphone, Sound Devices MM-1 Amplifier, Remote Audio HN7506 Headphone & KK-16-TE Carrying Case

SKU: KLKM16KQRAKK MFR: KM-16-K-MM-KEQ-RA-KK
Be the first to review this itemAsk a Question
$2,519.00
OR
$210/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture distant audio with the KM-16 parabolic microphone, reaching up to 300 feet!
  • Achieve crystal-clear sound with the KMEQ lavalier microphone's wide 20 Hz - 20 kHz range.
  • Enhance audio fidelity using the Sound Devices MM-1 amplifier for precise sound control.
  • Monitor audio accurately with Remote Audio HN7506 headphones, featuring a closed-back design.
  • Enjoy versatile connectivity with 1/4" and 3.5mm TRS connectors for various devices.
  • Safeguard your investment using the KK-16-TE carrying case, ensuring durability on the go.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, HN7506 Headphone & Case Specifications

Parabolic Collector

Parabolic Collector

Jump to...

  • Range

    250 to 300' (76.20 to 91.44m)

  • Microphone pickup pattern

    Omnidirectional or cardioid pattern

  • Microphone

    20mm Diameter or lavaliere

  • Dish outside diameter

    16" (406.40mm)

  • Parabolic diameter

    13.5" (342.90mm)

MM-1 Amplifier

Jump to...

  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

KMEQ Equalized microphone

Jump to...

  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

HN7506 Headphone

Jump to...

  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

General

Jump to...

  • Dimensions

    Parabolic Collector: 18 x 16 x 10" (457.20 x 406.40 x 254.00mm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    KMEQ Equalized microphone: 0.23 x 0.18" (5.84 x 4.57mm)
    Carrying Case: 24.3 x 19.5 x 8.86" (617.22 x 495.30 x 225.04mm)

  • Weight

    Parabolic Collector: Approx. 2 lbs (0.91kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    KMEQ Equalized microphone: 0.012 oz (0.34g)
    Carrying Case: 16 lbs (7.26kg)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, HN7506 Headphone & Case

The Mik 16 Kit is a comprehensive audio recording solution, featuring the KM-16 Parabolic Microphone, KMEQ Lavalier Microphone, Sound Devices MM-1 Amplifier, Remote Audio HN7506 Headphone, and a robust KK-16-TE Carrying Case.

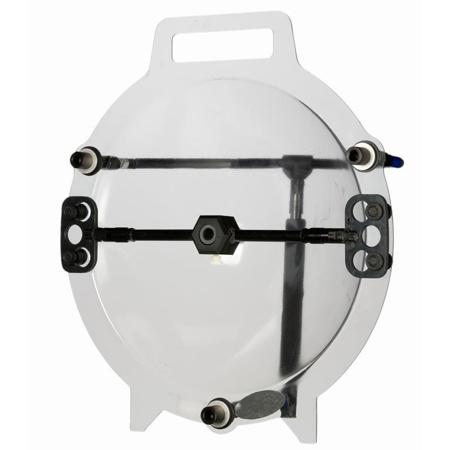

The KM-16 Parabolic Microphone, a mid-sized offering from Klover, transforms your omni-directional microphone into a long-range audio capturing device. With the ability to pick up conversations from as far as 300 feet, this microphone is designed with a unique, modular structure that includes specially-designed handles and a microphone yoke. This design not only protects the collector dish but also allows for individual component replacement if damage occurs.

The KM-16 stands out for its ability to generate clear and crisp audio, thanks to its true parabolic shape that focuses all sound energy on a single point. Unlike competitors, the KM-16 eliminates unwanted noises caused by component movement, ensuring only the desired sound is captured.

The Sound Devices MM-1 Microphone Preamplifier is a portable, single-channel device with a powerful headphone monitoring function. Known for its low-noise, low-distortion gain, it features an "unclippable" dual-stage limiter and two-position high-pass filter. It can be powered by two-AA batteries or an external 5-18 VDC.

The KMEQ Equalized Microphone, a custom-built version of the Countryman B3, is designed specifically for parabolic microphones. It's a water-resistant, miniature, omni-directional lavalier condenser microphone with an XLR connector. The microphone is equalized to match the acoustic characteristics of the Klover MiK 09 parabolic collector, providing a more natural sound.

The Remote Audio HN7506 Headphones offer professional-grade sound isolation, reducing outside ambience by up to 45dB. Designed to mimic the industry-standard Sony MDR-7506, these headphones allow seamless switching without compromising on monitoring standards and reliability.

Finally, the kit includes a waterproof KK-16-TE Carrying Case, designed to safely transport the KM-16 parabolic microphone and all its components.

Whether you're in broadcasting, security, fire and rescue, or nature study, the Mik 16 Kit offers a versatile and high-quality audio recording solution.

Klover Mik 16 Kit, KM-16 Collector, KMEQ Mic, MM-1 Amp, HN7506 Headphone & Case Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter at 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture distant audio with the KM-16 parabolic microphone, reaching up to 300 feet!
  • Achieve crystal-clear sound with the KMEQ lavalier microphone's wide 20 Hz - 20 kHz range.
  • Enhance audio fidelity using the Sound Devices MM-1 amplifier for precise sound control.
  • Monitor audio accurately with Remote Audio HN7506 headphones, featuring a closed-back design.
  • Enjoy versatile connectivity with 1/4" and 3.5mm TRS connectors for various devices.
  • Safeguard your investment using the KK-16-TE carrying case, ensuring durability on the go.

What's in the box:

  • Klover KM-16 Parabolic Collector
  • KMEQ Lavalier Microphone
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Remote Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector
  • 3.5mm Stereo Mini Plug
  • KK-16-TE Carrying Case
  • Klover 1 Year Limited Warranty (2 Year on Amplifier & 1 Year on Headphones)
