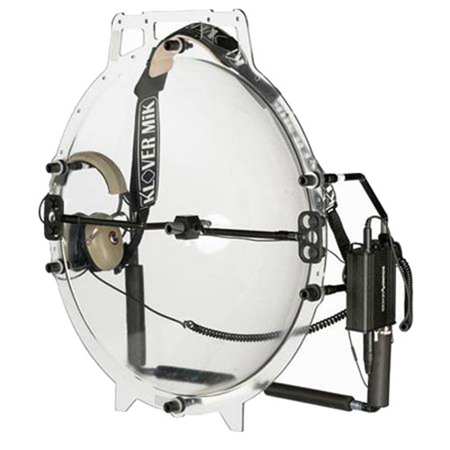

Klover MiK 26 Parabolic Collector with Sound Devices MM-1 Amplifier, Countryman B3 Lavalier Microphone, Real Audio HN7506 Headphones and KK-26-BD Carrying Case

SKU: KLKM26B3RABD MFR: KM-26-K-MM-B3-RA-BD
Earn VIP Reward Points

Key Features

  • Capture distant audio with crystal clarity using this parabolic microphone system.
  • Achieve professional sound quality with the included Sound Devices MM-1 amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture options.
  • Real Audio HN7506 headphones provide accurate monitoring for pristine recordings.
  • Ideal for wildlife recording, surveillance, and sports events with its long range.
  • Durable carrying case included for safe transport and protection of your equipment.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Klover MiK 26 Parabolic Collector, MM-1 Amp, B3 Mic, HN7506 Headphones & Case Specifications

Parabolic Collector

Parabolic Collector

Jump to...
  • Range

    500 to 600'

  • Microphone

    Omnidirectional pattern - 20mm Diameter or lavalier

  • Dish outside diameter

    26" (66.04cm)

  • Parabolic diameter

    23.5" (59.69cm)

  • Dish thickness

    1/4"

MM-1 Amplifier

Jump to...
  • Gain (Mic - Line)

    0 dB to 66 dB input to output, switch selectable

  • Frequency Response (Mic - Line)

    20 Hz -20 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

  • Equivalent Input Noise (Mic)

    -126 dBu (-128 dBV) maximum (150 ohm source, flat weighting, 22 Hz - 22 kHz bandwidth gain setting 36 dB or greater)

  • Dynamic Range (Mic to Line)

    122 dB minimum at the +18 dB gain setting

  • THD + Noise

    0.05% maximum (from 50 Hz - 22 kHz at +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting

  • Gain Accuracy (Mic - Line)

    +0.6, -0.1 dB with reference to front panel gain markings (150 ohm source, 100 k load impedances)

  • Output Clipping Level (Line)

    +22 dBu minimum with 100k ohm load+20 dBu minimum with 600 ohm load

  • Input Clipping Level (Mic)

    +4 dBu minimum at the 0 or +18 dB gain setting

  • Common Mode Rejection Ratio

    100 dB minimum at 80 Hz60 dB minimum at 10 kHz Maximum of 66 dB of gain, in eleven discrete steps

  • Input (Mic)

    Transformer-balanced, 2 kOhms input impedance

  • Input: (Monitor)

    Electronically-balanced, 22k ohm input impedance

  • Output: (Line)

    Transformer-balanced, 130 ohm output impedance

  • Headphone Output Impedance

    Unbalanced, 200 ohms

  • Frequency Response (Monitor In)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Frequency Response (headphones)

    10 Hz - 50 kHz, +/-0.5 dB, gain at 50%

  • Input Clipping Level: (Monitor In)

    Greater than +30 dBu

  • High-Pass Filter

    80 Hz or 160 Hz (switch selectable), 6 dB per octave

  • Phantom Power

    12V or 48V (switch selectable), will supply 10 mA per DIN 45 596 specification

  • T-Power

    12V via 180 ohm resistors, will supply 10 mA

  • Limiter

    Limits to +17 dBu output level, 10:1 limiting ratio
    5 ms attack time, 100 ms release time
    Amber/Red LED indicates limiting/clipping

  • Internal Voltage Rails

    +/-15 V, regulated

  • Power

    Internal: 2x AA batteries
    External: 5-17 VDC via threaded coaxial jack, (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative
    Voltages above 17 VDC cause no damage to unit but will open an internal poly fuse. Poly fuse will reset when voltage is removed

  • Polarity

    All inputs to all outputs are non-inverting
    XLR - pin-2 = hot, pin-3 = cold, pin-1 is ground
    TRS - Tip = hot, ring = cold, sleeve = ground

B3 lavaliere microphone

Jump to...
  • Frequency Response

    20 Hz to 20 kHz

  • Polar Pattern

    Omnidirectional

  • Power Requirements

    Phantom: 9V to 48V (4mA at 48V)

  • Sensitivity

    W4 (no band): 12.0 mV/Pascal (-38 dB re 1V/Pa)

  • Equivalent Acoustic Noise

    24 dBA

  • Overload Sound Level

    Phantom: 150 dBA SPL

  • Cable Length

    5' (1.52m)

  • Output Connector

    XLR-3 Male

  • Resistance Standard

    Water/Weather Resistant

HN7506 Headphone

Jump to...
  • Headphone: Driver Type

    Dynamic

  • Headphone: Design

    Over-Ear (Circumaural)

  • Headphone: Earcup Style

    Closed-Back

  • Headphone: Frequency Response

    10 Hz to 20 kHz

  • Headphone: Impedance

    63 Ohms

  • Headphone: Maximum Power Handling

    1000 mW

  • Connectivity: Audio Connector

    1/4" TRS
    1/8" / 3.5 mm TRS

  • Cable: Detachable

    Yes

  • Cable: Cable Length

    6' (1.83m)

General

Jump to...
  • Dimensions

    Parabolic Collector: 26.12 x 28.62 x 10" (66.34 x 72.69 x 25.40cm) (With Handle)
    MM-1 Amplifier (HxWxD): 49 x 95 x 166mm (1.93 x 3.74 x 6.54")
    B3 microphone: 0.23 x 0.18" (5.84 x 4.57mm)
    Case: 32 x 32 x 12.25" (81.28 x 81.28 x 31.12cm)

  • Weight

    Parabolic Collector: 7.5 lbs (3.40kg)
    MM-1 Amplifier: 0.64kg (1.41 lbs)
    B3 microphone: 0.012 oz (0.34g)
    HN7506 Headphone: 3 lbs (1.36kg)

About Klover MiK 26 Parabolic Collector, MM-1 Amp, B3 Mic, HN7506 Headphones & Case

Under the banner of professional audio capture, Adorama presents the comprehensive MiK 26 Parabolic Collector Kit, a synergy of high-quality components designed for the discerning audio professional. This kit is an assemblage of durable, innovative, and professional-grade equipment, ensuring that you can capture audio with unparalleled clarity from distances you never thought possible.

The centerpiece, the Klover MiK 26 Parabolic Collector, is our flagship parabolic microphone, transforming any omni-directional mic into a super long-range device capable of picking up conversations from up to 600 feet away. A mainstay in the broadcast industry, the MiK 26 is regularly spotted on the sidelines of professional football games and is equally adept in military, tactical, fire, and rescue applications.

The Klover MiK 26 boasts a patented modular design that not only facilitates easy transport but also allows for individual components to be replaced if damaged. The handles and microphone yoke are engineered to absorb impact, safeguarding the more valuable collector dish. The collector dish itself is designed to be stackable, preventing scratches to the critical internal surface during transportation.

Crisp and clear audio recording is achieved through the MiK 26's "True" parabolic shape, which focuses all sound energy on a single point, unlike competitor dishes that scatter sound energy and compromise audio quality. The Klover MiK 26 also features vibration isolation components at all connection points, eliminating the unwanted noise that can occur with rapid movement or handling.

The Sound Devices MM-1 Microphone Preamplifier included in the kit is a testament to versatility and portability. With a transformer-balanced input and output, and a robust dual-stage limiter, this preamplifier ensures low-noise, low-distortion gain across all settings. It offers flexible microphone powering options and is operable via AA batteries or an external power source.

Complementing the kit is the Countryman B3 Lavalier Microphone, a water-resistant, miniature, omni-directional condenser microphone that promises consistent, reliable performance even in challenging environments.

For monitoring, the Real Audio HN7506 Headphones provide exceptional comfort and up to 45dB of ambient noise isolation. These headphones are designed to mirror the sound of the industry-standard Sony MDR-7506, allowing for seamless transitions without compromising monitoring accuracy. The inclusion of a dynamic or electret boom microphone ensures broadcast-quality audio capture directly from the headphones.

Finally, the KK-26-BD Carrying Case is a lightweight, roto-molded case with custom foam inserts, providing a secure and economical solution for transporting or storing your MiK 26 Parabolic Collector and amplifier.

Whether for military surveillance, search and rescue, professional sports broadcasting, panel discussions, open meetings, houses of worship, or nature studies, this kit delivers superior audio capture capabilities. The MiK 26 Parabolic Collector Kit is the choice for professionals who require stylish, high-quality, and innovative audio equipment that stands up to the rigors of field use.

Klover MiK 26 Parabolic Collector, MM-1 Amp, B3 Mic, HN7506 Headphones & Case Features

  • Sound Devices MM-1 Amplifier
  • Maximum of 66 dB of gain, in eleven discrete steps
  • Dynamic range exceeding 120 dB
  • 10 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference
  • High current line output driver
  • Transformer-balanced input and output
  • Extended range peak limiter via dual opto-isolators makes preamplifier virtually "unclippable"
  • Selectable 48-volt / 12-volt phantom power or 12-volt "T" power
  • High-pass filter @ 80 or 160 Hz, 6 dB per octave
  • Headphone monitoring of microphone audio, monitor audio, or a mix of both
  • Monitor input accepts mono, balanced or unbalanced line-level inputs on 1/4-inch tip-ring-sleeve connector
  • Separate level control of Monitor gain and overall headphone gain
  • Split ear function via DIP switches
  • Internal battery power (two-AA)
  • Excellent battery life with alkaline and NiMH rechargeable batteries
  • External 5-17 VDC powering
  • High-strength aluminum chassis with durable belt clip

Key Features

  • Capture distant audio with crystal clarity using this parabolic microphone system.
  • Achieve professional sound quality with the included Sound Devices MM-1 amplifier.
  • The Countryman B3 lavalier microphone ensures versatile audio capture options.
  • Real Audio HN7506 headphones provide accurate monitoring for pristine recordings.
  • Ideal for wildlife recording, surveillance, and sports events with its long range.
  • Durable carrying case included for safe transport and protection of your equipment.

What's in the box:

  • Klover MiK 26 Parabolic Collector with Neck Strap
  • Sound Devices MM-1 Amplifier
  • Mating DC Coaxial Power Connector
  • 4x Rubber Feet
  • Countryman B3 Lavalier Microphone
  • Real Audio HN7506 Headphones
  • 6' Coiled Cable with 1/4 " TRS Connector and Detachable 3.5mm Stereo Mini Plug
  • KK-26-BD Carrying Case
  • Klover 1 Year Limited Warranty (2 Year on Amplifier/1 Year on Mic and Headphones)
