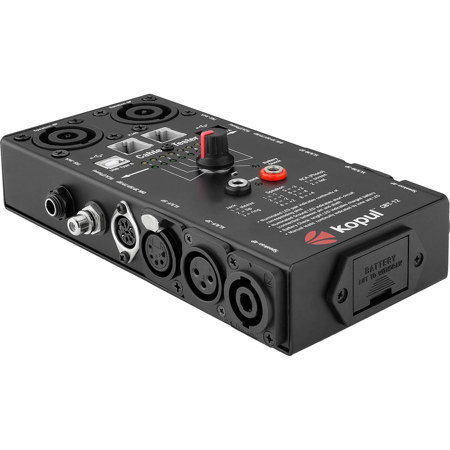

Kopul CBT-12 12-in-1 Cable Tester, Black

The Kopul CBT-12 is a professional-quality cable tester that allows users to test the continuity of a wide variety of cables with a single device. It quickly identifies connectivity and ground problems in some of the most frequently-used cables, and makes troubleshooting audio and studio setups fast and effortless.

An eight-way knob provides easy selection of the pins to be tested, LED indicators illuminate to show that each pin on the cable is properly connected. The CBT-12 can test cables with any combination of Speakon 4-pin, Speakon 8-pin, XLR 3-pin, XLR 5-pin, TS/TRS, DIN 3/5/7/8, RCA, USB Type A to Type B, RJ45, and Banana plugs. Two removable leads are included for testing any kind of wire or cable with jacks that are not included on this model. They also allow for testing connections when building or repairing cables or when wiring studios or audio installations.

The CBT-12 is ideal for home, project, and professional studio use. Constructed with a rugged all-metal case, the CBT-12 is a road-ready tool for studio techs and install engineers.

Tests Cable Continuity
Provides easy and simple continuity testing for cables with any combination of Speakon 4-pin, Speak on 8-pin, XLR 3-pin, XLR 5-pin, RCA, DIN 3-pin, DIN 5-pin, DIN 7-pin, DIN 8-pin, TS/TRS, USB-Type A to Type B, RJ45, and Banana plugs

Checks Each Pin Separately
Rotary knob selects each pin on the cable to confirm connectivity and continuity

Status LEDs
A battery check LED warns when the battery needs to be charged or replaced. The ground status check LED lights when a ground loop (short circuit) is detected

Durable Build Quality
Heavy-duty, all-metal construction assures extended use in studio and on the road
