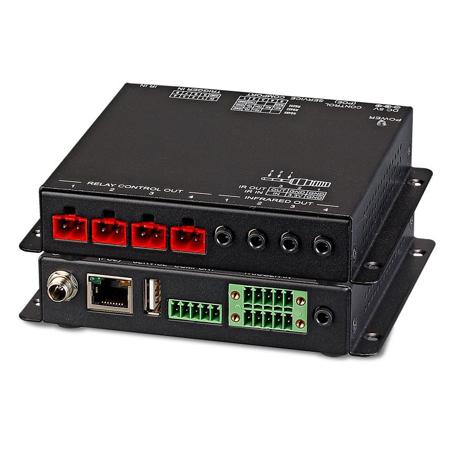

KanexPro Integrated IR/RS-232 and Relay Controller

SKU: KPCR3XCTRL MFR: CR-3XCONTROL
Earn VIP Reward Points

Key Features

  • Seamlessly control devices with this integrated IR/RS-232 Relay Controller for automation.
  • Use the IP Control (RJ45) interface for network-based device management; easy integration.
  • Expand your control options with 4x IR Blaster and 4x Relay outputs, perfect for home automation.
  • Ensure reliable performance with robust ESD Protection; up to +/-12kV Air Discharge protection.
  • Wide IR Frequency range (30-50kHz) ensures compatibility with various IR-controlled devices.
  • Compact metal chassis ensures durability and efficient heat dissipation for long-term reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro IR/RS-232 and Controller Specifications

  • Input Ports

    1x IR Learner/Extender (3.5mm)
    8x Trigger (10-pin Terminal Block)

  • Output Port

    4x IR Blaster (3.5mm)
    4x Relay (2-pin Terminal Block)
    1x COM (5-pin Terminal Block)

  • Control Interfaces

    1x IP Control (RJ45)

  • IR Frequency

    30-50kHz (30-60kHz under ideal conditions)

  • Baud Rate

    Up to 115200bps

  • Power Supply

    5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

  • ESD Protection

    Human Body Model: +/-12kV (Air Discharge)
    +/-8kV (Contact Discharge)

  • Chassis Material

    Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 - 90% RH (Non-condensing)

  • Power Consumption

    3.63W

  • Dimensions (WxHxD)

    Case only: 128 x 25 x 108mm (5.04 x 0.98 x 4.25")
    128 x 25 x 118mm (5.04 x 0.98 x 4.65") (All Inclusive)

  • Weight

    400g (14.11 oz)

  • UPC Code

    813982021532

About KanexPro IR/RS-232 and Controller

Discover the KanexPro CR-3XCONTROL, an advanced central control system meticulously engineered to manage a diverse array of devices, including projectors, DVD players, and other audio-video equipment utilizing IR, RS-232, and relay-based sources. This sophisticated device is a state-of-the-art solution for users seeking a high-tech, integrated approach to remote device management.

The CR-3XCONTROL boasts eight external trigger connections, enabling direct activation of eight user-defined macro events from a total of sixteen stored within the unit. These macros are readily accessible and can be triggered via the intuitive WebGUI or through Telnet, providing seamless control at your fingertips. The unit's innovative design allows for the transmission of commands to remote devices through multiple channels, including Ethernet, four IR outputs, four relay triggers, and one RS-232/422/485 port, ensuring comprehensive control over a vast range of devices with the simple push of a button.

Equipped with an integrated IR code learning function, the CR-3XCONTROL allows users to capture and retransmit IR codes from nearly any standard IR remote, further enhancing its versatility. The controller's sophisticated user interfaces, including WebGUI, Telnet, and console (RS-232 in), offer a refined and professional experience for managing your devices.

The CR-3XCONTROL is also designed with Power over Ethernet (PoE) support, enabling it to draw power directly from a standard PoE network switch, eliminating the need for an external power adapter and providing exceptional installation flexibility. This feature underscores the device's innovative and cost-effective design, making it an ideal choice for those who value both convenience and efficiency.

Ideal for integration into smart home control systems, classrooms, conference rooms, or showrooms, the KanexPro CR-3XCONTROL transforms the way audio-visual devices are controlled, offering a sophisticated, one-click solution for a streamlined user experience. Please note that an active Internet connection from a switch or router is required for the control of Ethernet devices, and a PoE supporting network switch or hub is necessary to utilize the PoE power function. In the absence of PoE, access to a local power outlet is needed.

KanexPro IR/RS-232 and Controller Features

  • Integrated IR/RS-232 and Relay Controller
  • 8 trigger inputs linked directly to 8 user macros allowing instant control
  • 4 relay trigger outputs to control devices such as projector screens, lighting, etc
  • 4 IR outputs to control devices such as TVs, Blu-ray players, media players, etc
  • Integrated IR code learning functionality
  • Multiple user control interfaces including WebGUI, Telnet and RS-232
  • Simple configuration of macros, triggers and relay settings via the WebGUI
  • PoE (Power over Ethernet) support
  • Firmware can easily be updated in the field via USB

Key Features

  • Seamlessly control devices with this integrated IR/RS-232 Relay Controller for automation.
  • Use the IP Control (RJ45) interface for network-based device management; easy integration.
  • Expand your control options with 4x IR Blaster and 4x Relay outputs, perfect for home automation.
  • Ensure reliable performance with robust ESD Protection; up to +/-12kV Air Discharge protection.
  • Wide IR Frequency range (30-50kHz) ensures compatibility with various IR-controlled devices.
  • Compact metal chassis ensures durability and efficient heat dissipation for long-term reliability.

What's in the box:

  • KanexPro Control System Center
  • IR Learner/Extender Cable
  • 4x IR Blaster Cable
  • 7x Terminal Block Connectors
  • 5V/2.6A Power Adaptor
  • Operation Manual
  • KanexPro 3 Year Limited Warranty
