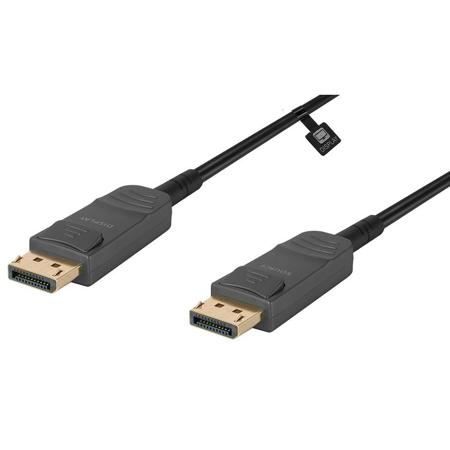

KanexPro 66' Active Fiber High Speed DisplayPort 1.4 Cable

SKU: KPDP14AOC20 MFR: CBL-DP14AOC20M
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this high-speed DisplayPort 1.4 cable.
  • Enjoy crystal-clear audio and video with a reliable 66-foot DisplayPort connection.
  • This durable DisplayPort cable supports HBR3 for stunning visuals and faster transfer speed.
  • Achieve seamless compatibility with DisplayPort devices using this active fiber cable.
  • Perfect for high-resolution displays, this DisplayPort cable delivers exceptional performance.
  • Get long-lasting performance with a DisplayPort cable designed for ultimate durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro 66' Active Fiber High Speed DisplayPort 1.4 Cable Specifications

  • Standards Compliance

    DisplayPort 1.4 / HBR3, HDCP 1.4 / 2.2; Fully Supports bi-directional EDID and HDCP communication

  • Connector Type

    DisplayPort Type Male Hybrid optical cable with OM3 fiber and copper wire

  • DP version

    1.4

  • Bandwidth

    HBR3 (High Bit Rate 3) (32.4 Gbit/s) 8.10 Gbit/s bandwidth per lane (810 MHz link symbol rate)

  • Color Depth

    HDR10 / Dolby Vision / 8K UHD/60hz 24 bit/px RGB color / 4K HDR at 120hz: 10bit BT .2020

  • HBR3

    Supported

  • Multi-Stream Transport (MST)

    Supported

  • Single-Stream Transport (SST)

    Supported

  • Bend Radius

    Dynamic/Static: 80mm/40mm

  • Tensile Strength

    Long term/Short term: 100N/200N

  • Crush Resistance

    Long term/Short term: 200N/400N

  • Aux Channel

    Supports Bidirectional Communications for EDID,,HDCP, Link Training

  • Cable Construction

    PVC Jacket, Aluminum Connector

  • Optical Technology

    4x Discrete Optical Channels,10GHz,850nm

  • Optical Transmitter

    Tx Module: 4X850nm Multi-Mode VCSELS

  • Optical Receiver

    RX Module 4X GaAs Pin Photo Diodes Hybrid Cable 4X Fiber and 8X Copper Wire

  • Power Supply

    Passive 5V DC 1A / 4.5v-5.5v VCC (No external Power needed)

  • Max Power Consumption

    250mW

  • Safety and Emission

    CE / FCC / RoHS

  • Operating and Storage Temp

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Cable Outer Diameter

    5mm (0.20")
    Outer: 4.6mm (0.18")

  • Cable Length

    20m (65.62') 20,000mm +/- 200mm

  • Dimensions

    Connector: 42 x 19.8 x 11.05mm (1.65 x 0.78 x 0.44")

  • UPC Code

    813982022195

About KanexPro 66' Active Fiber High Speed DisplayPort 1.4 Cable

Find the ultimate solution for high-resolution display connectivity with the KanexPro Active Fiber (AOC) DP 1.4 Cable. This 66' active fiber high-speed DisplayPort 1.4 cable is designed to seamlessly connect a high-resolution DisplayPort source to a high-resolution display, transcending the limitations of traditional cables that are restricted to short two to three-meter lengths.

With the ability to transmit flawless signals up to 50 meters (164'), this cable is a game-changer in the realm of digital connectivity. It fully supports the DisplayPort 1.3 specification, offering up to 32.4 Gbit/s bandwidth, and incorporates features from the DisplayPort 1.4 specification, such as High Dynamic Range (HDR) video.

Experience unparalleled video quality with support for resolutions up to 4K at 120Hz, 5K at 60Hz, and 8K at 30Hz with 24-bit RGB color. This cable is also backwards compatible with all previous DisplayPort versions and operates independently of an external power source.

Designed for the next generation of 8K HDR content, the KanexPro active fiber DP cable delivers uncompressed full bandwidth overall transmission bandwidth to 32.4 Gbit/s with the new HBR3 mode, featuring 8.1 Gbit/s per lane up to 50m/164' using the latest transmission technology.

The KanexPro AOC DP1.4 cables also support additional DP features like Multi-Stream Transport (MST), Dolby Vision, and AMD Freesync 2.0 modes. With 32.4 Gbit/s of bandwidth, these cables are guaranteed to work with all modern 8K monitors, making them the go-to choice for all your high-performance display needs.

Fiber Optic Cables represent the future of audio-video distribution technology, thanks to their immunity to external interference caused by electrical and radio devices. The KanexPro AOC fibers are constructed by a high-quality military-grade polymer that is more durable than glass-based fiber, allowing for easy installation and integration in the same manner as a traditional copper cable.

With the KanexPro's 3 Year warranty, you can trust this cable to deliver years of flawless 8K performance. Choose the KanexPro Active Fiber (AOC) DP 1.4 Cable for superior, interference-free digital connectivity.

KanexPro 66' Active Fiber High Speed DisplayPort 1.4 Cable Features

  • No external Power required
  • Plug and Play
  • HDCP Support
  • EDID Support
  • No Signal Loss
  • Supports both Single Stream Transport (SST) and Multi-Stream Transport (MST) modes
  • Compatible with AMD FreeSync 2.0 technology
  • Supports Dolby Vision video technology
  • Supports High Dynamic Range (HDR) video
  • Active cable is compatible with passive video adapters
  • Compliant with the HDMI 2.0 and DVI specifications
  • Supports video resolutions up to 8K at 30Hz, including 5K at 60Hz and 4K at 120Hz
  • Supports DisplayPort Dual-Mode (DP++)

Key Features

  • Experience superior sound quality with this high-speed DisplayPort 1.4 cable.
  • Enjoy crystal-clear audio and video with a reliable 66-foot DisplayPort connection.
  • This durable DisplayPort cable supports HBR3 for stunning visuals and faster transfer speed.
  • Achieve seamless compatibility with DisplayPort devices using this active fiber cable.
  • Perfect for high-resolution displays, this DisplayPort cable delivers exceptional performance.
  • Get long-lasting performance with a DisplayPort cable designed for ultimate durability.

What's in the box:

  • KanexPro 66' Active Fiber High Speed DisplayPort 1.4 Cable
  • KanexPro 3 Year Warranty
