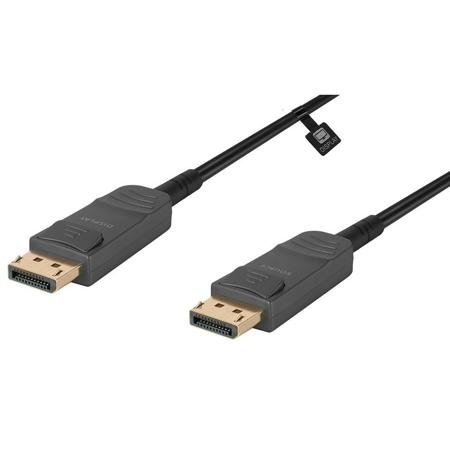

KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable
See all KanexPro items

KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable

SKU: KPDP14AOC30 MFR: CBL-DP14AOC30M
Be the first to review this itemAsk a Question
$524.99
OR
$88/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior video with this 100' DisplayPort 1.4 cable, supporting up to 8K UHD.
  • Enjoy HBR3 bandwidth for seamless high-speed data transfer with this DisplayPort cable.
  • This DisplayPort cable supports HDR10 and Dolby Vision, delivering vibrant color depth.
  • Achieve stable connectivity over long distances using this active fiber DisplayPort cable.
  • Our DisplayPort cable ensures compatibility with HDCP 1.4/2.2 for protected content.
  • Benefit from bi-directional EDID and HDCP communication using this DisplayPort cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable Specifications

  • Standards Compliance

    DisplayPort 1.4 / HBR3, HDCP 1.4 / 2.2; Fully Supports bi-directional EDID and HDCP communication

  • Connector Type

    DisplayPort Type Male Hybrid optical cable with OM3 fiber and copper wire

  • DP version

    1.4

  • Bandwidth

    HBR3 (High Bit Rate 3) (32.4 Gbit/s) 8.10 Gbit/s bandwidth per lane (810 MHz link symbol rate)

  • Color Depth

    HDR10 / Dolby Vision / 8K UHD/60hz 24 bit/px RGB color / 4K HDR at 120hz: 10bit BT .2020

  • HBR3

    Supported

  • Multi-Stream Transport (MST)

    Supported

  • Single-Stream Transport (SST)

    Supported

  • Bend Radius

    Dynamic/Static: 80mm/40mm

  • Tensile Strength

    Long term/Short term: 100N/200N

  • Crush Resistance

    Long term/Short term: 200N/400N

  • Aux Channel

    Supports Bidirectional Communications for EDID,,HDCP, Link Training

  • Cable Construction

    PVC Jacket, Aluminum Connector

  • Optical Technology

    4x Discrete Optical Channels,10GHz,850nm

  • Optical Transmitter

    Tx Module: 4X850nm Multi-Mode VCSELS

  • Optical Receiver

    RX Module 4X GaAs Pin Photo Diodes Hybrid Cable 4X Fiber and 8X Copper Wire

  • Power Supply

    Passive 5V DC 1A / 4.5v-5.5v VCC (No external Power needed)

  • Max Power Consumption

    250mW

  • Safety and Emission

    CE / FCC / RoHS

  • Operating and Storage Temp

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Cable Outer Diameter

    5mm (0.20")
    Outer: 4.6mm (0.18")

  • Cable Length

    30m (98.42') 30,000mm +/- 200mm

  • Dimensions

    Connector: 42 x 19.8 x 11.05mm (1.65 x 0.78 x 0.44")

  • UPC Code

    813982022201

About KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable

What sets the KanexPro Active Fiber High Speed DisplayPort 1.4 Cable apart is its exceptional ability to transmit high-definition video and audio signals over long distances without any loss of quality. This 100-foot (30.5 meters) cable is perfect for connecting high-resolution DisplayPort sources to high-resolution displays, even in larger spaces or when devices are far apart.

Engineered for superior performance, this cable fully supports the DisplayPort 1.3 specification, offering up to 32.4 Gbit/s bandwidth. It also incorporates features from the DisplayPort 1.4 specification, such as High Dynamic Range (HDR) video, ensuring vibrant and lifelike visuals. With the capacity to support video resolutions up to 4K at 120Hz, 5K at 60Hz, and 8K at 30Hz with 24-bit RGB color, this cable is designed to meet the demands of next-generation 8K HDR content.

The KanexPro Active Fiber DisplayPort Cable is also backwards compatible with all previous DisplayPort versions, providing versatility and convenience. It requires no external power source, making it a hassle-free solution for your connectivity needs.

This high-speed DisplayPort 1.4 cable also supports additional DisplayPort features such as Multi-Stream Transport (MST), Dolby Vision, and AMD Freesync 2.0 modes, enhancing your viewing and gaming experiences. Its impressive 32.4 Gbit/s bandwidth guarantees compatibility with all modern 8K monitors.

Constructed with high-quality military-grade polymer, the KanexPro Active Fiber Cable is more durable than traditional glass-based fiber cables. It's immune to external interference caused by electrical and radio devices, ensuring a flawless signal quality up to 164 feet. This makes it an ideal choice for high-performance display needs, offering a future-proof solution for audio and video distribution technology.

Experience the difference with the KanexPro Active Fiber High Speed DisplayPort 1.4 Cable, a reliable, flexible, and affordable solution for your high-definition connectivity needs.

KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable Features

  • 100' Active Fiber DisplayPort 1.4 cable for high-definition video and audio transmission
  • Supports 4K at 120Hz, 5K at 60Hz, and 8K at 30Hz resolutions with HDR
  • High bandwidth up to 32.4 Gbit/s compatible with 8K monitors
  • Features Multi-Stream Transport (MST), Dolby Vision, and AMD Freesync 2.0
  • Durable military-grade polymer construction, immune to signal interference
  • Backward compatible with all DisplayPort versions, no external power needed

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior video with this 100' DisplayPort 1.4 cable, supporting up to 8K UHD.
  • Enjoy HBR3 bandwidth for seamless high-speed data transfer with this DisplayPort cable.
  • This DisplayPort cable supports HDR10 and Dolby Vision, delivering vibrant color depth.
  • Achieve stable connectivity over long distances using this active fiber DisplayPort cable.
  • Our DisplayPort cable ensures compatibility with HDCP 1.4/2.2 for protected content.
  • Benefit from bi-directional EDID and HDCP communication using this DisplayPort cable.

What's in the box:

  • KanexPro 100' Active Fiber High Speed DisplayPort 1.4 Cable
  • KanexPro 3 Year Warranty
