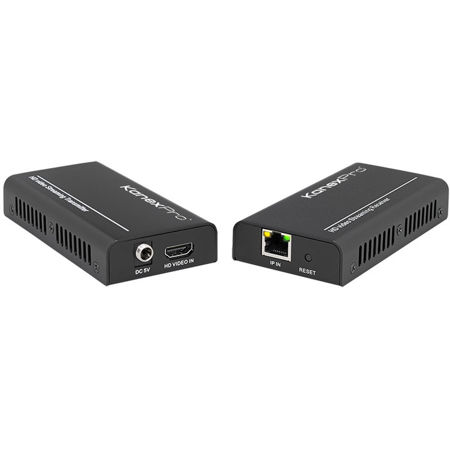

KanexPro IP Streamer HDMI Over IP Extender Kit with PoE Support

The KanexPro EXT-IPSTREAMKITX1 is an HDMI Over IP Extender set comprised of an encoder and a decoder with PoE (Power-Over Ethernet) support to cost-effectively multicast digital video and audio signals to one or more decoders using 1000Base-T Gigabit Ethernet Network at distances up to 656 feet (or 200m) over CATx cable. It features real-time encoding and decoding in order to broadcast full HD 1080p resolutions and does not require a managed network to operate.

• Extend pure 1080p resolutions up to 650' / 200 meters
• Features real-time AV coding and decoding to broadcast 1080p
• MJPEG Compression
• Easy set up, no configuration required
• Can be used with DVI connection
• Supports point to multi-point broadcasting over IP
• Supports PoE
• Can reach up to 656 feet (200 m) when used with PoE Switch
• Built-in EDID library
• HDCP compliant
• Inexpensive CAT5e/6 cable replaces bulky video cables
• Supports 10/100/1000 Ethernet connection
• Ideal for various applications such as digital signage, hospitality display signage and lobby, commercial AV systems, classroom projection systems and corporate video sharing & training

The HDCP compliant transmitter (encoder) unit connects to an HDMI source and a remote (decoder) unit connects to an HDMI display. They can be connected together to perform a Point-to-Point connection or a Point to multipoint connection via a network switch supporting up to 250 receivers. Easy plug and play connections no complicated network set up required.

Easy Integration
Perfect for distributing digital signage content or other HD video and audio across an Ethernet network. Since the transmitter and receivers install right into your existing LAN infrastructure, integration is stress-free.

Visually Lossless Compression for HD Extension
The EXT-IPSTREAMKITX1 uses MJPEG compression to broadcast high quality video and audio supporting full HD 1080p resolutions. It also packetizes signals and multicasts the AV signals, so all your HD source content can be delivered anywhere you want over Ethernet cabling without any loss in quality or compression.

Countless Ways to Connect
Point to point or point to multi-point configurations, connect up to 250 receivers to your remote screens by sending HDCP content from one transmitter to multiple screens like a DA.

Note

The Extender kit does not come with an AC adaptor, since power will be provided from LAN switch supporting PoE.
