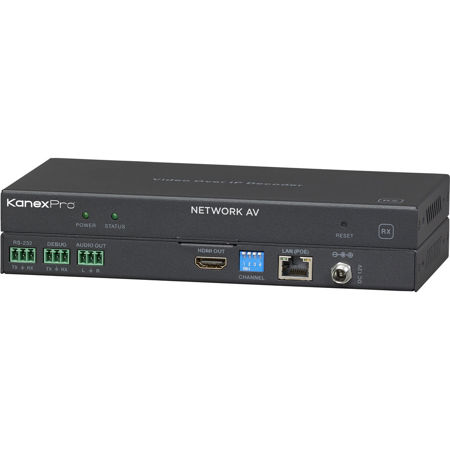

KanexPro EXT-NETAVRX NetworkAV Over IP Decoder with POE & RS-232

SKU: KPEXTNETAVRX MFR: EXT-NETAVRX
Earn VIP Reward Points

Key Features

  • Experience seamless HDMI over IP decoding with the KanexPro EXT-NETAVRX receiver.
  • Enjoy versatile connectivity with PoE & RS-232 support for streamlined integration.
  • Achieve high-quality video output up to 1080p at 60Hz for clear visuals using this decoder.
  • Easily manage audio with L/R stereo output, perfect for immersive sound experiences.
  • Benefit from a robust metal enclosure ensuring durability & long-lasting performance.
  • Simplify installations with the included DC 12V power adapter & user-friendly manual.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro EXT-NETAVRX Specifications

  • HDMI Compliance

    HDMI 1.4b

  • HDCP Compliance

    HDCP 1.4

  • Video Bandwidth

    4.95 Gbps

  • Video Resolutions

    640x480p at 60Hz 1920x1080p at 60Hz

  • Output Video Type

    H.264/MPEG-4 AVC

  • Encoding Data Rate

    Up to 30Mbps, configurable

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    8-bit

  • HDMI Audio Formats

    LPCM 2CH, 48KHz

  • L/R Audio Formats

    Analog Stereo 2CH

  • ESD Protection

    Human body model +- 8kV (air-gap discharge) & +- 4kV (contact discharge)

  • Encoder

    Inputs: 1x HDMI Type A (19-pin female)
    1x L/R Audio In (3.81mm Phoenix connector)
    1x RS-232 (3.81mm Phoenix connector)

    Outputs: 1x LAN (RJ45 connector)
    1x HDMI Type A (19-pin female)
    1x L/R Audio Out [3.81mm Phoenix connector)
    1x Debug (3.81mm Phoenix connector)

  • Decoder

    Inputs: 1x LAN (RJ45 connector)

    Outputs: 1x HDMI Type A (19-pin female)
    1x L/R Audio Out (3.81mm Phoenix connector)
    1x RS-232 (3.81mm Phoenix connector)
    1x Debug (3.81mm Phoenix connector)

  • Housing

    Metal Enclosure

  • Maximum Power Consumption

    10 watts

  • Power supply

    Input: AC100 - 240V 50/60Hz
    Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    Encoder: 5.7W (Max) Decoder: 5.6W (Max)

  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 - 90% RH (no condensation)

  • Dimensions (WxDxH)

    200 x 103 x 20mm (7.87 x 4.06 x 0.79")

  • Weight

    Sender: 530g (18.70 oz)
    Receiver: 526g (18.55 oz)

  • UPC Code

    813982021907

About KanexPro EXT-NETAVRX

Become a part of the digital revolution with the KanexPro EXT-NETAVRX, a state-of-the-art AV over IP decoder/receiver. This device is equipped with a single HDMI input, phoenix connectors for seamless audio output, and a LAN (Ethernet) port complemented by an RS-232 control port.

Leveraging the power of the advanced H.264 compression algorithm, the EXT-NETAVRX transmits full HD 1080p/60 to HDMI-based displays. This ensures lossless video and audio transmission with a latency of up to 1.5 milliseconds, providing you with a smooth and uninterrupted viewing experience.

The EXT-NETAVRX stands out with its POE (power over Ethernet) support. When connected to a POE-enabled network switch, it can transmit signals over a single CATx up to 330 ft. (100m). This feature enables one-to-one, one-to-many, and many-to-many transmissions over the Ethernet switch, making it a versatile solution for various applications.

Compliant with HDCP, the EXT-NETAVRX can be paired with our encoder - EXT-NETAVTX, to create a high-quality, low-bandwidth H.264 video matrix. This matrix supports resolutions up to 1920x1080 at 60fps, making it an ideal upgrade from traditional DVI/HDMI matrix switchers.

The EXT-NETAVRX also offers a Video Wall function and Multi-View. By adding multiple decoders, you can create a 3x3 video wall or multi-view, perfect for applications that require instant display and lossless video.

Control is at your fingertips with the EXT-NETAVRX's central web-based GUI. This built-in controller in the Encoder (transmitter) manages all your HDMI sources and display devices. You can control it using the Web GUI, mobile app, or any third-party control system.

The KanexPro EXT-NETAVRX is ideally suited for digital signage applications in bars, restaurants, houses of worship, large university campuses, and corporate AV signage. It is the perfect solution when high-resolution video and audio transmission is critical.

KanexPro EXT-NETAVRX Features

  • Decode AV over IP up to 330ft. (100m)
  • Create a Video Wall or a Multiview experience with 100's of screens
  • Unicast, Multicast, Matrix, Video Wall and Multi-viewer (up to 5 windows)
  • Unlimited scalability (based on network topology)
  • Low 1.5 frames per second latency
  • Video resolution up to 1080p/60Hz (4:4:4)
  • POE supported requiring no power supplies when used with POE switch
  • Supports Audio De-embedding on the decoder
  • Works with 1G standard IP switch
  • Works with H.264 IP Camera
  • H.264 Encoding/Decoding compression
  • Control via RS-232 & Web-based GUI controller built-into the Encoder
  • Compact design for an easy and flexible installation to rack
  • Backed by KanexPro 3-year parts and labor warranty

Key Features

  • Experience seamless HDMI over IP decoding with the KanexPro EXT-NETAVRX receiver.
  • Enjoy versatile connectivity with PoE & RS-232 support for streamlined integration.
  • Achieve high-quality video output up to 1080p at 60Hz for clear visuals using this decoder.
  • Easily manage audio with L/R stereo output, perfect for immersive sound experiences.
  • Benefit from a robust metal enclosure ensuring durability & long-lasting performance.
  • Simplify installations with the included DC 12V power adapter & user-friendly manual.

What's in the box:

  • KanexPro EXT-NETAVRX NetworkAV Over IP Decoder with POE & RS-232
  • DC 12V Power Adaptor
  • User Manual
  • KanexPro 3 Year Parts & Labor Warranty
