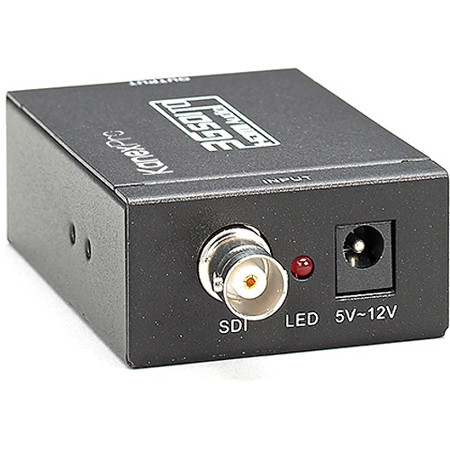

KanexPro 3G/HD/SD-SDI to HDMI Converter

SKU: KPEXTSDHDX

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-09-02T08:57:54

Rated 5 out of 5

Great

Everything was great

HARVEY W.

2020-06-10T08:20:34

Rated 2 out of 5

Didn't work with my HDMI encoder

Turned on, but I never got HDMI sync - no image showed up on my 4k-capable HDMI capture device, or on monitors connected. Replaced with a much cheaper s-video converter, no issues at all.

SHAUN K.

2019-05-23T16:28:29

Rated 1 out of 5

Absolutely useless. This is not 4K. It is only 1080P

This converter only converts VGA to 1080P, not 4K. False advertisement from the manufacturer about 4K. Don't waste your time and money buying this if you expect 4K output.

A Z.

2019-01-24T08:29:56

Rated 5 out of 5

Works perfect

Love this thing! Brought back to life electronics I was about to throw away. Picture and color are great.

Patrick H.

2018-12-29T04:27:18

Rated 5 out of 5

Kanexpro

This converter is very good

EDUARDO C.

2018-03-14T13:47:36

Rated 5 out of 5

Performs exactly as advertised

I needed an affordable solution that would allow me to convert the analog output from an old VHS player to HDMI for viewing on a modern flat panel HDTV. The Kanex Pro has proven to be the perfect solution. Highly recommended.

Ed W.

2017-11-22T13:57:56

Rated 3 out of 5

Good Product! But Your Target Component Mightn't "See" It

This product works well. I bought it so I could continue to use a fine video cassette recorder (VCR) with a new UHD television that has no component inputs. The Kanex Pro Converter was delivered before the new TV, so I tested the converter using the VCR with an HDMI connection to a seven-year-old Samsung HDTV. Presto! It worked. However, you need to be aware of an annoying quirk with the new TV I bought (and perhaps, some other TV's as well) that rendered the converter unusable with it. For various reasons, I chose a Samsung UN49MU8000 model. This is a very good TV; however: (1) In addition to an RF antenna port, it has only four HDMI ports and no other input ports. (Hence, the desirability of a converter.); and, (2) Although there is no rational reason the converter shouldn’t be able to work with the TV, Samsung’s kindergarten-level setup software doesn’t just let you plug in a component and “fly” with it. Instead, setup software “perceives” the Kanex Pro as a “Blu-Ray DVD player” and requires the customer to select a brand from a limited list of choices. Kanex Pro was not among the choices and I couldn't find a way to make the connector work with this TV. This is quite a disappointment and I’m not quite sure just what to recommend to you to avoid encountering this anomaly. The steep $ price for the converter is great value if, and only if, you are able to use it. Yes, I’m able to connect the VCR to the new TV via the VCR’s and TV’s respective RF ports, but what an inferior connection, indeed, the booby prize.

FRED S.

2017-07-25T11:41:40

Rated 5 out of 5

Great piece of gear

I am using this to distribute a vga signal to two projectors from a switcher that has an SDI output. This device is working just fine and I am able to output 1920x1080p to these projectors. The display quality is really nice, and I'm sure it would be a bit sharper if I run SDI to the projectors and convert to HDMI at the projectors themselves, but we already have VGA cable run to these projectors, making this an easy choice.

STEVEN H.

2017-05-26T11:55:43

Rated 5 out of 5

Works as described

Simple to use and set up.

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

KanexPro Converter Specifications

  • Video Input

    Input: 1x SDI
    Input Connector: 1x BNC
    Input Video Signal: SD/HD/3G SDI

  • Video Output

    Output: 1x HDMI Female
    Output connector: HDMI
    Output Video Signal: SD/HD/3G SDI/DVI/ HDMI

  • Transmission Distance

    On SDI Input Side: 1080p up to 328' / 99.98m
    480i/576i up to 984' / 299.93m

  • Resolutions (HDTV)

    1080p,1920 x 1080 720p; 1280 x 720 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode

  • External power supply

    5V -12V

  • Power consumption

    5W

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Operating Humidity

    10% to 85 % RH (no condensation)

  • Storage Temperature

    -10 to 80 deg. C / 14 to 176 deg. F

  • Storage Humidity

    5% to 90 % RH (no condensation)

  • Regulatory Approvals Converter

    FCC, CE, UL

  • Regulatory Approvals Power Supply

    FCC, CE, UL

  • Dimensions (L x W x H)

    3.14 x 1.61 x 0.98" / 79.76 x 40.89 x 24.89mm

  • Weight

    0.33lbs / 0.15kg

  • UPC Code

    813982020061

About KanexPro Converter

FEATURED REVIEWS

Great

By HARVEY W.

Everything was great

Works perfect

By Patrick H.

Love this thing! Brought back to life electronics I was about to throw away. Picture and color are great.

The KanexPro SDI to HDMI converter is an inexpensive version for their SDI customers looking to simply convert SDI signals to HDMI. It supports SDI, 3G-SDI & HD-SDI to an HD display or any monitor equipped with an HDMI jack. It supports signal re-clocking and equalization for longer SDI runs ideal for broadcasting and house of worship centers. Perfect for broadcast monitoring to HDMI displays. It will save you a ton of money compared to buying special monitors with the capability to purchase an even more specialized, proprietary SDI cards.

Note

This only converts from SDI to HDMI and does not support 4K at this time.

KanexPro Converter Features

  • Get the highest quality 3G-SDI conversion to HDMI
  • Integrated Audio de-embedder for 8-channel / 48KHz audio
  • Supports multiple video resolutions: SDI 525i, 625i
  • HD: 720p 24, 25,30,50 & 60 Hz
  • HD: 1080i 50 & 60 Hz
  • HD: 1080p 24, 25,30, 50 & 60 Hz
  • Data rates up to 2.97 Gbps
  • Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
  • SDI Input Cable Length Support -up to 300m
  • HD mode length up to: 130m
  • One way SDI output with re-clock function
  • Supports cascading of multiple SDI's in application
  • Automatically switches between SD, HD and 3 Gb/s SDI standards
  • Compact in size, perfect for mobile broadcasting units and users

What's in the box:

  • KanexPro 3G/HD/SD-SDI to HDMI Converter
  • 5V DC Power Supply
  • Operation Manual
  • KanexPro 1 Year Parts and Labor Warranty
