KanexPro 3G/HD/SD-SDI to VGA Converter with Scaling

SKU: KPEXTSDIVGA

This item is no longer available.

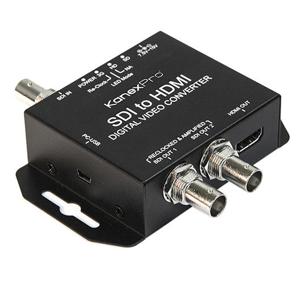

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?FRANK M : For online Worship Service for a church in Eagle Idaho

Reviews about this item

Review Summary

2020-09-02T08:57:54

Rated 5 out of 5

Great

Everything was great

HARVEY W.

2020-06-10T08:20:34

Rated 2 out of 5

Didn't work with my HDMI encoder

Turned on, but I never got HDMI sync - no image showed up on my 4k-capable HDMI capture device, or on monitors connected. Replaced with a much cheaper s-video converter, no issues at all.

SHAUN K.

2019-05-23T16:28:29

Rated 1 out of 5

Absolutely useless. This is not 4K. It is only 1080P

This converter only converts VGA to 1080P, not 4K. False advertisement from the manufacturer about 4K. Don't waste your time and money buying this if you expect 4K output.

A Z.

2019-01-24T08:29:56

Rated 5 out of 5

Works perfect

Love this thing! Brought back to life electronics I was about to throw away. Picture and color are great.

Patrick H.

2018-12-29T04:27:18

Rated 5 out of 5

Kanexpro

This converter is very good

EDUARDO C.

2018-03-14T13:47:36

Rated 5 out of 5

Performs exactly as advertised

I needed an affordable solution that would allow me to convert the analog output from an old VHS player to HDMI for viewing on a modern flat panel HDTV. The Kanex Pro has proven to be the perfect solution. Highly recommended.

Ed W.

2017-11-22T13:57:56

Rated 3 out of 5

Good Product! But Your Target Component Mightn't "See" It

This product works well. I bought it so I could continue to use a fine video cassette recorder (VCR) with a new UHD television that has no component inputs. The Kanex Pro Converter was delivered before the new TV, so I tested the converter using the VCR with an HDMI connection to a seven-year-old Samsung HDTV. Presto! It worked. However, you need to be aware of an annoying quirk with the new TV I bought (and perhaps, some other TV's as well) that rendered the converter unusable with it. For various reasons, I chose a Samsung UN49MU8000 model. This is a very good TV; however: (1) In addition to an RF antenna port, it has only four HDMI ports and no other input ports. (Hence, the desirability of a converter.); and, (2) Although there is no rational reason the converter shouldn’t be able to work with the TV, Samsung’s kindergarten-level setup software doesn’t just let you plug in a component and “fly” with it. Instead, setup software “perceives” the Kanex Pro as a “Blu-Ray DVD player” and requires the customer to select a brand from a limited list of choices. Kanex Pro was not among the choices and I couldn't find a way to make the connector work with this TV. This is quite a disappointment and I’m not quite sure just what to recommend to you to avoid encountering this anomaly. The steep $ price for the converter is great value if, and only if, you are able to use it. Yes, I’m able to connect the VCR to the new TV via the VCR’s and TV’s respective RF ports, but what an inferior connection, indeed, the booby prize.

FRED S.

2017-07-25T11:41:40

Rated 5 out of 5

Great piece of gear

I am using this to distribute a vga signal to two projectors from a switcher that has an SDI output. This device is working just fine and I am able to output 1920x1080p to these projectors. The display quality is really nice, and I'm sure it would be a bit sharper if I run SDI to the projectors and convert to HDMI at the projectors themselves, but we already have VGA cable run to these projectors, making this an easy choice.

STEVEN H.

2017-05-26T11:55:43

Rated 5 out of 5

Works as described

Simple to use and set up.

ACCOUNTS P.

KanexPro Converter Specifications

  • Video Input

    Input: 1x (SD/HD/3G-SDI)
    Input Connector: 1x BNC
    Input Video Signal: SD/HD/3G SDI

  • Video & Audio Output

    Output: 1x SDI, 1x VGA
    Output Connector: 1x BNC, 15-Pin HD
    Output Video Signal: SD/HD/3G SDI/DVI/ HDMI
    Output Audio: 1x 3.5mm stereo connection

  • SMPTE Standards supported

    425M Level A&B, 424M, 292M, 259M-C

  • SDI Transmission Rates

    Up to 3.0 Gbps & 2.97 Gbps
    SDI Input /Output resolutions: SD: 480i at 60, 576i at 50 HD:720p at 50/60, 1080i at 50/60 3G:1080p at 24/25/29.97/30/50/59.94/60

  • VGA Output resolutions

    SDI: 800x600,1024x768
    PC: 1280x720, 1440x900
    PC: 1280x1024, 1680x1050
    HD: 1600x1200, 1920x1080 & 1920x1200

  • Temperature

    Operating: 0 to 70 deg. C / 32 to 158 deg. F
    Storage: -10 to 80 deg. C / 14 to 176 deg. F

  • Humidity

    Operating: 10% to 85 % RH (no condensation)
    Storage: 5% to 90 % RH (no condensation)

  • Regulatory Approvals

    Converter: FCC, CE, UL
    Power Supply: FCC, CE, UL

  • External power supply

    5V DC -12V

  • Power consumption

    5W

  • Dimensions (L x W x H)

    3.5 x 2.36 x 0.98" / 88.90 x 59.94 x 24.89mm

  • Weight

    0.57lbs / 0.26kg

  • UPC Code

    813982020085

About KanexPro Converter

FEATURED REVIEWS

Great

By HARVEY W.

Everything was great

Works perfect

By Patrick H.

Love this thing! Brought back to life electronics I was about to throw away. Picture and color are great.

The KanexPro SDI to VGA Converter allows SDI, HD-SDI and 3G-SDI signals to be displayed on a VGA monitor or a projector ensuring high bit-rates up to 3 Gbps for faster signal transmission without loss in broadcasting quality signals. It provides scaling and signal re-clocking functions for optimal resolution and longer length transmission up to 200 meters for HD signals and 300 meters for SD formats. The SDI converter also features a loop-through SDI output for local monitor support simultaneously. Ideal for use with display equipment such as projectors, plasma TV and LCD screens.

Note

Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

KanexPro Converter Features

  • Get the highest quality 3G-SDI conversion to VGA formats
  • Built-in Scaler for optimal resolution up to 1920x1080
  • Front panel "Resolution" button for switching to different video resolutions
  • Equalized and re-clocked loop output
  • Supports multiple VGA output resolutions: SDI: 800x600,1024x768, PC: 1280x720, 1440x900, PC: 1280x1024, 1680x1050, HD: 1600x1200, 1920x1080 & 1920x1200
  • Simultaneous display with SDI /VGA signals
  • Alternative audio output to analog 2CH stereo
  • Data rates up to 3 Gbps
  • SDI Input cable length support- up to 300m
  • HD mode length up to: 200m
  • Capable of cascading to multiple units
  • Automatic detection of SD, HD and 3 Gb/s SDI standards
  • Compact in size, perfect for mobile broadcasting units

What's in the box:

  • KanexPro 3G/HD/SD-SDI to VGA Converter
  • 5V DC Power Supply
  • 19 " Rack Mounting Ears
  • Operation Manual
  • KanexPro 1 Year Parts and Labor Warranty
