KanexPro 4K HDMI 3x1 Switcher with HDCP 2.2 Compliant

SKU: KPHD203X14K MFR: SW-HD20-3X14K
$73.45
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 3 HDMI sources with this reliable 4K HDMI switcher.
  • Enjoy high-resolution video up to 4K@60Hz for stunning clarity and detail.
  • This affordable HDMI switch supports HDCP 2.2, ensuring compatibility with devices.
  • Easy setup: Connect your devices and switch sources with the included remote.
  • Low latency switching ensures smooth transitions for gaming and presentations.
  • Wide compatibility: Works with Blu-ray players, consoles, and streaming devices.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$4.99

2 Year

$7.99

3 Year

$13.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JACKEY G : connecting xbox one x to pc monitor

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro 3x1 Switcher Specifications

  • Signal Input/Outputs

    Input DDC Signal: 5V p-p (TTL)
    Input & Output Signal: High Speed HDMI Spec 2.0a

  • Input Ports

    3x HDMI (Female)

  • Output Port

    1x HDMI (Female)

  • Operating Frequency

    Vertical Frequency Range: 50/60Hz

  • Supported Resolutions

    (HDTV) Interlaced (50-60Hz): 480i, 576i, 1080i
    Progressive (50-60Hz): 480p, 576p, 720p, 1080p & 4K at 30 & 60Hz
    480i-1080p50/60, 4Kx2K at 24/30
    4k2k at 60Hz with 12bit YCBCR 4:2:0
    VGA-UXGA

  • Input Port

    1x IR Receive port

  • Power Consumption

    2W

  • External Power Supply

    5VDC at 1A

  • Regulatory Approvals

    Converter Unit: FCC, Ce, UL
    Power Supply: UL, Ce, FCC

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Chassis Material

    Metal

  • Relative Humidity

    20-90 % RH (non-condensing)

  • Video Bandwidth

    300MHz/10.2Gbps

  • ESD Protection

    Human Body model: +/- 8kV (air-gap discharge), +/- 4kV (contact discharge)

  • Dimensions (W x H x D)

    2.51 x 0.67 x 6.1" / 6.38 x 1.70 x 15.49cm

  • Weight

    6.35oz / 180.02g

  • UPC Code

    813982020412

About KanexPro 3x1 Switcher

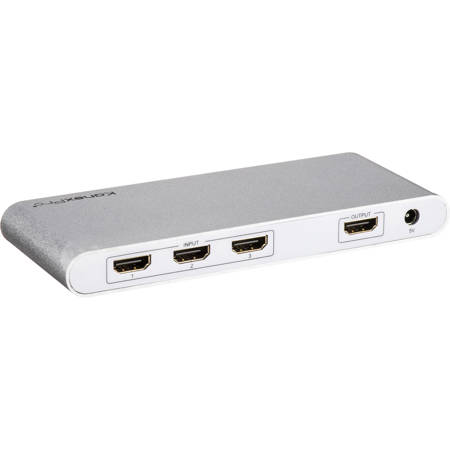

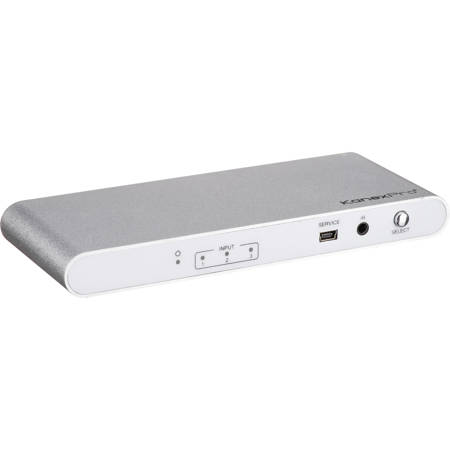

The KanexPro SW-HD20-3X14K is a high-performance, three HDMI input to one HDMI output switcher engineered to support True4K UHD resolutions up to 4K at 60Hz with HDCP 2.2 specifications. It also supports all 3D TV formats and Full HD 1080p resolutions. Instantly switch between your 4K HDMI devices to one display and control the switch using IR remote included. Perfect for home theater rooms, small offices and other applications where there is a need to switch three HDMI sources to one 4K display.

KanexPro 3x1 Switcher Features

  • Auto switch three HDMI sources to one 4K display
  • 4K at 60Hz UHD, 1080p & 3D resolutions
  • 4Kx2K at 30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2
  • 4Kx2K at 60Hz with 12bit YCBCR 4:2:0
  • Computer resolutions up to QSXGA at 60Hz
  • Supports 3D frame sequential video formats to 1080p at 60Hz
  • HDCP 2.2 compliant
  • Digital audio support LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • High bandwidth for ultimate video experience
  • Front-panel LED's for input/ output signal presence
  • Ultra compact design
  • 5VDC external power supply included
  • Includes IR remote

Key Features

  • Seamlessly switch between 3 HDMI sources with this reliable 4K HDMI switcher.
  • Enjoy high-resolution video up to 4K@60Hz for stunning clarity and detail.
  • This affordable HDMI switch supports HDCP 2.2, ensuring compatibility with devices.
  • Easy setup: Connect your devices and switch sources with the included remote.
  • Low latency switching ensures smooth transitions for gaming and presentations.
  • Wide compatibility: Works with Blu-ray players, consoles, and streaming devices.

What's in the box:

  • KanexPro 4K HDMI 3x1 Switcher
  • 5V/1A Power Supply
  • Remote Control
  • 38kHz IR Receiver Cable
  • User Manual
  • KanexPro 3 Year Limited Warranty
