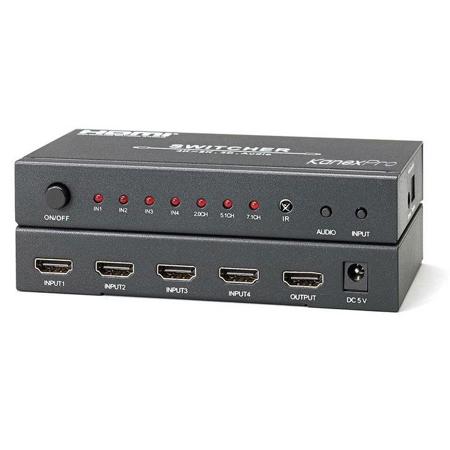

KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output
See all KanexPro items

KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output

SKU: KPHD4X1AUD4K

This item is no longer available.

Recommended Alternatives

KanexPro Switcher: Picture 1 regular
KanexPro UltraSlim 4K HDMI 4x1 Switcher
$314.95
KanexPro SW-HDSC51HDBT: Picture 1 regular
KanexPro SW-HDSC51HDBT HDBaseT Seamless Presentation Switcher & Scaler
$1,574.95
KanexPro HDMI Card: Picture 1 regular

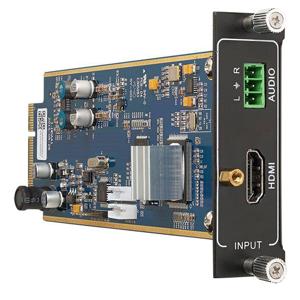

KanexPro Flexible One Input 4K HDMI Card with Audio
$367.45
KanexPro HDMI card: Picture 1 regular

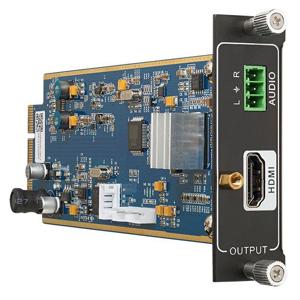

KanexPro Flexible 1-Output HDMI Card with De-Embedded PCM Audio
$451.45
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Nick N : Does this come with a remoter conrtol?
Shopper : Why Did You Choose This?Robert S : PriceSwitch O : In my experience, KanexPro and ATEN are the only brand names to buy if you're looking for something that isn't AJA or BlackMagic. You can get cheaper, and they will work, but not for long. KanexPro is solid, trustworthy and holds up when it comes to HDMI anything.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

KanexPro 4x1 Switcher Specifications

  • Input DDC Signal

    5V p-p (TTL)

  • Input & Output Signal

    High Speed HDMI 1.4a Spec

  • Output Audio Signal

    Toslink & 3.5mm Stereo

  • Operating Frequency

    Vertical Frequency Range: 50/60Hz

  • Video Amplifier Bandwidth

    2.97Gbps per Channel

  • Resolutions

    (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
    Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K at 30Hz

  • HDMI Audio Output

    PCM 2/5.1/7.1 CH, Dolby 5.1 DTS 5.1, D-TrueHD, DTS-HD

  • Power Consumption

    3W

  • External Power Supply

    5VDC at 1A (US/EU Standard)

  • Power Requirements

    Power Supply CE/FCC/UL Certified

  • Regulatory Approvals

    Switcher Unit: FCC, Ce, UL
    Power Supply: UL, Ce, FCC

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Dimensions (W x H x D)

    3.34 x 0.98 x 6.4" / 8.48 x 2.49 x 16.26cm

  • Weight

    0.77lbs / 0.35kg

  • UPC Code

    813982020023

About KanexPro 4x1 Switcher

The KanexPro 4x1 HDMI Switcher is a compact design HDMI switcher that allows connection to four Ultra HD or 1080p devices to one Ultra HD display with dedicated digital and stereo audio outputs. It supports resolutions up to 3840x2160 at 30p. Deep Color, 3DTV pass-through and lossless audio formats such as LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio are also supported.

The 4x1 switcher features selectable audio outputs from 2.1, 5.1 & 7.1multi-channel audio from either the front panel Ideal for home theater systems, retail establishments, multi-room installations, hospitals, lobbies, sports bars, schools or any installation where multi-source 4K HDCP-compliant content needs to be routed to a display.

KanexPro 4x1 Switcher Features

  • Switch 4 inputs to one output with separate audio
  • Supports 4K Ultra HD resolutions & 1080p HD
  • HDCP & EDID compliant
  • 3DTV Pass-through
  • Up to 12-Bit Deep Color Support
  • Dedicated, flexible audio input/output port
  • Audio support 3.5mm stereo & Toslink output
  • Lip Sync pass-through
  • Push button switching control
  • Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus -HD Master Audio
  • Front-panel LED's for input/ output signal presence
  • Ultra compact design
  • 5VDC external power supply included
  • IR / Remote control included

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KanexPro 4x1 HDMI Switcher
  • 5VDC Power Supply
  • Remote Control
  • Operation Manual
  • KanexPro 1 Year Parts and Labor Limited Warranty
