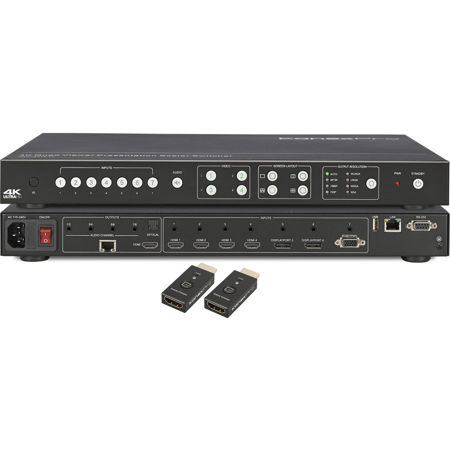

KanexPro 4K Video Tiler & Scaler Switcher with HDBaseT and Click to Show-Me Controller

SKU: KPHDBTVTSC72 MFR: HDBT-VTSC72-4K
Earn VIP Reward Points

Key Features

  • Create dynamic video walls with this 4K video tiler and scaler switcher.
  • Enjoy wide compatibility with HDMI, DisplayPort, and VGA inputs on this switcher.
  • Experience low latency video switching for seamless presentations and events.
  • Easily manage your video layout with the intuitive 'Click to Show-Me' controller.
  • Ensure a reliable connection with HDBaseT output for extended distances.
  • This video switcher offers easy setup and advanced EDID management utilities.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro Switcher Specifications

  • Video Input Formats

    1x VGA HD15 - RGB, H, V
    4x HDMI
    2x DisplayPort

  • Format Compliance

    HDMI v1.4
    DVI v1.0
    DisplayPort v1.2
    HDCP v1.4
    HDBaseT Class A (Optional)

  • Video Output Formats

    1x HDMI
    1x HDBaseT Class A (Optional)

  • Supported Color Depth

    8-bit / 10-bit / 12-bit

  • HDCP Compliance

    HDCP 1.4

  • EDID Memory

    Advanced EDID Management utilities

  • Audio Input Formats

    HDMI and DisplayPort: embedded digital audio
    External analog stereo audio: 20kOhms impedance

  • Audio Output Formats

    HDMI: embedded digital audio
    7.1 Surround sound (analog) audio: 20 kO impedance
    TOSLINK: Digital Optical Audio

  • Audio Bandwidth

    20 Hz to 20 kHz

  • Audio Sampling Rate

    48 kHz, 8CH, LPCM

  • Audio Levels

    Stereo Audio: unity, nominal
    Stereo Audio: 0.5 - 1.0 Vpp

  • Audio Delay Adjustment

    User-adjustable from 0 - 400ms in increments of 40ms

  • HDMI / DVI Input

    4x HDMI 19-pin female connectors

  • DisplayPort Input

    2x 20-pin DisplayPort female connectors with locking mechanism

  • Analog RGB Input

    1x HD15 (VGA) female connector

  • Analog Audio Input

    7x Stereo Audio on 3.5mm PC audio female connectors

  • Power Input

    1x IEC C14 power connector

  • HDMI Output

    1x HDMI 19-pin female connector

  • HDBaseT Output (Optional)

    1x Shielded CAT-6A connector

  • Digital Audio Output

    1x TOSLINK Optical female connector

  • Analog Audio Output

    7.1 Surround sound (analog) audio on 4x 3.5mm PC audio female connectors

  • Phase Lock Loops

    12-bit, Triple-Analog-to-Digital Converter

  • De-Interlacing

    3D Motion-Adaptive De-Interlacing

  • Pull-Down

    Automatic 3:2 pull-down and 2:2 pull-down detection and recovery

  • Noise Reduction

    3D

  • Display Settings

    Output Resolution, Window Layout, Video Input Position, Aspect Ratio, VGA Auto Adjust

  • Window Layout (optional)

    Preset up to 16 different layouts under quad viewer

  • Front Panel

    18x Backlit Buttons

  • IR Remote Control

    IR Remote Control with 19x buttons for control

  • RS-232

    Serial communication, 9-pin D-sub connector

  • Ethernet

    Web-based GUI or Telnet

  • Construction

    1mm metal enclosure with matte black finish
    10mm aluminum alloy front panel with draw black finish

  • Mounting Options

    Mountable Rack Ears, 1U full width

  • Operating Temperature

    +32 to +104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to +140 deg. F (-20 to 60 deg. C)

  • Humidity (Storage / Operating)

    20% to 90% (non-condensing)

  • AC Power

    Input: 100-240VAC / 50-60Hz

  • Power Consumption

    15 Watts (max.)

  • Power Over HDBaseT (POH)

    Optional HDBaseT Output functions as a PSE Type 1 device (13 watts)

  • Dimensions (HxWxD)

    Without Feet or Rack Ears: 1.7 x 17.3 x 11.0" (43.18 x 439.42 x 279.40mm)
    With Feet: H = 2.0" (50.80mm)
    With Rack Ears: W = 19.0" (482.60mm)

  • Weight

    7.3 lbs (3.31kg)

  • UPC Code

    813982020573

About KanexPro Switcher

Take your video presentations and collaborations to the next level with the KanexPro HDBT-VTSC72-4K, an advanced 7-input, 2-mirrored output (HDMI & HDBaseT) presentation scaler-switcher. This sophisticated device is engineered to upscale HDMI, DisplayPort, and VGA sources - such as laptops, Blu-ray players, and desktops - to true 4K at 30Hz resolution, offering a seamless Quad Window viewing experience for any collaborative space.

With a plethora of inputs, including 4 HDMI, 2 DisplayPort, and 1 VGA, this switcher is designed for versatility and can accommodate a wide range of devices. The mirrored HDMI and HDBaseT outputs support extended distances over CAT6 up to 70 meters with Power over Cable (PoC), ensuring reliable long-distance signal transmission.

Compliant with the latest HDCP specifications, the KanexPro HDBT-VTSC72-4K ensures secure content delivery. It also features an elite 4K scaling engine that supports both up-scaling and down-scaling, making it compatible with various display resolutions. The integrated Quad-Viewer allows for simultaneous viewing from four inputs, creating an immersive multi-view experience.

The switcher includes two innovative 4K-HDCLICKERS for the Click-to-Show-Me function, enabling users to share content instantly with a simple click. This feature is particularly useful in fast-paced environments where time is of the essence.

The KanexPro HDBT-VTSC72-4K supports native 4K inputs and outputs, along with audio de-embedding and breakaway audio switching for unbalanced stereo. It also incorporates DP 1.2a resolutions up to 3840x2160 at 60Hz and supports MHL inputs via HDMI. The auto-scaling feature automatically detects EDID from the display to scale the optimized resolution, ensuring the best possible image quality.

Control is made easy with multiple options, including front panel buttons, IR, RS232, and LAN (Web), allowing for seamless integration into any system. This professional-grade switcher is also compatible with popular video conferencing systems such as Polycom, Cisco, and Avaya, and can be integrated with table or wall cable connection boxes in conference applications.

Housed in a 1U rack-mountable enclosure, the KanexPro HDBT-VTSC72-4K comes with mounting hardware included, making installation straightforward. It is ideal for use in a variety of settings, from modern classrooms and themed conference rooms to control rooms, huddle spaces, and any collaborative environment where high-quality video switching and scaling are required.

Please note that the HDBASE70POER receiver is not included with this system. For a complete installation, contact our sales team to order this additional component. For optimal performance and to reduce video dropout issues caused by EMI, it is recommended to use shielded CAT5e/CAT6 cables and shielded RJ45 connectors with our HDBaseT products.

KanexPro Switcher Features

  • Advanced 7-input, 2-mirrored output (HDMI & HDBaseT) presentation scaler-switcher for high-definition video content
  • Supports upscaling HDMI, DisplayPort, and VGA sources to true 4K at 30Hz resolution for superior image quality
  • Integrated Quad-Viewer for simultaneous viewing from four inputs, enhancing the collaborative experience
  • Includes two innovative 4K-HDCLICKERS for instant content sharing with the Click-to-Show-Me function
  • Multiple control options including front panel buttons, IR, RS232, and LAN (Web) for seamless integration
  • Compatible with popular video conferencing systems like Polycom, Cisco, and Avaya, suitable for various professional settings

Key Features

  • Create dynamic video walls with this 4K video tiler and scaler switcher.
  • Enjoy wide compatibility with HDMI, DisplayPort, and VGA inputs on this switcher.
  • Experience low latency video switching for seamless presentations and events.
  • Easily manage your video layout with the intuitive 'Click to Show-Me' controller.
  • Ensure a reliable connection with HDBaseT output for extended distances.
  • This video switcher offers easy setup and advanced EDID management utilities.

What's in the box:

  • KanexPro 4K Video Tiler & Scaler Switcher
  • External AC Power Cord
  • IR Remote Control Unit
  • 2x Rack Mount Ear
  • Mounting Hardware
  • KanexPro 3 Year Limited Warranty
