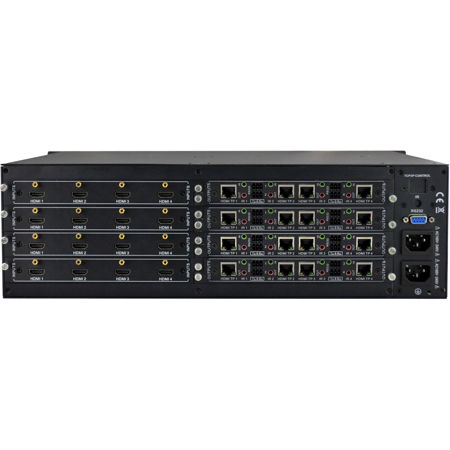

KanexPro 4K UHD 16x16 Modular Matrix Switcher

SKU: KPHDMMX1616 MFR: HDMMX1616-4K
Earn VIP Reward Points

Key Features

  • Experience seamless 4K UHD video switching with this 16x16 modular matrix!
  • Achieve reliable connections for all your devices using this video switcher.
  • Enjoy wide compatibility; this matrix supports various input/output configurations.
  • Control via Ethernet with TCP/IP for easy integration into existing systems.
  • Low latency switching ensures smooth transitions for live events and broadcasts.
  • This 4K UHD matrix offers good value, combining performance and modular design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro Matrix Switcher Specifications

  • Securing mechanism

    Thumbscrew

  • Chassis Input

    4x Input Cards

  • Chassis Output

    4x Output Cards

  • Bandwidth for each I/O

    340 MHz (10.2 Gbps)

  • Input/ output impedance

    75Ohms

  • Switching speed

    200ns (max)

  • Gain

    0 dB

  • Max delay

    5nS (+/- 1nS)

  • Serial control port

    RS-232, 9-pin female D connector

  • Pin Configurations

    2 = TX, 3 = RX, 5 = GND

  • Front panel control

    Buttons

  • TCP/IP Control

    Yes, via Ethernet

  • Material

    Black painted Aluminum

  • Frame Size

    3 RU rack chassis

  • Humidity

    10 - 90%

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20 - 90%, Non-condensing

  • Storage Temperature

    -10 to 60 deg. C / 14 to 140 deg. F

  • Storage Humidity

    20 - 90%, Non-condensing

  • International Power Supply

    110VAC - 240VAC, 50/60Hz

  • Installation

    Rack mountable

  • Power Consumption

    135W fully populated

  • ESD protection

    15kV

  • Regulatory

    CE, RoHs

  • Diagnostic Indicators

    LCD output status & power LED

  • Dimensions (W x D x H)

    483 x 320 x 88mm / 19.02 x 12.60 x 3.46"

  • Weight

    3kg / 6.61lbs

  • UPC Code

    814556014332

About KanexPro Matrix Switcher

How do you ensure that your professional AV setup can handle the latest in ultra-high-definition content Look no further than the KanexPro 4K UHD 16x16 Modular Matrix Switcher, model HDMMX1616-4K. This advanced and sophisticated system is designed to cater to the most demanding audiovisual environments, offering unparalleled flexibility and high-tech performance.

The KanexPro HDMMX1616-4K boasts a customizable 16x16 modular matrix, serving a diverse range of AV connections with its four input and four output slots. Each slot is capable of supporting up to four device connections, allowing for seamless integration into your existing setup. With the ability to transmit 4K UHD resolution through HDMI and HDBaseT, this switcher ensures that your content is displayed with crystal-clear quality, maintaining the integrity of 4K media.

This innovative switcher supports a variety of connections including VGA, SDI, DVI, HDMI, HDBaseT, and Fiber optic, making it a versatile choice for professional applications. The high-bandwidth capacity of up to 10.2 Gbps guarantees that high-resolution video signals are switched without any compromise in quality.

Expandability is at the heart of the HDMMX1616-4K, with the option to add I/O modular cards as your needs evolve. The cross-point ultra-switching feature ensures that any input can be routed to any output, or the same input to all outputs, providing ultimate control over your video distribution.

The switcher is engineered with advanced HDCP and EDID management, ensuring that your content is secure and compatible with a variety of displays. The hot-swappable design allows for uninterrupted operation, even when upgrading or replacing modules. The front panel is equipped with clear, illuminated buttons and an LCD for easy switching and status monitoring, while a security lock protects your settings.

Control is made simple and efficient through IR, Ethernet, and RS-232, offering a wide range of options for third-party control systems. With 10 global presets, you can quickly configure the video and audio distribution to suit common usage patterns.

Housed in a 3 RU rack-mountable aluminum enclosure, the HDMMX1616-4K is built to last and fits seamlessly into professional environments. The dual-internal power supply supports a range from 100 to approximately 240 volts AC, 50/60Hz, ensuring reliable performance across various power sources.

The optional modular input and output cards further enhance the switcher's capabilities, with audio embedding and de-embedding options available on HDMI and HDBaseT cards. Advanced EDID management allows for audio restrictions and emulates native video data from connected displays, streamlining the audiovisual experience.

Ideal for commercial applications such as control centers, smart lecture halls, medical facilities, government operations, and residential environments where 4K UHD signal distribution is critical, the KanexPro HDMMX1616-4K is the professional choice for a future-proof and adaptable AV solution.

KanexPro Matrix Switcher Features

  • Advanced 16x16 modular matrix switcher with 4K UHD resolution capabilities
  • Supports multiple connections including HDMI, DVI, VGA, SDI, HDBaseT, and Fiber Optic
  • High-bandwidth capacity of up to 10.2 Gbps for uncompromised video quality
  • Expandable with I/O modular cards for customizable setups
  • Equipped with advanced HDCP and EDID management for secure, compatible content display
  • Features clear, illuminated buttons, LCD status display, and control via IR, Ethernet, and RS-232
  • Housed in a durable 3 RU rack-mountable aluminum enclosure with dual-internal power supply

Key Features

  • Experience seamless 4K UHD video switching with this 16x16 modular matrix!
  • Achieve reliable connections for all your devices using this video switcher.
  • Enjoy wide compatibility; this matrix supports various input/output configurations.
  • Control via Ethernet with TCP/IP for easy integration into existing systems.
  • Low latency switching ensures smooth transitions for live events and broadcasts.
  • This 4K UHD matrix offers good value, combining performance and modular design.

What's in the box:

  • KanexPro 4K UHD 16x16 Modular Matrix Switcher
  • IR Remote
  • RS232 Cable
  • Power Cable
  • 4x Modular Metal Blank
  • 4x Rubber Feet
  • Installation Guide
  • KanexPro 3 Year Parts and Labor Warranty
